Mechanical Internal and External Clamp Machine
Basic Properties
Place of Origin:
Jiangsu, China
Brand Name:
WINCOO
Trading Properties
Price:
$18,600.00/sets >=1 sets
Product Summary
WINCOO ENGINEERING CO.,LTDWincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial ...
Product Details
Condition:
New
Machine Type:
RIVETING MACHINE
Weight (KG):
200
Video Outgoing-Inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Motor
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Applicable Industries:
Manufacturing Plant, Construction Works
Showroom Location:
None
Product Name:
Pipeline Mouthpiece
Application:
Long Pipeline Construction Machinery
Keyword:
Clamp
Color:
Customer Requirement
Product Description
WINCOO ENGINEERING CO.,LTD
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.
The pneumatic internal mouthpiece produced by our company is developed by absorbing advanced technology and experience of domestic and foreign products and combining with the construction characteristics of Chinese pipeline construction enterprises. Using compressed air as power, no pollution, especially suitable for the construction of water pipelines and oil and natural gas pipelines with high environmental protection requirements. It has the advantages of reliable performance, strong adaptability, quick action, accurate matching, compact structure, simple operation and accurate clearance adjustment. Product quality and performance can be comparable to the international similar products, including clearance type pneumatic inner mouthpiece, copper shoe type pneumatic inner mouthpiece, Marine pneumatic inner mouthpiece, fill the domestic market blank.
Product Features
1. Simple structure and beautiful appearance
2. Light weight, fast walking speed, strong climbing ability, small gas consumption
3. Large support, accurate clearance adjustment, greatly improve the construction efficiency
4. The valve parts are imported, the joint is made of stainless steel material to ensure that the air path is clean, and the joint type is C-type structure to ensure reliable sealing performance
5. The walking frame is manufactured strictly in accordance with the technological tooling to ensure the performance of the walking wheel set and improve the performance of the whole machine
6. From manufacturing to installation and commissioning, the whole machine is strictly implemented in accordance with national standards and processes, ensuring that the amount of misalignment and the precision of clearance adjustment is within 0.5mm, meeting the requirements of pipeline construction standards
Product Parameters
Non-self-propelled Clamp (Manual Pulled) | ||||||||||||||||
Model | Pipe Size | Piston No.s | Piston Power | L | W | H | Weight | Cube | ||||||||
(mm) | (KN) | (mm) | (mm) | (mm) | (kg) | (m3) | ||||||||||
HGDNQ6’' | 168 | 6X2 | 134 | 1473 | 150 | 150 | 36 | 0.04 | ||||||||
HGDNQ8'' | 219 | 6X2 | 209 | 1593 | 189 | 189 | 53 | 0.06 | ||||||||
HGDNQ10’’ | 273 | 6X2 | 382 | 1665 | 240 | 240 | 60 | 0.09 | ||||||||
HGDNQ12-14'' | 305-357 | 6X2 | 405 | 1751 | 280 | 280 | 100 | 0.14 | ||||||||
Self-propelled Clamp (Travels Under Its Own Power) | ||||||||||||||||||
Model | Pipe size (mm) | Pistons (Nos) | Piston Power (KN) | Motor power (Hp) | L (mm) | W (mm) | H (mm) | Weight (KG) | Cube (M³) | |||||||||
HGDNQ16-18’’ | 406-457 | 8x2 | 959 | 1 | 2132 | 360 | 360 | 188 | .29 | |||||||||
HGDNQ20-22’’ | 508-559 | 10x2 | 1057 | 1.5 | 2434 | 480 | 480 | 296 | .59 | |||||||||
HGDNQ22-24’’ | 559-610 | 12x2 | 1268 | 1.5 | 2500 | 530 | 530 | 390 | .72 | |||||||||
HGDNQ24-26’’ | 610-660 | 12x2 | 1268 | 1.5 | 2672 | 580 | 580 | 418 | .90 | |||||||||
HGDNQ28-30’’ | 711-762 | 12x2 | 1748 | 1.5 | 2700 | 670 | 670 | 512 | 1.2 | |||||||||
HGDNQ30-32’’ | 762-813 | 14x2 | 2937 | 3 | 2938 | 690 | 690 | 733 | 1.4 | |||||||||
HGDNQ34-36’’ | 864-914 | 16x2 | 2937 | 3 | 3020 | 790 | 790 | 779 | 1.8 | |||||||||
HGDNQ36-38’’ | 914-965 | 18x2 | 2937 | 3 | 3188 | 860 | 860 | 865 | 2.4 | |||||||||
HGDNQ40-42’’ | 1016-1067 | 20x2 | 2937 | 3 | 3029 | 980 | 980 | 982 | 3.0 | |||||||||
HGDNQ46-48’’ | 1168-1219 | 20x2 | 4855 | 3 | 3100 | 1050 | 1050 | 1420 | 3.7 | |||||||||
HGDNQ48-50’’ | 1219-1270 | 22x2 | 4855 | 3 | 3517 | 1120 | 1120 | 1876 | 5.2 | |||||||||
HGDNQ52-54’’ | 1321-1372 | 22x2 | 4855 | 3 | 3520 | 1210 | 1210 | 1988 | 5.4 | |||||||||
HGDNQ56’’ | 1422 | 22x2 | 4855 | 3 | 3500 | 1310 | 1310 | 2187 | 6.6 | |||||||||
HGDNQ60’’ | 1524 | 22x2 | 4855 | 3 | 3500 | 1310 | 1310 | 2187 | 6.6 | |||||||||
HGDNQ62-66’’ | 1574-1676 | 24x2 | 4855 | 3 | 3864 | 1557 | 1557 | 2887 | 10.0 | |||||||||
HGDNQ68-72’’ | 1727-1727 | 24x2 | 4855 | 3 | 3864 | 1557 | 1557 | 2887 | 10.0 | |||||||||
HGDNQ76-80’’ | 1930-2032 | 30x2 | 4855 | 3 | 4000 | 1800 | 1800 | 3855 | 13.0 | |||||||||
Product Major Component

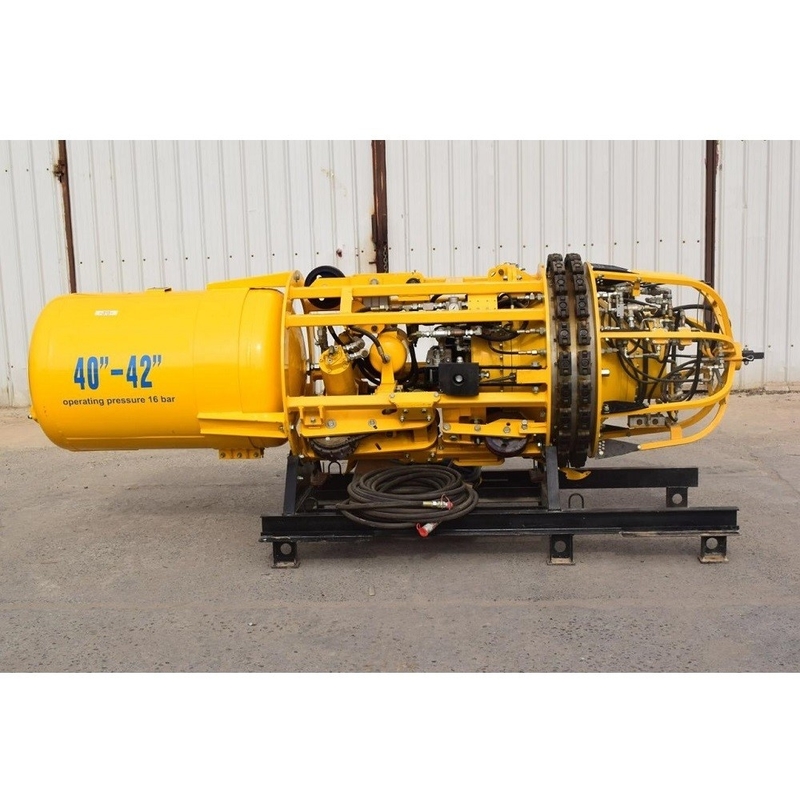

Main components of the mouthpiece: mouthpiece assembly (Swelling block), clearance cylinder, driving assembly, walking frame, walking wheel, brake assembly, gas tank, front cage frame, joystick (gas pipe), gas path assembly, etc., controlled by compressed air as power source. See the picture below.
1, Front cage frame
4, Back swelling block
2, Clearance cylinder
5, Gas path
3, Front swelling block
6, Gas tank
7, Adjustable nut
10, Brake assembly
13, Back walking wheel
8, Mouthpiece assembly
11, Walking frame
9, Front walking wheel
12, Driving assembly
Application of Major Component
A. First of all, the air compressor is connected with the joystick (gas path) and the air inlet pipe on the front cage frame with a high pressure hose and a quick joint to achieve the purpose of filling or filling air; The joystick (gas path) is then connected to the control shaft on the front cage frame by a hook.
B. The joystick (gas path) is welded by hollow steel pipe, and its function:
1, Supplementary gas volume. 2, Air path control: front row rising, front row shrinking, back row rising, back row shrinking, clearance opening, clearance closing. 3, Control the forward movement of the mouthpiece.
C. The control cable is used to control the driving walking, braking, forward and backward pointing. When walking, the forward walking cable should be tightened, and the automatic brake will be applied when it is released to prevent too fast speed when going downhill. If it is necessary to move forward, quickly tighten the cable and quickly loosen the cable to realize the point walking.
D. The gas tank is installed at the end of the mouthpiece, and its function is as follows: 1, Realize the balance of the whole machine. 2, Gas storage.
E. The mouthpiece assembly is the core part of the clamp device, which is composed of the cylinder, the distributor and two groups of swelling block (holding claw), etc., which mainly completes the matching.
