High Quality Orbital Pipe Welding Machine for Large Pipeline Construction
Product Details

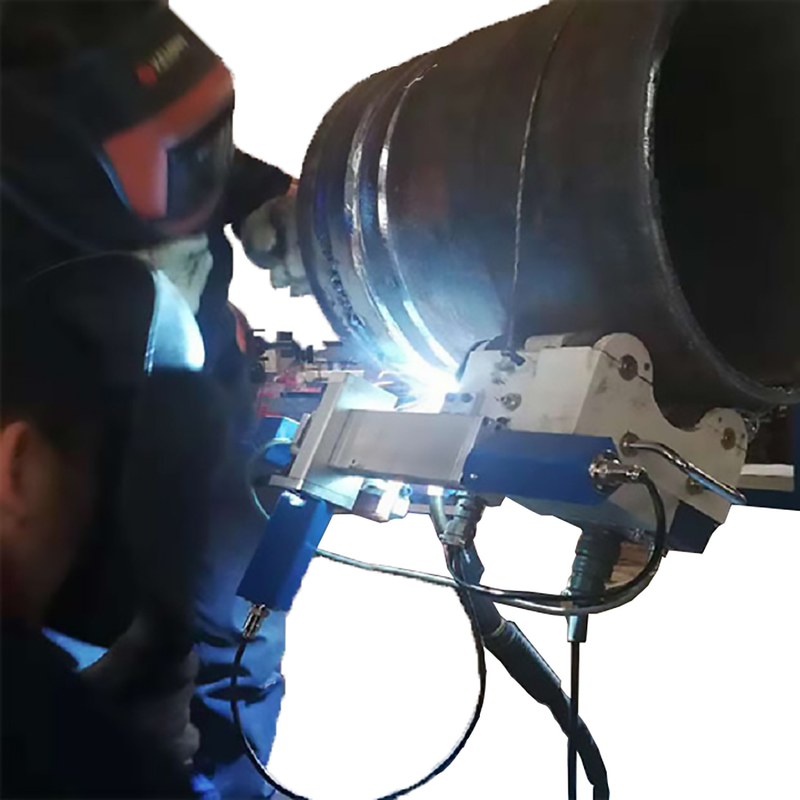

Large Pipeline Orbital Pipe Welding Machine
,High Quality Orbital Pipe Welding Machine
This robotic welding system revolutionizes pipeline construction through AI-enhanced automation, specifically developed for large-diameter, high-pressure transmission pipelines.
Technical Parameter:
| Items | Parameter | Note | |
| Tractor | Power supply | AC 220V | |
| Size | 240×330×310 | W×L×H | |
| Weight | 16Kg | Including swinger | |
| Moving mode | Four-wheel drive | Magnet-wheel | |
| Walking speed | 0∼700mm/min | ||
| Swing motor | DC24V 18RPM | ||
| Adjustable range of welding gun | Up and down | ||
| Before and after | 85mm | ||
| Operating Angle adjustment range | 360° | ||
| Carry out Angle adjustment range | 0° | ||
| Control | Operating function | Swing mode | |
| Swing speed | 0-10RPM(Show with scale) | ||
| Swing scope | 0-±10°(Show with scale) | ||
| Left and right residence time adjustment | 0-2S(Show with scale) | ||
| Central range of movement | 0-±8° | ||
| Inching wire feeding | |||
| Walking starts/stops | |||
| Welding current/voltage control | |||
| Choice of walking direction | |||
| Walking speed regulation | 0∼1000mm/min(Show with scale) | ||
| Welding/non-welding options | |||
Technical Highlights:
-
Adaptive Welding Technology
Utilizes laser vision sensing (0.02mm accuracy) and neural network algorithms to dynamically adjust welding parameters. Automatically compensates for pipe misalignment (±4mm) and variable root gaps during circumferential welding. -
Energy-Efficient Design
Hybrid power system accepts 220V-480V AC/DC input with 92% energy conversion efficiency. The compact welding head (12kg) reduces inertia during orbital rotation, enabling 360° continuous welding at 50-300mm/min speeds without repositioning. -
Advanced Process Control
-
Root pass: Pulsed TIG with arc oscillation (1.0-2.4mm wire)
-
Hot/Fill passes: Synergic MIG with 3D weaving patterns
-
Cap pass: Narrow-gap deposition technology
Real-time monitoring of penetration depth (error < ±0.5mm) prevents burn-through in thin-wall pipes.
-
Data Integration
Built-in 5G module transmits weld records (current, speed, thermal profiles) to cloud platforms for quality traceability. Generates ASME Section IX-compliant reports automatically -
Performance Metrics:
-
Positional welding qualification: EN ISO 15614-1
-
Deposition efficiency: 96%
-
Repeatability: ±0.15mm
-
Bead width consistency: CV<3%
Ideal for constructing pipelines in permafrost regions, seismic zones, and densely populated areas, this system achieves 98% first-pass acceptance rates while reducing labor costs by 60% compared to manual welding.
-
