Electro Gas Vertical Automatic Seam Welding Machine EGW For Construction

Name: Electro Gas Vertical Automatic Seam Welding Machine EGW For Construction
Brand: Electro Gas Vertical Automatic Seam Welding Machine EGW For Construction
SKU: Electro Gas Vertical Automatic Seam Welding Machine EGW For Construction
Rating: 5 (166 reviews)

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Electro Gas Automatic Seam Welding Machine, Vertical Automatic Seam Welding Machine


Model NO.:	MEGW/FCAW-I	Type:	Middle Pressure Storage & Transportation Equipment
Storage Objects:	Solid, Liquid, Gas	Engineer Oversea Service Is Available:	99% Qualified First X-ray Test
Transport Package:	Container	Specification:	SGS, ISO9001, CE
Trademark:	WINCOO	Origin:	Nanjing, China
HS Code:	851531900	Supply Ability:	230 Set/Year
After-sales Service:	Remote Instruction	Warranty:	90 Days
Condition:	New	Customized:	Customized
Certification:	ISO9001, TUV	Tank Marerial:	Metal Tank
Customization:	Available \| Customized Request

Model NO.:	MEGW/FCAW-I
Type:	Middle Pressure Storage & Transportation Equipment
Storage Objects:	Solid, Liquid, Gas
Engineer Oversea Service Is Available:	99% Qualified First X-ray Test
Transport Package:	Container
Specification:	SGS, ISO9001, CE
Trademark:	WINCOO
Origin:	Nanjing, China
HS Code:	851531900
Supply Ability:	230 Set/Year
After-sales Service:	Remote Instruction
Warranty:	90 Days
Condition:	New
Customized:	Customized
Certification:	ISO9001, TUV
Tank Marerial:	Metal Tank
Customization:	Available \| Customized Request

Electro Gas Vertical Automatic Seam Welding Machine EGW For Construction

AUTOMATIC TANK VERTICAL UP WELDING MACHINEI.Product description

For the tank welding machine, we has been sold more than 20 countries in more than 1000 projects sites.We have confidence for the machine quality and after sale service. We can provide single side, double side crude oil, LNG tank, fuel tank, water tank horizontal seam, vertical seam and bottom plate/corner welding machine.In Middle East, we have sold to UAE, Saudi Arabia, Oman, Bahrain, Kuwait. In Africa, we have sold machine to Cameron, Sudan, Egypt, Senegal, Nigeria,Zambia,Ethiopia,Senegal,etc. We have sold to vietnam, Indonesia , Malysia,Philippines,Singapore, Mexco,Mogulia, Russia,etc
I.Specification

Parameters	Data	Welder type	Suitable for tanks
Min Diameter	4.5m	Single Sided Girth Welder	top to bottom and bottom to top way, two function way
Plate Width	1.4-3.2m	Double Sided Girth Welder	can be splited into two girth seam weder, can work with jacks after split
Plate Thickness	8-45mm	Girth Welder for LNG/LPG Tank	top to bottom and bottom to top way, two function way
Construction Method	Top to Bottom&Bottom to Top	Girth and vertical seam MIG/MAG welder	top to bottom and bottom to top way, two function way
Welding Speed	300-500mm/min	Vertical EGW (electric gas welding)	top to bottom and bottom to top way, two function way
Fast Speed	2650mm/min	Butt&corner welder	bottom plate and corner seam

II,Prameter

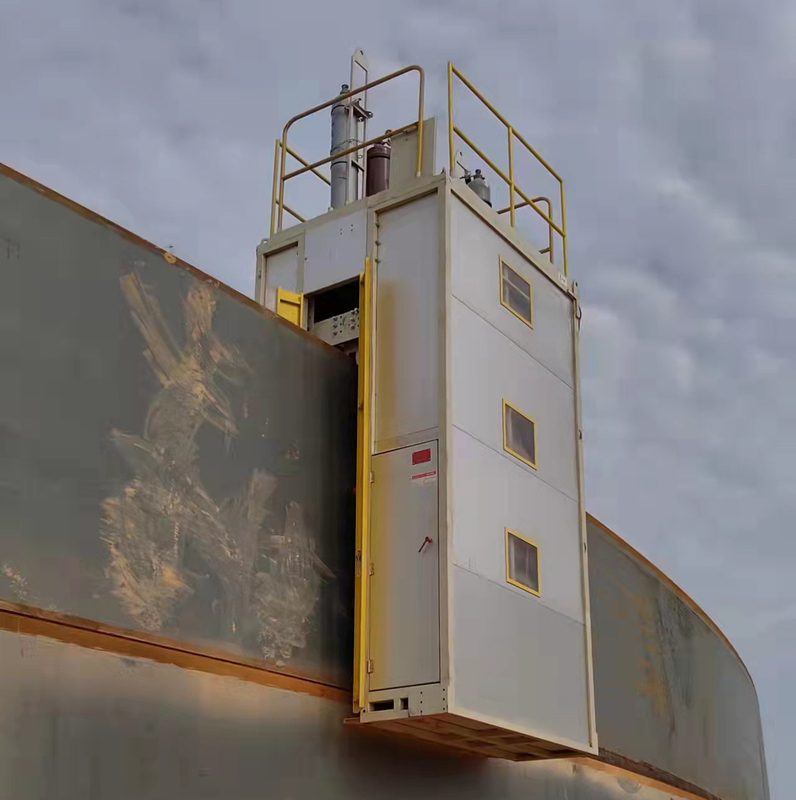

Vertical seam welding machine

Welding Process	:	Electrogas welding
Model	:	WEGW-I
Plate Thickness	:	8 - 45mm
Plate Material	:	Carbon steel
Groove	:	Single V groove Double V groove
Seam Position	:	Vertical Weld /3 G welding
Min Tank Diameter	:	Φ6.0m
Plate Width	:	1.6 - 3.0m (Can be customized )
Power Input	:	380V/3PH/50HZ (Can be customized )
Erection Method	:	Bottom To Top and bottom to top
Dimension(L x W x H)	:	4000mm x 1900mm x 1100mm
Gross Weight	:	1200kg

III.ModelIV.Photo

New type Machines for UAE client

Vertical seam welding machine in Senegal

Client visit China project site
vertical seam welding machine in Egypt

Vertical seam welding machine in Singapore

IV.Company Introduction

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.

V, What we can bring to you?

1, Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2, We can provide all technical documents and advices to support you for construction procedure clearifications
3, We can support you to calculate the roughly construction time based one welding efficiency, the calculation of manpower needed, welding consumbles quantity
4, We can provide your suitable welding consumbles with much more competetive price from our long time business partner if you need.
5, We can provide site people training service, and operation service or manpower service or as a subcontractor.
