PLC Control Heavy-Duty Pipeline Orbital Welding Crawler Machine
Product Details
Product Introduction

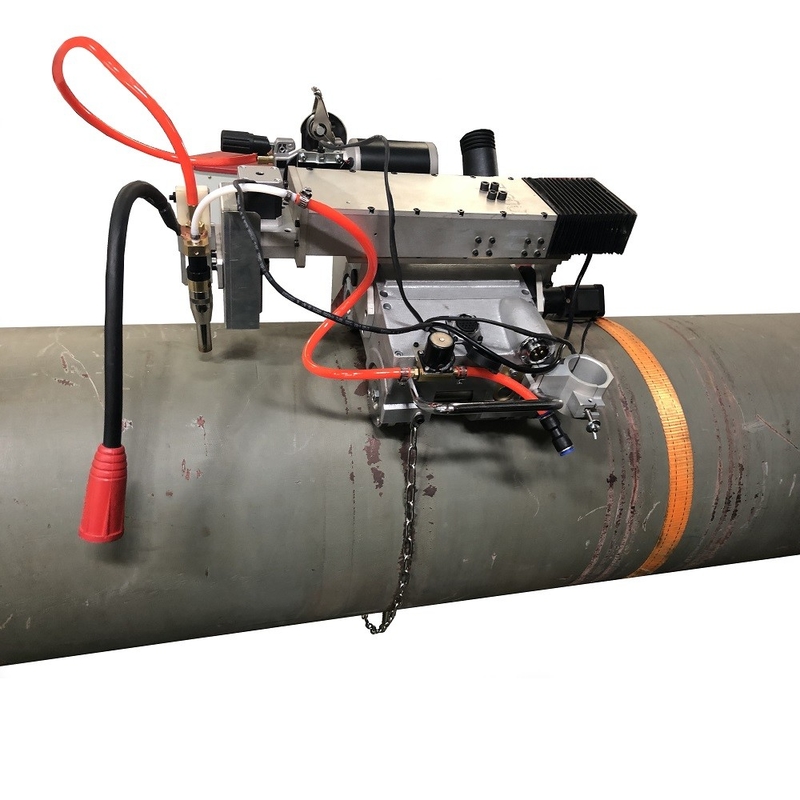

The WINCOO orbital welding machine is an autonomous, PLC-driven welding crawler engineered for high-precision circumferential welding of large-diameter pipelines (≥12") in field construction and cross-country projects. Its intelligent Siemens PLC integrates motion control, welding parameter management, and real-time seam tracking to execute flawless all-position welds (1G–6G) without pipe rotation.
Key Parameters
| Category | Specifications |
|---|---|
| Pipe Compatibility | Diameter: 12–60 inches (300–1500 mm) • Wall Thickness: 6–40 mm |
| Welding Process | GMAW (MIG/MAG), FCAW • Dual-wire capability |
| Travel Speed | 50–350 mm/min (programmable) |
| PLC System | Siemens S7-1200 with 10" HMI touchscreen • Cloud connectivity for data logging |
| Power Supply | 380–480V AC • 350A output (100% duty cycle) |
| Weight | 28 kg (with magnets) • Payload capacity: 15 kg |
| Positioning Accuracy | ±0.2 mm (laser seam tracking) • Arc length control: ±0.1 mm |
Core Features
-
Smart PLC Architecture
-
Unified control of travel speed, oscillation width, voltage, and wire feed.
-
Stores 200+ welding procedures (WPS) with automatic parameter interpolation.
-
-
All-Position Stability
-
Electromagnetic adhesion (1,500 N holding force) for vertical/overhead welding.
-
Gyro-stabilized torch head compensates for gravitational drift.
-
-
Advanced Sensing Suite
-
Laser vision joint tracking + through-arc monitoring for root-pass consistency.
-
Real-time defect detection (undercut, porosity) with audio-visual alerts.
-
-
Ruggedized Design
-
IP65-rated enclosure (dust/water-resistant) • Operates in -20°C to 50°C.
-
Quick-change track modules for pipe diameter transitions.
-
-
-
Applications
-
New Construction: Girth welding of API 5L X70/X80 pipes in oil/gas transmission lines.
-
In-Service Welding: Hot-tap and repair welding on live pipelines.
-
Lay Barge Operations: Offshore pipe-laying with saltwater corrosion-resistant components.
-
-
-
Flexible Rail Arc Welding Machine Tank All Position Construction Machinery Welder
Flexible Rail Arc Welding Machine Tank All Position Construction Machinery Welder The WINCOO WHI-Ⅲ (WHL-Ⅲ) Flexible Rail Arc Welding Machine is a portable, high-precision automatic welding system specially designed for all-position welding of large storage tanks, pressure vessels, pipelines and steel structures. With its innovative flexible rail design, this welding tractor can follow straight, curved and circular seams freely, perfectly solving the problem of on-site all -
Premium MIG Welding Carriage with Oscillator Flexible Rail and Digital Control Panel for Pressure Vessels
Automated MIG welding carriage with oscillator for tanks & vessels. Features 5 welding techniques, 0-30mm adjustable width, CNC precision, and memory function. Boosts efficiency, reduces labor, and ensures uniform welds. -
High Capacity Tank Welding Machine Suitable for Seam Welding and Structural Metal Fabrication in Industrial Environments
Factory-direct MIG welding trolley with track for horizontal/vertical welding. Features 5 welding techniques, 0-30mm weld width, digital control with memory, and CNC precision. Includes toolbox, universal compatibility, and easy operation to reduce labor costs and improve weld quality. -
Flexible Rail MIG Welding Trolley with Digital Control Panel and Adjustable Welding Speed for Large Pipelines
MIG welding trolley for large pipelines with 5 welding techniques, digital control, and flexible/straight track options. Features CNC precision, memory function, and toolbox for efficient, high-quality welds. Reduces labor costs and improves productivity.
