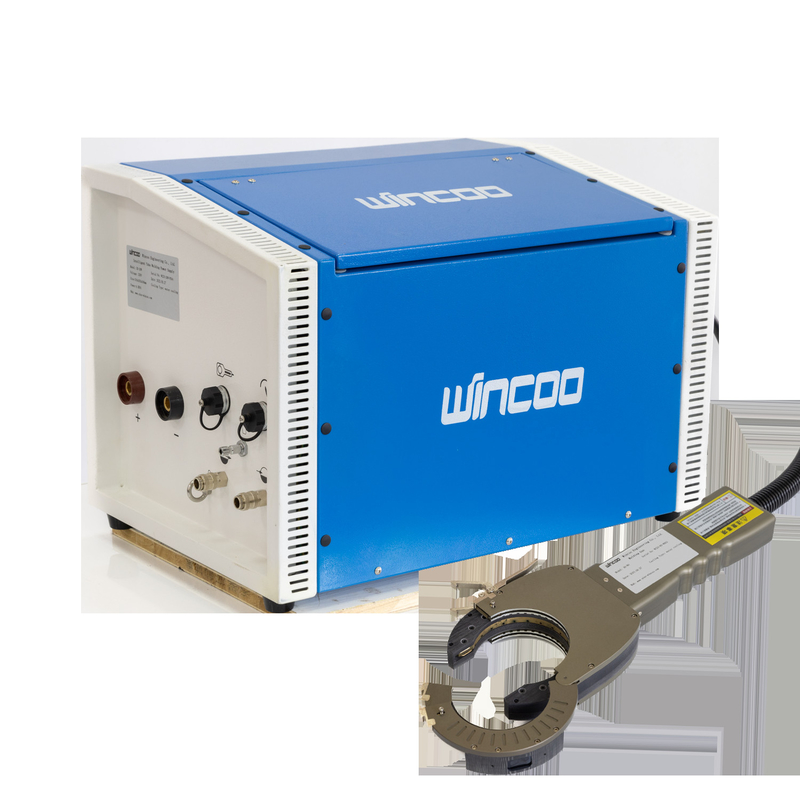

High Precision All Position Tube to Tube TIG Welding Machine

Place of Origin:CHINA
Brand Name:WINCOO
Certification:CE
Model Number:WQ-III
Minimum Order Quantity:1
Price:USD 5000~12000 1 SET
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Supply Ability:300 sets 1 month
Product Details
Highlight:

Tube to Tube TIG Welding Machine

,

High Precision TIG Welding Machine

,

All Position TIG Welding Machine
Voltage: 220V,380V,220V/380V,230V Or 115V/230V,440V
Usage: Welding,copper,MMA ARC Welding Machine,tig Welding Machine,aluminum
Power(W): 7.9KW,can Be Customized,13KVA,5.4 KVA,7.4kva/10kva
Condition: New
Warranty: 1 Year,ONE YEAR,12 Months,2 Years,18 Months
After-Sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available,Video Technical Support,Online Support,No Overseas Service Provided
Motor Type: DC MOTOR,AC Motor,Stepper Motor,orbital Tig Welding Machine,IGBT
Arc Current: 200A,10-200A,160,depending On The Power Transformer,140
Color: Red,Orange,blue,Optional,yellow
Product Description

All-position TIG pipe welding is a high-precision welding technique widely used in industries requiring stringent quality standards, such as power plants, oil and gas pipelines, and chemical processing. This method combines the stability of TIG welding for root passes with efficient filler and capping layers using processes like MAG (Metal Active Gas) or automated systems, ensuring both quality and productivity.

High Precision All Position Tube to Tube TIG Welding Machine 0

Key Parameters​

Model XD-5H XD-10H XD-40 XD-80 XD-120 XD-170
Main distribution power supply XD-20W
Weldable material Carbon   steel, stainless steel, titanium alloy, etc
Weld pipe diameter range(mm) 3.175-15.88 6.35-25.4 6.35-38.1 10-76.2 19-114.3 38.1-168
Thickness(mm) 0.5-1.5 0.5-2.0 2.5 3 3 0.5-3.0
Welding gun cooling mode water-cooling
Welding gun rotation speed(rpm) 0.6-9.0 0.6-9.0 0.16-2.8     0.1-1.8 0.1-1.8 0.1-1.8
Welding gas argon
Weight(kg) 1.3 1.8 3.5 5 6.5 9.5
Size(mm) 155*70*50 170*100*55 377*129*42 438*155*44 540*195*54 620*290*65

Advantages

  • High-Quality Welds: Excellent arc stability and inert gas shielding minimize defects like porosity, ensuring compliance with RT (radiographic testing) and PT (penetrant testing) standards.

  • Versatility: Suitable for thin to thick-walled pipes (e.g., 0.1–100 mm) and materials like stainless steel (e.g., 0Cr18Ni9), aluminum, and nickel alloys.

  • Automation Efficiency: Reduces reliance on skilled labor, with pre-programmed parameters ensuring consistency in complex positions (e.g., horizontal fixed pipes).

Application Scenarios

  • Power Plants: Critical for welding high-pressure stainless steel pipelines (e.g., φ530 mm × 11 mm pipes in lubrication systems).

  • Oil and Gas: Field welding of long-distance pipelines (DN ≥ 114 mm, wall thickness ≥5 mm) using portable automated systems.

  • Chemical Processing: Corrosion-resistant alloy piping requiring precision and repeatabilityHigh Precision All Position Tube to Tube TIG Welding Machine 1 High Precision All Position Tube to Tube TIG Welding Machine 2

Application Scenarios

  • Power Plants: Critical for welding high-pressure stainless steel pipelines (e.g., φ530 mm × 11 mm pipes in lubrication systems).

  • Oil and Gas: Field welding of long-distance pipelines (DN ≥ 114 mm, wall thickness ≥5 mm) using portable automated systems.

  • Chemical Processing: Corrosion-resistant alloy piping requiring precision and repeatability.
