Large Size Pipeline Orbital Welding Machine with PLC Control

Name: Large Size Pipeline Orbital Welding Machine with PLC Control
Brand: Wincoo Engineering Co., Ltd.
SKU: WQ-III
Price: 3,240.00 USD
Availability: InStock

Place of Origin:CHINA

Brand Name:WINCOO

Certification:CE

Model Number:WQ-III

Minimum Order Quantity:1 set

Price:USD+1800~4680+set

Payment Terms:L/C, D/P, T/T

Supply Ability:100 set/month

Product Details

Applicable Industries: Manufacturing Plant, Construction Works

Marketing Type: New Product 2020

Condition: New

Welding Process: Orbital Welding

Material: Steel

Welding Torch: TIG Torch

Type: Orbital Welding Machine

Cooling Method: Water Cooling

Shape Of Tube: Round

Control System: PLC

Weight: 16

Welding Speed: 1-10 RPM

Showroom Location: None

Diameter Range: 2-48 Inches

Product Description

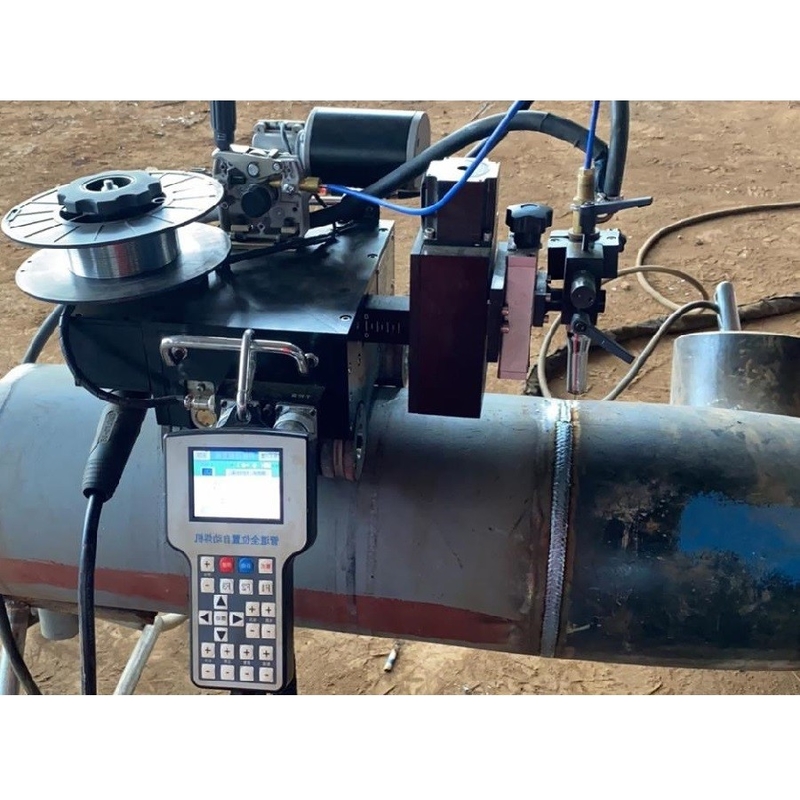

BH-PAW-150 Pipeline all-position automatic welding machine is divided into rail type and trackless type. The trackless type adopts magnetic absorption on pipeline,and automatically crawls along the welding path during welding.The installation,use and disassembly can be completed quickly and conveniently. Rail type is mainly used for welding stainless steel or non-magnetic adsorption pipeline, the track specifications according to the welding needs to be customized;

Large Size Pipeline Orbital Welding Machine with PLC Control 0

Pipelines all position automatic welding machine is widely used in petroleum, petrochemical, chemical, thermal, gas, Marine engineering, municipal pipelines all position automatic welding in all walks of life, such as using pipe fixed tube, welding carriage to walk the way of all position automatic welding, the welding process with high efficiency and low cost of melting polar gas shielded welding;

Large Size Pipeline Orbital Welding Machine with PLC Control 1

All-position welder is mainly characterized by light and portable design, especially suitable for automatic pipe welding on the construction site, with the characteristics of easy to learn, fast welding speed, high production efficiency, good welding mechanical properties, low labor intensity and so on;

Large Size Pipeline Orbital Welding Machine with PLC Control 2

Workpieces applicability is wide and more than 150 mm diameter Φ pipes are applicable, without welding thickness limitation in theory, thick tube can use multilayer multiphases welding, welding such as: pipe - weld pipe, pipe, elbow, tee.

Diameter of pipe	≥Φ150mm
Structural style	Magnetic trackless or trackless (material for welding that cannot be magnetically adsorbed)
Trolley drive	Constant torque motor + worm gear and worm drive
Trolley walking speed regulation mode	LCD screen setting + soft button adjustment
Move speed	290mm/min
Welding speed	50-290mm/min;Stepless speed regulation
Swing drive	Stepper motor + planetary reducer + linear slide rail
Swing trajectory	Set according to welding requirement
Swing adjustment mode	LCD screen setting + soft button adjustment
Swing left and right to adjust the stroke	78mm
Swing range	0.5mm
Max swing	30mm
Swing frequency	20~60 times/min
Duration of stay (left, right)	0~3 seconds
Swing fine-tuning offset equivalent	0.1~0.5mm adjustable
Welding gun up and down adjustment stroke	128mm
Up and down electric adjustment	58mm
Up and down manual adjustment	70m
Weight of trolley	26KG
Power of trolley	120W
Drive power source	AC 24V

Apply to the workpiece
Suitable material	Carbon steel, stainless steel, alloy steel, low temperature steel, etc. Non-magnetic material should be equipped with trolley track
Thickness	3-30 mm
Diameter	≥150 mm
Applicable wire	Solid wire or flux-cored wire, welding wire diameter Φ 1.0 1.6 mm
Applicable position	Full position welding of pipeline, including filling and capping; If argon arc welding is required, it shall be done by manual
Application weld joint	Pipe - weld pipe, pipe, elbow, tee
Applicable conditions	All kinds of long distance pipeline welding joints, thermal pipe welding joints buried pipe or process pipe welding joints,whether indoor or outdoor can be safe operation
Applied environment
Location	Indoor and outdoor
Environment tempera ture	-20ºC--45ºC
Ambient humidity	20-90% (no dew)
Shielding gas	CO2 or 80% Ar+20%CO2 mixture
The welding quality
Appearance of weld molding, no porosity, slag inclusion, incomplete fusion and other phenomena
To meet the requirements of pressure test, impact test, tensile test, bending test and other mechanicalproperties
Welding process
CO2 or Ar and CO2 mixed gas shielded welding, solid wire or flux cored wire welding

Plasma Pipe Cutter

Hydraulic Pipe Cutter

Cold Cutting Machine

Tank Girth Welding Machine equipped with robot welding gun and integrated control reducing messy lines for and stable welding process

Tank Girth Welding Machine with Robot Welding System Advanced tank girth welding machine equipped with robotic welding gun and integrated control system, designed to eliminate messy wiring and ensure stable, high-quality welding processes. Product Design Features Sliding track utilizes precision linear rails from advanced machine tools, providing zero-clearance operation, smooth running without sticking or deformation, and enhanced machine integrity All directional adjustment

Video

Tank Girth Welding Machine for steel pipelinne construction with soft rail and straight rail

Tank Girth Welding Machine for Steel Pipeline Construction Professional welding machine designed for steel pipeline construction, available with both flexible rail and straight rail configurations for versatile application. Design Features Linear motion guide track system with zero clearance operation, ensuring smooth running without sticking or deformation High-precision screw pitch adjustments for faster, more stable, and accurate positioning All components processed by

MZ-1250 Automatic Submerged Arc Welding welding Car with IGBT inverter for pipeline installation.

MZ-1250 Automatic Submerged Arc Welding Car with IGBT Inverter for Pipeline Installation The MZ-1250 Automatic Submerged Arc Welding Car is advanced industrial welding equipment designed for precision welding in pipeline installation applications. Featuring IGBT inverter technology, this system delivers exceptional performance and reliability for demanding welding operations. Product Overview This state-of-the-art automatic welding equipment is engineered for exceptional

Submerged Arc Welding Machine for Shipbuilding, Containers, Construction Machinery, Petrochemical, Steel Structures

Submerged Arc Welding Machine Professional submerged arc welding equipment designed for demanding industrial applications including shipbuilding, container manufacturing, construction machinery, petrochemical facilities, and steel structures. Technical Specifications Model MZ-1250 Input Voltage AC380±10% Three-phase Frequency 50/60 Hz Rated Capacity 66 KVA Rated Input Current 94A Current Regulation Range 60-1250 A Load Duty Cycle 100% No Load Voltage Submerged Arc Welding:
