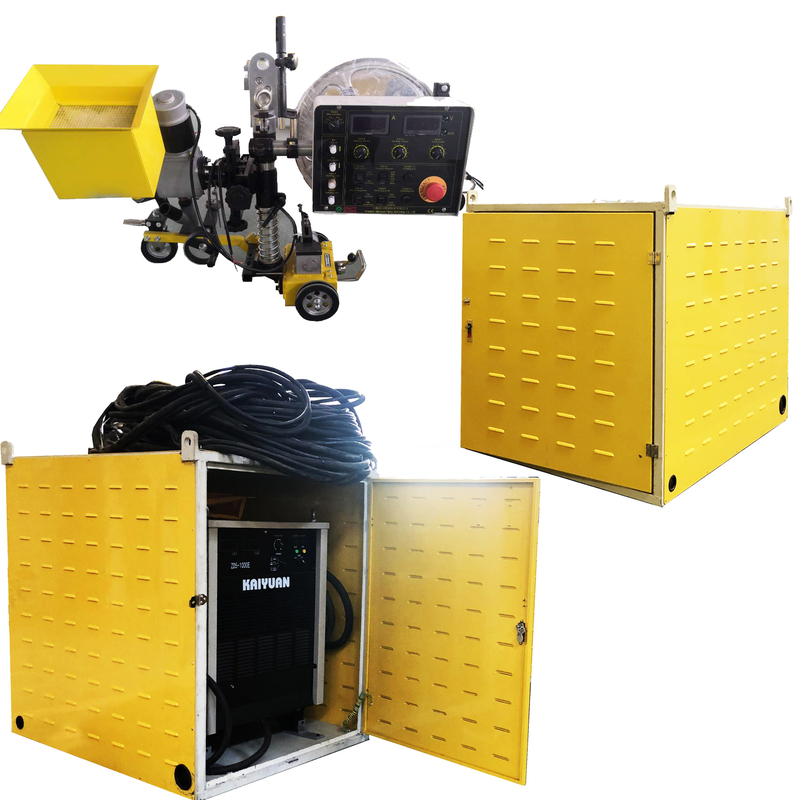

Portable Tank Corner Welding Machine 100-1000A 220V/380V
Basic Properties
Place of Origin:
CHINA
Brand Name:
WINCOO
Certification:
CE
Model Number:
MLTW-P/J
Trading Properties
Minimum Order Quantity:
1 set
Price:
USD+1200~2080+set
Payment Terms:
L/C,D/P,T/T
Supply Ability:
100 set/month
Product Summary
High Efficiency Tank Bottom Plate Seam and Fillet Welding Machine Product Specifications Attribute Value Welding Angle 0-90 degrees Welding Currency 100~1000A Cooling Way Air Cooling Weight 50 kg Electric Current Inverter Welding Thickness 3-30 mm Power Source Electric Voltage 220V/380V Material ...
Product Details
Highlight:
Portable tank welding machine 220V/380V
,Tank corner welder 100-1000A
,Butt and fillet welding tractor
Welding Angle:
0-90 Degrees
Welding Currency:
100~1000A
Cooling Way:
Air Cooling
Weight:
50 Kg
Electric Current:
Inverter
Welding Thickness:
3-30 Mm
Power Source:
Electric
Voltage:
220V/380V
Material:
Steel
Keywords:
Tank Corner Welding Machine
Frequency:
50/60 Hz
Style:
Portable
Dimensions:
800x500x600 Mm
Usage:
Carbon Steel Welding
Origin:
Nanjing, China
Product Description
High Efficiency Tank Bottom Plate Seam and Fillet Welding Machine
Product Specifications
| Attribute | Value |
|---|---|
| Welding Angle | 0-90 degrees |
| Welding Currency | 100~1000A |
| Cooling Way | Air Cooling |
| Weight | 50 kg |
| Electric Current | Inverter |
| Welding Thickness | 3-30 mm |
| Power Source | Electric |
| Voltage | 220V/380V |
| Material | Steel |
| Frequency | 50/60 Hz |
| Style | Portable |
| Dimensions | 800x500x600 mm |
| Usage | Carbon Steel welding |
| Origin | Nanjing, China |
Product Overview
Modern Tank Corner Fillet Welding Systems integrate robotics with precision welding technology to automate critical joint welding in tank construction. These self-tracking units magnetically adhere to tank surfaces, using servo-driven carriages to maintain optimal torch angle and arc length.
Technical Parameters
| Welding Modes | Pulsed MIG, Standard GMAW |
| Torch Oscillation | ±15mm programmable weave |
| Track Width | Adjustable 50-300mm rail system |
| Wire Feed | 4-roll, 24m/min capacity |
| Connectivity | Wi-Fi/Bluetooth for remote control |
| Environmental Rating | IP23 (dust/splash resistant) |
| Thickness Range | 4mm-25mm (single-pass) |
Key Features
- Precision: Laser-guided alignment eliminates miswelds
- Reduced Rework: Near-zero porosity/undercut defects
- Labor Savings: 1 operator manages multiple units
- Documentation: Integrated data logging for QA compliance
- Versatility: Welds convex/concave corners (e.g., dished ends)
Industrial Applications
- LNG Storage: Cryogenic tank circumferential joints
- Mining: Slurry tank fabrication
- Food & Pharma: Hygienic stainless steel vessel welding
- Infrastructure: Water tower maintenance/repair
Operational Benefits
This high-efficiency tank angle welder ensures tightness and stability of tanks while improving production efficiency and quality. Its precision operation reduces production costs significantly. Selecting this accurate and stable welding system positively impacts production output and economic benefits for industrial operations.
