WINCOO Standard Electrogas Welding (EGW) System for API Tanks
Basic Properties
Place of Origin:
CHINA
Brand Name:
WINCOO
Certification:
CE
Model Number:
MSHW
Trading Properties
Minimum Order Quantity:
1 unit
Price:
USD 5000~12000
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Supply Ability:
20 unit/month
Product Summary
WINCOO Standard Electrogas Welding (EGW) System for API Tanks Model NO. MSHW Keywords Tank Vertical Welding Machine Plate Thickness 8~45mm Plate Material Carbon Steel, Stainless Steel Welding Process Saw Transport Package Container Specification SGS, ISO9001, CE Trademark WINCOO Origin Nanjing, ...
Product Details
Model NO.:
MSHW
Keywords:
Tank Vertical Welding Machine
Plate Thickness:
8~45mm
Plate Material:
Carbon Steel, Stainless Steel
Welding Process:
Saw
Transport Package:
Container
Specification:
SGS, ISO9001, CE
Trademark:
WINCOO
Origin:
Nanjing, China
HS Code:
851531900
Supply Ability:
230 Set/Year
Cooling Way:
Water Cooling
Control:
Semi-Automatic
Style:
Hanging
Frequency Range:
Intermediate Frequency
Electric Current:
Inverter
Type:
Continuous Seam Welder
Customization:
Available | Customized Request
Product Description
WINCOO Standard Electrogas Welding (EGW) System for API Tanks
| Model NO. | MSHW |
|---|---|
| Keywords | Tank Vertical Welding Machine |
| Plate Thickness | 8~45mm |
| Plate Material | Carbon Steel, Stainless Steel |
| Welding Process | Saw |
| Transport Package | Container |
| Specification | SGS, ISO9001, CE |
| Trademark | WINCOO |
| Origin | Nanjing, China |
| HS Code | 851531900 |
| Supply Ability | 230 Set/Year |
| Cooling Way | Water Cooling |
| Control | Semi-Automatic |
| Style | Hanging |
| Frequency Range | Intermediate Frequency |
| Electric Current | Inverter |
| Type | Continuous Seam Welder |
| Customization | Available |
Product Introduction

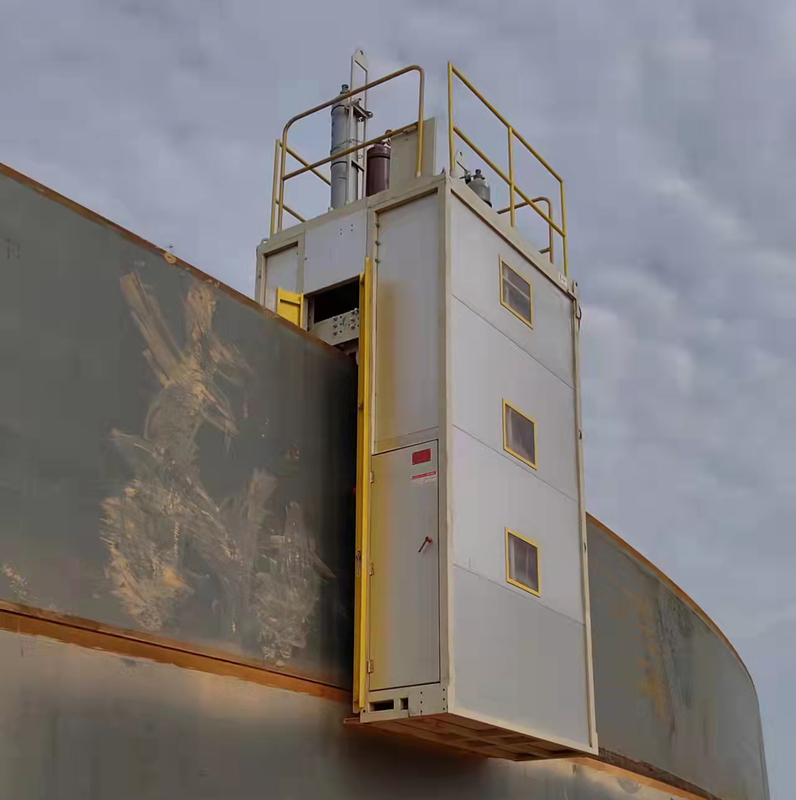

The WINCOO Standard Series is a purpose-built vertical welding system for fabricating the longitudinal seams of large aboveground storage tanks (ASTs). Utilizing the Electrogas Welding process, it creates high-integrity, single-pass welds in thick plate (typically 9-40mm) with exceptional deposition rates. The system operates vertically upwards using sliding copper shoes to contain the molten weld pool and shielding gas, ensuring X-ray quality joints for critical storage applications like oil, chemicals, and water tanks compliant with API 650/653 standards.
Key Specifications
| Welding Process | Electrogas Welding (EGW) |
|---|---|
| Plate Thickness | 9 mm - 40 mm (0.35" - 1.57") |
| Weld Length | Up to 15 m (49 ft) per seam |
| Deposition Rate | 12 - 18 kg/h (26 - 40 lbs/h) |
| Wire Diameter | 1.6 mm, 2.0 mm, 2.4 mm |
| Voltage/Current | 30-45V DC / 350-600A |
| Shielding Gas | CO₂ or Ar/CO₂ Mix (80/20) |
| Control System | Digital PLC with HMI Touchscreen |
| Power Supply | 480V AC, 3-Phase, 100 kVA |
| Weight (Travel Head) | 120 kg (265 lbs) |
Key Features
- High Deposition Efficiency: Single-pass welding eliminates multi-layer processes, reducing labor by 70%.
- Exceptional Quality: Copper shoes ensure smooth weld profile & minimal spatter; ideal for X-ray/UT inspection.
- Automated Operation: PLC-controlled travel speed, voltage, and wire feed for consistency.
- Rigid Guidance System: Precision rails ensure vertical alignment over full seam length.
- Quick-Setup Shoes: Interchangeable copper shoes adapt to plate thickness changes.
- Gas Containment: Integrated gas chambers maintain optimal shielding atmosphere.
Application Scenarios
- Longitudinal seams in crude oil/fuel storage tanks (API 650).
- Water reservoir tanks (>10,000 m³ capacity).
- Chemical storage tanks (acid, alkali, ethanol).
- Tank refurbishment (API 653 repairs).
- Power plant surge tanks & penstocks.
