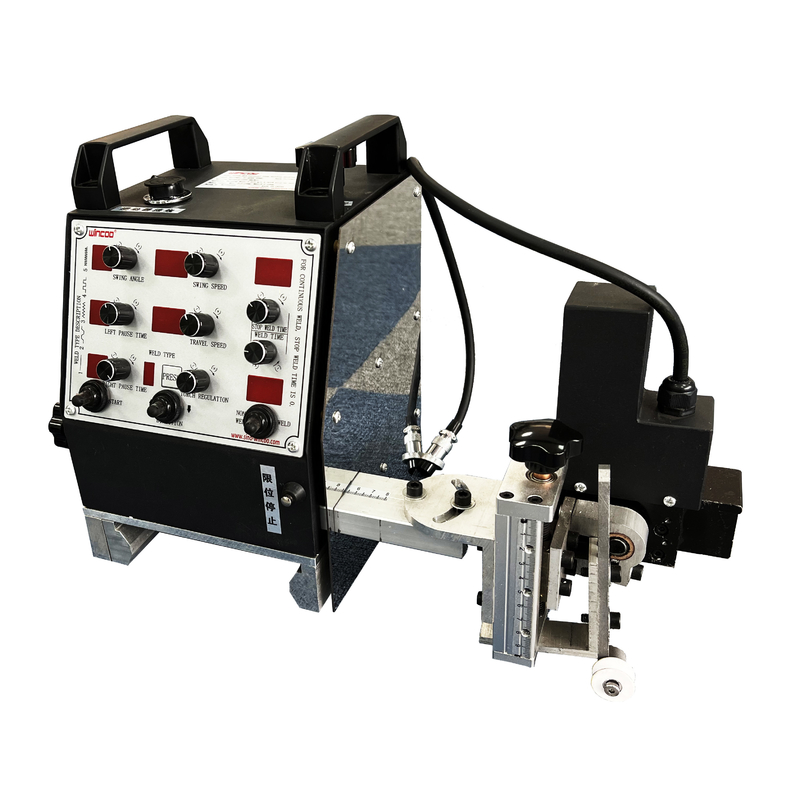

Portable Tank Horizontal and Vertical Seam Welding Machine with Flexible Rails

Name: Portable Tank Horizontal and Vertical Seam Welding Machine with Flexible Rails
Brand: Wincoo Engineering Co., Ltd.
SKU: WHL-III
Price: 3,240.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: WINCOO

Certification: CE

Model Number: WHL-III

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD+1800~4680+set

Packaging Details: Export package

Delivery Time: 30 days

Payment Terms: L/C,D/P,T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:

After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support	Voltage:	380v/50hz Or Customized
Usage:	Carbon Steel Welding,seam Welding Of Metal Material.	Certification:	CE,CCC

After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support
Voltage:	380v/50hz Or Customized
Usage:	Carbon Steel Welding,seam Welding Of Metal Material.
Certification:	CE,CCC

Portable Tank Horizontal and Vertical Seam Welding Machine with Flexible Rails

Product Attributes

After-sales service provided	Engineers available to service machinery overseas, Video technical support
Voltage	380v/50hz or customized
Usage	Carbon Steel welding, seam welding of metal material
Certification	CE, CCC

Product Overview

The WHL-III is a versatile and lightweight automated welding machine designed for rapid deployment and flexibility on medium to large tank projects. It excels in environments where ease of handling, quick setup, and adaptability to different welding processes (SAW, FCAW, GMAW) are key priorities.

Technical Specifications

Welding Process	Multi-process capable - SAW, FCAW (Gas-shielded & Self-shielded), GMAW (MIG)
Tank Diameter Range	200 - 1000 mm/min (8 - 40 in/min), wide range
Drive System	Compact, high-grip rubber tracks with versatile clamping (mechanical clamps standard, optional magnets)
Weight	~80 kg (176 lbs) - significantly lighter than heavy-duty models
Control System	Simple, robust digital control box with essential functions (speed, start/stop); optional basic remote
Power Source Compatibility	Wide range (200A - 650A typical for processes); standard interfaces
Welding Head	Compact design with manual adjustments. Optional limited oscillation (±25mm / ±1")
Track System	Lightweight aluminum modular tracks

Key Features

Application Scenarios

Fabrication of medium-sized storage tanks (e.g., 10,000 - 50,000 barrels) for fuel oil, water, ethanol, or industrial chemicals
Construction of bolted tank conversions to welded tanks
Field erection projects where portability and quick setup are crucial
Tank repair and maintenance work (internal or external circumferential welds)
Fabrication of agricultural silos and bulk material storage bins
General fabrication shops handling diverse tank and vessel projects requiring a flexible welding solution
Projects where multiple welding processes might be needed on the same tank (e.g., SAW for shells, FCAW for manways/nozzles)
