Simple and Portable Tank Circular Seam Welding Machine with Flexible Rails

Product Details

Place of Origin: CHINA

Brand Name: WINCOO

Certification: CE

Model Number: WHL-III

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD+1800~4680+set

Packaging Details: Export package

Delivery Time: 30 days

Payment Terms: L/C,D/P,T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support
Voltage:
380v/50hz Or Customized
Usage:
Carbon Steel Welding,seam Welding Of Metal Material.
Certification:
CE,CCC
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support
Voltage:
380v/50hz Or Customized
Usage:
Carbon Steel Welding,seam Welding Of Metal Material.
Certification:
CE,CCC
Simple and Portable Tank Circular Seam Welding Machine with Flexible Rails
Simple and Portable Tank Circular Seam Welding Machine with Flexible Rails
Product Specifications
After-sales service Engineers available to service machinery overseas, Video technical support
Voltage 380v/50hz or customized
Usage Carbon Steel welding, seam welding of metal material
Certification CE, CCC
Product Overview

Achieve factory-level welding precision in the field with our Automated Portable Rail Welding System for tank girth and longitudinal seams. This sophisticated yet user-friendly system combines a motorized welding carriage, robust modular rail track, and intuitive control unit into a highly portable package.

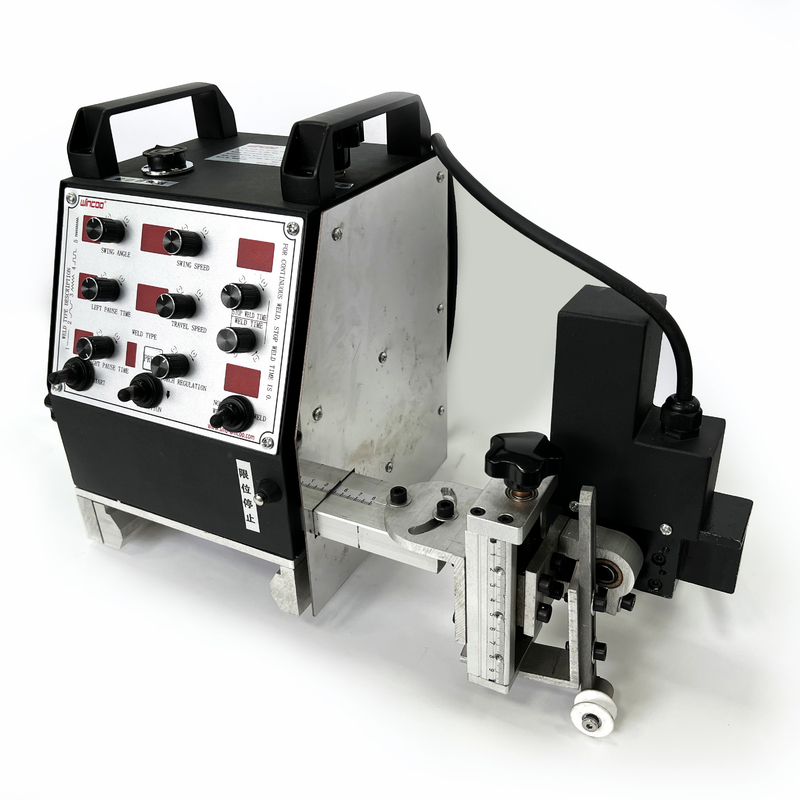

Simple and Portable Tank Circular Seam Welding Machine with Flexible Rails 0

Engineered specifically for tank fabrication and repair, it automates welding equipment travel along precise paths for both girth welds and longitudinal seams. Its portability allows deployment directly onto tank walls within minutes.

Technical Specifications
Item Parameter Note
External power source AC 220V 50/60 Hz Three-hole
Working power source AC 20V Use of each driver
Dimensions 245*520*280mm 245*520*290mm (Length*width*height)
Weight 8.6kg 10.4kg (Main engine)
Track type Linear motion guide Self-aligning flexible slide rails
Drive mode Gear drive Sprocket drive
Welding speed 0~1650mm/min Fastest
Key Features
  • High-Precision Automation: Encoder feedback and stable drive ensure exceptional travel accuracy and repeatability.
  • Optimized for Dual Seam Types: Seamless transition between welding horizontal girth seams and vertical longitudinal seams.
  • Advanced Control: User-friendly interface with clear feedback, remote operation, and programmable functions.
  • Robust Mounting: Precision tracks with powerful magnetic or vacuum clamps guarantee stability on various surfaces.
  • Integrated Design: Streamlined for easy connection of welding power, gas, and control cables.
Simple and Portable Tank Circular Seam Welding Machine with Flexible Rails 1
Key Benefits
  • Unmatched weld consistency and quality meeting ASME, API, EN standards
  • Maximized productivity with continuous high-speed travel
  • Precision reproducibility for identical weld parameters on every seam
  • Reduced operator fatigue by automating the most demanding aspects
  • Faster ROI through labor savings and reduced rework
  • Improved documentation for weld procedure qualification
Simple and Portable Tank Circular Seam Welding Machine with Flexible Rails 2
Primary Applications
  • Fabrication of API 650/653, ASME Section VIII storage tanks
  • Precision welding of pressure vessels requiring strict quality control
  • Field repair and maintenance of critical tank infrastructure
  • Process vessels in chemical, petrochemical, and pharmaceutical industries
  • Production welding in fabrication shops for tanks, stacks, and large pipes
Simple and Portable Tank Circular Seam Welding Machine with Flexible Rails 3
