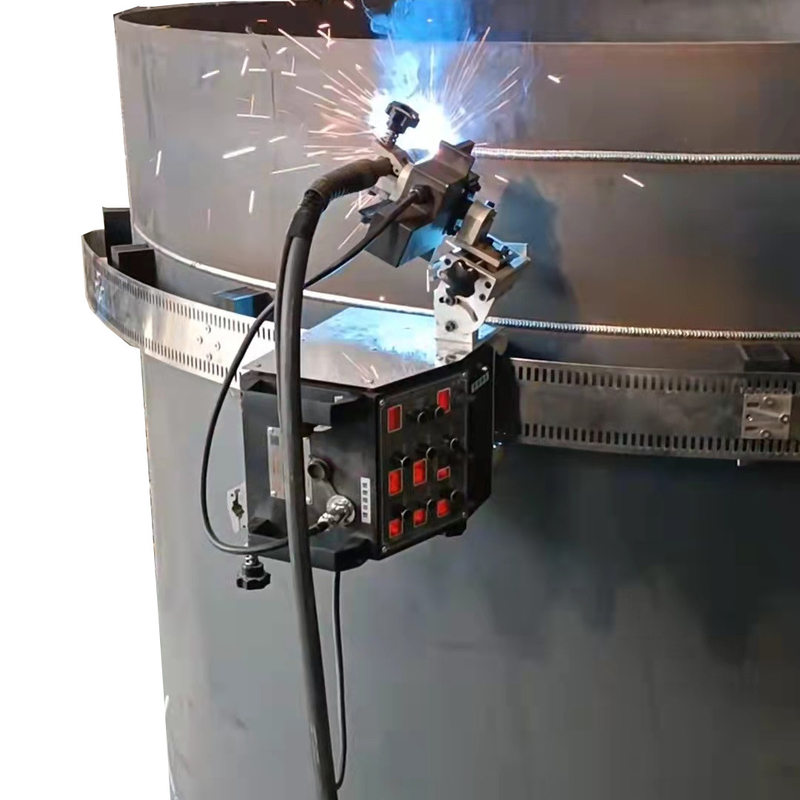

Simple Tank Welding Tractor with Straight and Flexible Track

Welding Procedure

Straight rails track:

Step 1: Use 6 M4X12 hexagon socket screw to install 3 sets of magnet seats on the track. Note that the magnet handle is in the rack direction. The track is assembled. Another set of tracks can be overlapped on the end connecting plate and used indefinitely.

Step 2: Install the welding robot host on a track from one end of the track, pay attention to the walking clutch in the open position. The clutch is in the closed position when used.

Flexible rails track:

Step 1: Mount 3 sets of magnets to 3 magnet positions in the middle of the track using 12 M6X16 flat head bolts. Tighten.

Step 2: Release the track clutch, install the welding robot on the track, close the clutch, and the host can slide on the track. Release or close the walking clutch, the main engine can run normally when in use.

Step 3:Install the pressing plate, ultra-thin flat pad and soft rail on the magnet aluminum block with 3 M6X16 flat bolts in turn, tighten and assemble the track. Another set of track ends can be inserted under the platenfor infinite circulation.

Step 4:Adjust the external auxiliary to a reasonable height, the external auxiliary has been sliding on the welding gun to support during welding, can effectively prevent the welding gun high and low or shake.

Common installation

1. Attach the torch to the clip and tighten it.

2. Attach the torch to the clip and tighten it. Install the welding control wire (gun end) here and tighten it.

3. Install the welding handle control cable (tail) on the power box (left), install the wire feeder control cable on the power box (right), and tighten it.

4. Strip the 2 wires of the wire feeder control welding handle, screw or weld the conversion joint to the original control line, stick the insulation tape, install the wire feeder control plug on the power supply box to the conversion joint, perfect solution. The power plug of the power box is connected to AC220V 50/60Hz power supply for use. Note: Users should pay attention to self-distribution protection.

5. Install the oscillator control line here and tighten it.

6. Install the welding wire on the wire card, pay attention to the oscillation of the wire wiggler leave enough disturbance space, otherwise it will affect the wire and damage the wiggler.

7. Install the plug of the wire feeder control line and the two press holes at the end of the welding handle to the wire feeder (Panasonic) and tighten it.
