Traditional tank lifting construction electric hoist with chain stainless steel

Product Details

Place of Origin: CHINA

Brand Name: WINCOO

Certification: CE

Model Number: HKEH-III

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD+650~1200+set

Packaging Details: Export package

Delivery Time: 20 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:
Sling Type:
Chain
Maximum Lifting Height:
10 M
Lift Speed:
>8m/min
Chain Falls:
2
Sling Type:
Chain
Maximum Lifting Height:
10 M
Lift Speed:
>8m/min
Chain Falls:
2
Traditional tank lifting construction electric hoist with chain stainless steel

Traditional tank lifting construction electric hoist with chain stainless steel 0

Large petrochemical storage tanks are usually constructed by lifting and flipping. The key to the inversion process is the lifting of the tank body, and there are many types of specific processes and supporting equipment.
This paper mainly introduces the use of electric hoist group lifting inversion method in the manufacture of large storage tanks, using a new type of electric hoist as lifting equipment, and adding a fine-tuning circuit in the control system. The system has the advantages of smooth lifting, good synchronization, fast construction speed, low equipment cost, high efficiency, good safety self-locking function, easy installation quality control and so on. In the construction of large storage tank, this construction method has high popularization and application value.

Low speed electric chain hoist parameters

Rated lifting capacity 10 tons
Lifting speed 0.09min/meter
Lifting height 4m-8m
Motor model YHPE-500
Motor power 500W
Motor speed 1380R/Min
voltage 380V
Hoist model HS10
Total weight 90-124KG

Electric hoist flip method lifting storage tank scheme
N sets of 5T-3M electric chain hoist are used in the storage tank. The maximum use of the 5-ton electric chain hoist is 60% of the maximum tonnage, that is, no more than 3 tons. The maximum travel of the electric chain hoist is 3 meters (the length can be customized).
First, make the top first circle plate of the tank on the bottom plate, install the expansion ring on the first circle plate, the bottom surface of the expansion ring is about 200mm from the bottom edge of the first circle plate, and use a spiral jack to tighten the expansion ring on the first circle plate; Install lifting columns 400mm away from the inner wall of the tank, and arrange N lifting columns evenly around the inner circumference of the tank wall. Use two pull rods to make an eight-figure diagonal bracing support between the upper end of the column and the bottom plate of the tank, and then pull the two adjacent lifting columns together with pull rods to form a whole circle. Weld a lifting ear on the corresponding expansion ring of the lifting column. Weld a stop block on the tank wall at the upper end of the expansion ring to block the expansion ring, hang the electric chain on the lifting column on the top of the lifting lug, the hook of the electric hoist is hooked on the lifting lug of the expansion ring, install all the electric hoist in turn, connect the power cord of all the electric hoist to the total control table, the total control table can separately control each electric hoist, It can also be unified centralized synchronous control of all electric hods, turn on the total power supply, and then pre-tighten each electric hods, check whether the force of all electric hods is uniform, check whether all the lifting points are normal, if everything is normal, it can be lifted. The total console is adjusted to centralized control, and the overall rise button is connected, so that all the electric hods will rise together. If the electric hods do not make force during the rise, the total console needs to be converted to separate control, the loose electric hods are re-pre-tight and then the overall lift, until the elevation is raised to the specified height, and finally the height of the lift is adjusted by separate adjustment, and then the coaming board, After welding the vertical seam and welding the stop block, then lower all the electric hoist as a whole, so that the first circle plate falls back to the second circle plate on the circumference, so that the overall lifting of the first circle plate is completed; After the ring seam welding is completed, loosen the expansion ring, use the electric hoist to lower the whole expansion ring to the specified height of the second ring plate, and then prepare for the next lift.

Traditional tank lifting construction electric hoist with chain stainless steel 1

Major Component

Traditional tank lifting construction electric hoist with chain stainless steel 2

Traditional tank lifting construction electric hoist with chain stainless steel 3

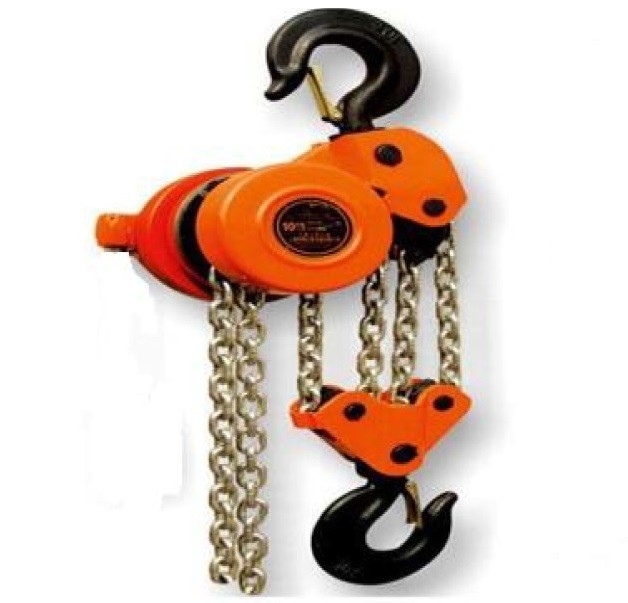

1 Motor 8 Pin Bush 15 Gear Piece 22 Steel Bushing 29 Down-hook Shelf
2 Pin Gear 9 Bearing Collar 16 Spline Gear 23 Guide Wheel 30 Pulley
3 Pin Wheel Housing 10 Bearing Collar 17 Macroaxis 24 Bolt 31 Pulley axle
4 Cycloidal Gear 11 Up-hook Beam 18 Side Fascia 25 Ring Shield 32 Roller Pin
5 Spacer Ring 12 Lifting Hook 19 Housing 26 Lifting Chain 33 Ring Shield
6 Eccentric Bearing 13 Lifting Chain Wheel 20 Minor Axis 27 Baffle 34 Down-hook Beam
7 Hinge Pin 14 Bracing Stick 21 Pin Roller 28 Lifting Chain Plate 35 Chain Stopper Plate
