200KG Clamp Ideal for Welding Auxiliary Equipment and Pipeline Pneumatic Internal

Product Details

Place of Origin: Jiangsu, China

Brand Name: WINCOO

Payment & Shipping Terms

Price: $18,600.00/sets >=1 sets

Packaging Details: Export package

Supply Ability: 3000 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Condition:	New	Machine Type:	RIVETING MACHINE
Weight (KG):	200	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Motor
Warranty:	1 Year	Key Selling Points:	Easy To Operate
Applicable Industries:	Manufacturing Plant, Construction Works	Showroom Location:	None
Product Name:	Pipeline Mouthpiece	Application:	Long Pipeline Construction Machinery
Keyword:	Clamp	Color:	Customer Requirement

Condition:	New
Machine Type:	RIVETING MACHINE
Weight (KG):	200
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Motor
Warranty:	1 Year
Key Selling Points:	Easy To Operate
Applicable Industries:	Manufacturing Plant, Construction Works
Showroom Location:	None
Product Name:	Pipeline Mouthpiece
Application:	Long Pipeline Construction Machinery
Keyword:	Clamp
Color:	Customer Requirement

200KG Clamp Ideal for Welding Auxiliary Equipment and Pipeline Pneumatic Internal

WINCOO ENGINEERING CO.,LTD

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

The pneumatic internal mouthpiece produced by our company is developed by absorbing advanced technology and experience of domestic and foreign products and combining with the construction characteristics of Chinese pipeline construction enterprises. Using compressed air as power, no pollution, especially suitable for the construction of water pipelines and oil and natural gas pipelines with high environmental protection requirements. It has the advantages of reliable performance, strong adaptability, quick action, accurate matching, compact structure, simple operation and accurate clearance adjustment. Product quality and performance can be comparable to the international similar products, including clearance type pneumatic inner mouthpiece, copper shoe type pneumatic inner mouthpiece, Marine pneumatic inner mouthpiece, fill the domestic market blank.

Product Features

1. Simple structure and beautiful appearance

2. Light weight, fast walking speed, strong climbing ability, small gas consumption

3. Large support, accurate clearance adjustment, greatly improve the construction efficiency

4. The valve parts are imported, the joint is made of stainless steel material to ensure that the air path is clean, and the joint type is C-type structure to ensure reliable sealing performance

5. The walking frame is manufactured strictly in accordance with the technological tooling to ensure the performance of the walking wheel set and improve the performance of the whole machine

6. From manufacturing to installation and commissioning, the whole machine is strictly implemented in accordance with national standards and processes, ensuring that the amount of misalignment and the precision of clearance adjustment is within 0.5mm, meeting the requirements of pipeline construction standards

Product Parameters

Non-self-propelled Clamp (Manual Pulled)
Model	Pipe Size	Piston No.s	Piston Power	L	W	H	Weight	Cube
Model		Piston No.s	(mm)		(KN)	(mm)	(mm)	(mm)	(kg)	(m3)
HGDNQ6’'	168	6X2	134	1473	150	150	36	0.04
HGDNQ8''	219	6X2	209	1593	189	189	53	0.06
HGDNQ10’’	273	6X2	382	1665	240	240	60	0.09
HGDNQ12-14''	305-357	6X2	405	1751	280	280	100	0.14

Self-propelled Clamp (Travels Under Its Own Power)
Model	Pipe size (mm)	Pistons (Nos)	Piston Power (KN)	Motor power (Hp)	L (mm)	W (mm)	H (mm)	Weight (KG)	Cube (M³)
HGDNQ16-18’’	406-457	8x2	959	1	2132	360	360	188	.29
HGDNQ20-22’’	508-559	10x2	1057	1.5	2434	480	480	296	.59
HGDNQ22-24’’	559-610	12x2	1268	1.5	2500	530	530	390	.72
HGDNQ24-26’’	610-660	12x2	1268	1.5	2672	580	580	418	.90
HGDNQ28-30’’	711-762	12x2	1748	1.5	2700	670	670	512	1.2
HGDNQ30-32’’	762-813	14x2	2937	3	2938	690	690	733	1.4
HGDNQ34-36’’	864-914	16x2	2937	3	3020	790	790	779	1.8
HGDNQ36-38’’	914-965	18x2	2937	3	3188	860	860	865	2.4
HGDNQ40-42’’	1016-1067	20x2	2937	3	3029	980	980	982	3.0
HGDNQ46-48’’	1168-1219	20x2	4855	3	3100	1050	1050	1420	3.7
HGDNQ48-50’’	1219-1270	22x2	4855	3	3517	1120	1120	1876	5.2
HGDNQ52-54’’	1321-1372	22x2	4855	3	3520	1210	1210	1988	5.4
HGDNQ56’’	1422	22x2	4855	3	3500	1310	1310	2187	6.6
HGDNQ60’’	1524	22x2	4855	3	3500	1310	1310	2187	6.6
HGDNQ62-66’’	1574-1676	24x2	4855	3	3864	1557	1557	2887	10.0
HGDNQ68-72’’	1727-1727	24x2	4855	3	3864	1557	1557	2887	10.0
HGDNQ76-80’’	1930-2032	30x2	4855	3	4000	1800	1800	3855	13.0

Product Major Component

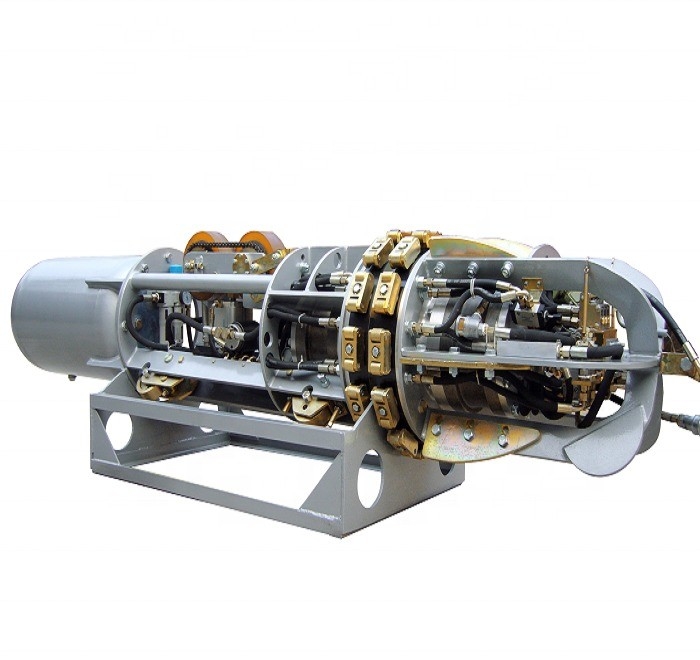

Main components of the mouthpiece: mouthpiece assembly (Swelling block), clearance cylinder, driving assembly, walking frame, walking wheel, brake assembly, gas tank, front cage frame, joystick (gas pipe), gas path assembly, etc., controlled by compressed air as power source. See the picture below.

1, Front cage frame

4, Back swelling block

2, Clearance cylinder

5, Gas path

3, Front swelling block

6, Gas tank

7, Adjustable nut

10, Brake assembly

13, Back walking wheel

8, Mouthpiece assembly

11, Walking frame

9, Front walking wheel

12, Driving assembly

Application of Major Component

A. First of all, the air compressor is connected with the joystick (gas path) and the air inlet pipe on the front cage frame with a high pressure hose and a quick joint to achieve the purpose of filling or filling air; The joystick (gas path) is then connected to the control shaft on the front cage frame by a hook.

B. The joystick (gas path) is welded by hollow steel pipe, and its function:

1, Supplementary gas volume. 2, Air path control: front row rising, front row shrinking, back row rising, back row shrinking, clearance opening, clearance closing. 3, Control the forward movement of the mouthpiece.

C. The control cable is used to control the driving walking, braking, forward and backward pointing. When walking, the forward walking cable should be tightened, and the automatic brake will be applied when it is released to prevent too fast speed when going downhill. If it is necessary to move forward, quickly tighten the cable and quickly loosen the cable to realize the point walking.

D. The gas tank is installed at the end of the mouthpiece, and its function is as follows: 1, Realize the balance of the whole machine. 2, Gas storage.

E. The mouthpiece assembly is the core part of the clamp device, which is composed of the cylinder, the distributor and two groups of swelling block (holding claw), etc., which mainly completes the matching.

Product Photos

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
