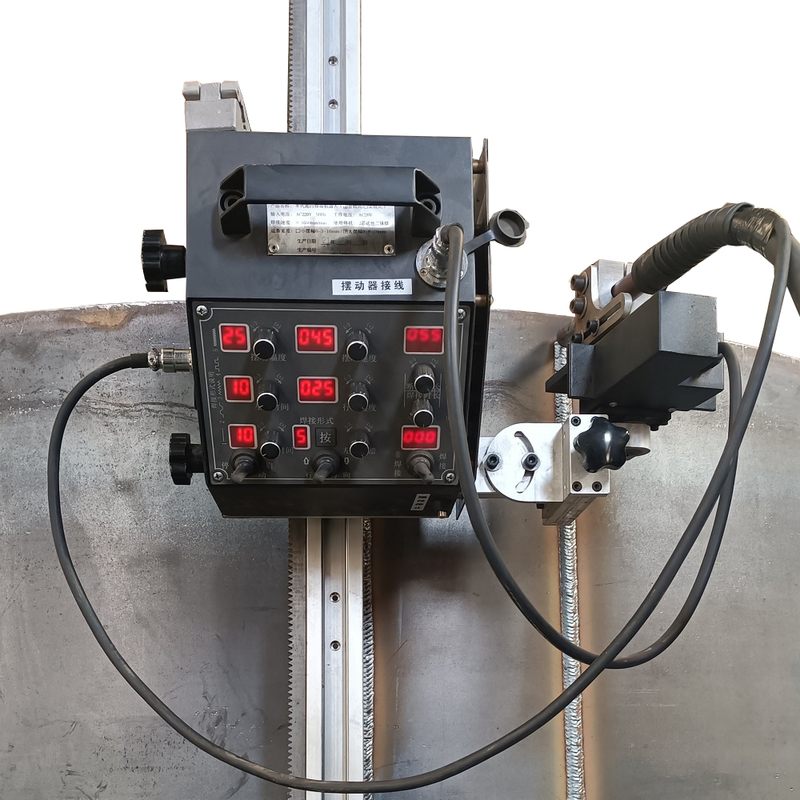

Cheap Portable Vertical MIG Welding Tractor for Tank Construction

Name: Cheap Portable Vertical MIG Welding Tractor for Tank Construction
Brand: Wincoo Engineering Co., Ltd.
SKU: WHL-III
Price: 3,240.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: WINCOO

Certification: CE

Model Number: WHL-III

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD+1800~4680+set

Packaging Details: Export package

Delivery Time: 30 days

Payment Terms: L/C,D/P,T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:

After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support	Voltage:	380v/50hz Or Customized
Usage:	Carbon Steel Welding,seam Welding Of Metal Material.	Certification:	CE,CCC

After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support
Voltage:	380v/50hz Or Customized
Usage:	Carbon Steel Welding,seam Welding Of Metal Material.
Certification:	CE,CCC

Cheap Portable Vertical MIG Welding Tractor for Tank Construction

Product Attributes

Attribute	Value
After-sales service provided	Engineers available to service machinery overseas, Video technical support
Voltage	380v/50hz or customized
Usage	Carbon Steel welding, seam welding of metal material
Certification	CE, CCC

Product Description

The WHL-III Series is a lightweight, modular solution for vertical welding of storage tanks during on-site erection. Using gas-shielded flux-cored (FCAW-G) or metal-cored (MCAW) wires, it delivers high-speed, all-position welds without complex EGW setups. Magnetic clamps and telescoping rails enable rapid deployment on curved surfaces, making it ideal for remote tank farms, wind tower sections, and repair projects.

Key Specifications

Parameter	Specification
Welding Process	Pulsed MIG/MCAW/FCAW-G
Plate Thickness	6 mm - 25 mm (0.24" - 1")
Travel Speed	200-600 mm/min (8-24 in/min)
Wire Feed	5-25 m/min (16-82 ft/min)
Clamping Force	Electromagnetic (10,000 N)
Weight	65 kg (143 lbs)
Power Source	230V/460V inverter (synergic control)
Curvature Range	Tanks ≥ 8m diameter (26 ft)
Environment	IP54 rated (dust/water resistant)

Key Features

Rapid Deployment: Modular tracks assemble in <30 mins; no cranes needed.
All-Position Capable: Welds vertical-up, horizontal, and overhead seams.
Wind Tolerance: Gas-shielded FCAW performs in outdoor conditions.
Battery Backup: 1-hour UPS for grid instability.
Low Spatter: Synergic pulsed MIG reduces cleanup.
Cost-Effective: 40% lower capex vs. EGW systems.

Application Scenarios

Field erection of oil/water tanks (API 650)
Wind turbine tower sections
Grain silo assembly & cement storage bins
Tank repair (external shell welds)
Modular refinery construction
