Flame Pipe Cutter
, Portable CNC Pipe Cutter
, Pipeline Equipment Pipe Cutter
Portable CNC Plasma And Flame Pipe Cutter for Pipeline Equipment
Product Introduction
When it comes to cutting pipes, there are several ways to do it. One of the most efficient and convenient methods is by using a portable plasma flame pipe cutting machine.
A portable plasma flame pipe cutting machine is a cutting tool that uses plasma and flame to cut pipes of various sizes and materials. It is a versatile cutting tool that can be used in various industries, including construction, shipbuilding, and oil and gas.
Start of cutting
Cut halfway through
After one round of cutting
Finished cutting
Major Component
A portable plasma flame pipe cutting machine is made up of several components, including:
1. Power Supply: This is the source of electricity that powers the machine.
2. Control Panel: This is where the operator controls the machine and sets the cutting parameters.
3. Plasma Torch: This is the part of the machine that creates the plasma arc used to cut the pipe.
4. Flame Torch: This is the part of the machine that creates the flame used to preheat the pipe.
5. Rail and Carriage System: This is the part of the machine that moves the torches along the pipe.
6. Software: This is the program that controls the machine and allows the operator to design and cut the pipe.
Product Parameter
| Table 1.Equipment Lectotype |
| Type |
Model |
Software |
Pipe Diameter |
Horizontal Adjustment |
| Simplified Machine |
TP1-JH |
01/07 |
<320mm |
200mm |
| Basic Machine |
TP1-JB |
<680mm |
400mm |
| Standard Machine |
TP1-BZ |
<1020mm |
600mm |
| Classic R Machine |
TP1-R80B |
01/02/03/05/06/07/08 |
<1800mm |
800mm |
| Classic X Machine |
TP1-X80B |
01/02/03/05/06/07/08/09/10/11/12 |
<3000mm |
800mm |
| Tie-In Machine |
TP1-PSK |
07 |
320-1420mm |
200mm |
| Table 2.Cutting Machine Orbital Details |
| NO. |
Model |
Length/m |
Adjustable range/m |
Claw with contributory posterior adjustment range |
| 1 |
STG1 |
0.98 |
0.54~0.71 |
0.68~0.86 |
| 2 |
STG2 |
1.23 |
0.79~0.96 |
0.93~1.14 |
| 3 |
STG3 |
1.38 |
0.91~1.16 |
1.06~1.30 |
| 4 |
STG4 |
1.72 |
1.16~1.45 |
1.30~1.60 |
| 5 |
STG5 |
1.90 |
1.46~1.63 |
1.60~1.81 |
| 6 |
STG6 |
2.50 |
2.06~2.23 |
2.20~2.41 |
Product Features
A portable plasma flame pipe cutting machine has several features that make it stand out from other cutting tools. Some of these features include:
1. Portability: As the name suggests, a portable plasma flame pipe cutting machine is portable, allowing it to be moved easily from one job site to another.
2. Versatility: It can cut pipes of various sizes and materials, making it a versatile cutting tool.
3. Efficiency: It can cut pipes quickly and accurately, reducing the time and effort required to cut pipes manually.
4. Precision: It can cut pipes with precision, ensuring that the cuts are straight and accurate.
5. Automation: It can be automated, reducing the need for manual labor and increasing efficiency.

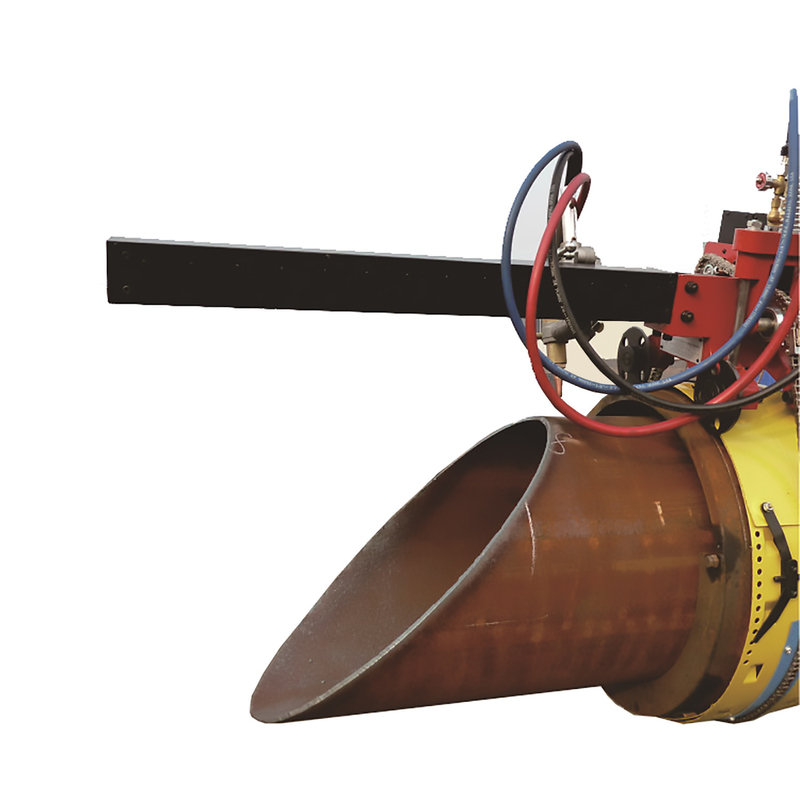

Product Photos
In conclusion, a portable plasma flame pipe cutting machine is a valuable cutting tool that can save time, effort, and money. It is versatile, efficient, precise, and can be automated, making it an ideal cutting tool for various industries. By understanding its components and features, you can determine if it is the right cutting tool for your needs.
