Name: Supply Pipelayer Lifting Used Roller Cradles For Pipeline Construction Equipment
Brand: Wincoo Engineering Co., Ltd.
SKU: HG 6~60
Price: 7,175.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: WINCOO

Certification: CE

Model Number: HG 6~60

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD+5450~8900+set

Packaging Details: Export package

Delivery Time: 30 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 100 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                Roller Cradles, Supply Pipelayer Roller Cradles, Pipeline Construction Equipment Roller Cradles


Warranty:	1 Year	Applicable Pipe Range:	152~1524
Total Rollers:	28	Max Lifting Capacity:	8000~55000 Kg

Warranty:	1 Year
Applicable Pipe Range:	152~1524
Total Rollers:	28
Max Lifting Capacity:	8000~55000 Kg

Supply Pipelayer Lifting Used Roller Cradles For Pipeline Construction Equipment

Pipeline Roller Cradle is a special hoisting and auxiliary walking equipment used in the lower ditch operation after the completion of pipeline welding.

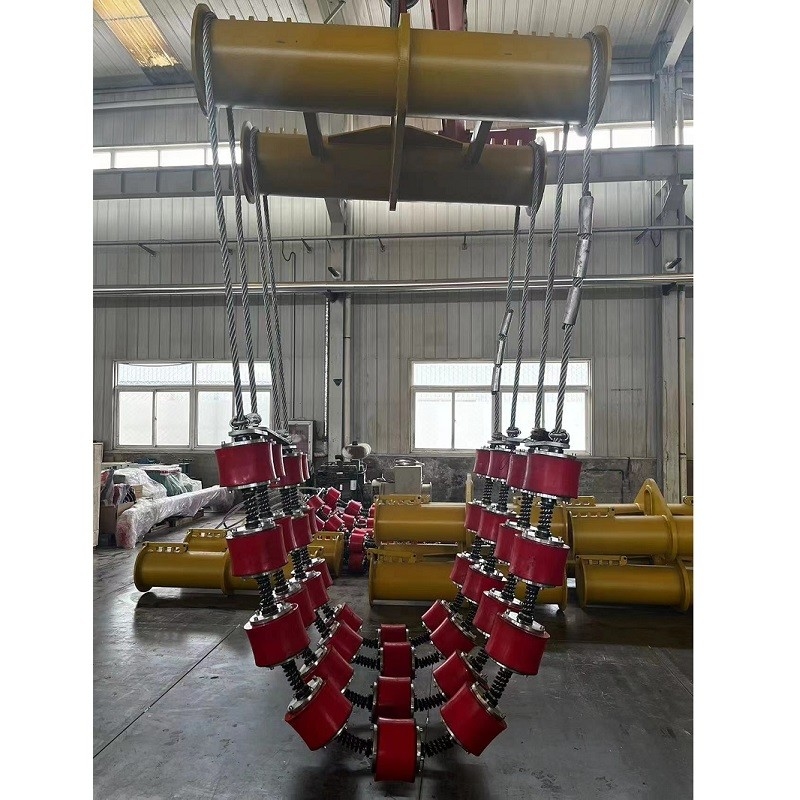

Supply Pipelayer Lifting Used Roller Cradles For Pipeline Construction Equipment 0

Product Features

1. Reasonable design, light weight, strong lifting capacity, safe and reliable

2. The pipe weight isevenly distributed on the circumference of the wire rope roller

3. Roller bearing adopts bearings with large radial and axial bearing capacity, with sealing, waterproof and sand control functions

4. The roller can move flexibly and freely to ensure the smooth lower groove of the pipeline

5. Outside the roller is a special polyurethane hanging wheel with good adhesion and high abrasion resistance, which can effectively protect the anti-corrosion layer of the pipeline.

Product Parameter

Model	Applicable pipe range(mm)	Temperature of surroundings (℃)	Total rollers	Wire rope diameter (mm)	Max lifting capacity	Dimension(m)	Weight (kg)
HG6-12	Φ152~305	-30~+70	28	18	8000	0.50.50.5	450
HG12-24	Φ305~610	-30~+70	28	22	13000	0.70.70.8	590
HG24-36	Φ610~914	-30~+70	28	22	35000	1.01.00.8	1500
HG36-48	Φ914~1219	-30~+70	28	30	45000	1.41.41.0	2200
HG48-60	Φ1219~1524	-30~+70	28	30	55000	1.61.41.0	2900

Supply Pipelayer Lifting Used Roller Cradles For Pipeline Construction Equipment 2
