External Clamp Electric Hydraulic CNC Pipe Beveling and Cutting Machine Equipment

Product Details

Place of Origin: CHINA

Brand Name: WINCOO

Certification: CE

Model Number: OCE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD+4000~8000+set

Packaging Details: Export package

Delivery Time: 30 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 10 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                CNC Pipe Beveling Machine, Electric Hydraulic Pipe Beveling Machine, External Clamp Pipe Beveling Machine


After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Warranty:	1 Year
Voltage:	220V,220V/50HZ,380V	Condition:	New
Type:	Pipe Type Beveling

After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Warranty:	1 Year
Voltage:	220V,220V/50HZ,380V
Condition:	New
Type:	Pipe Type Beveling

External Clamp Electric Hydraulic CNC Pipe Beveling and Cutting Machine Equipment

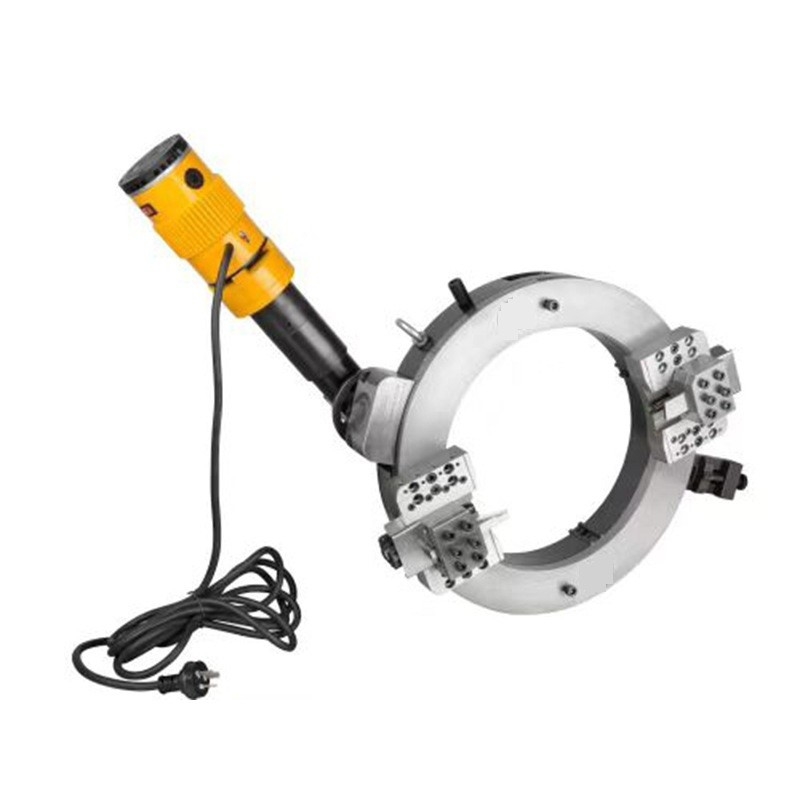

External Clamp Electric Hydraulic CNC Pipe Beveling and Cutting Machine Equipment 0

Product Description
I. Electric Type
The machine adopts AC 220V high performance motor as the power motor, the frequency is 50 Hz, the allowable current is 6A, the motor power is 1.5-2 KW, the machine is portable external installation cutting groove machine with the characteristics of simple operation, small radial net volume and so on.
II. Pneumatic Type
The machine is driven by air motor, and the air working pressure is 0.8-1.0mpa. The air consumption is 1000-2000L/min.
III. Hydraulic Type
It is suitable for batch cutting and beveling of large pipes with wall thickness ≤90, driven by hydraulic motor, rated voltage 380V three-phase, rated pressure 10MPa, flow 30L/Min.
IV. MeTABO
Imported motor from Germany, high processing efficiency, adjustable speed, more stable performance, with overload protection.

Reference Parameter

Model	Specification	Outside diameter	Thickness		Speed of cutter head
Model	Specification	Outside diameter	Overloaded	Overloaded	Speed of cutter head
Electric type/OCE Pneumatic type/OCP Hydraulic type/OCH CNC type/OCS METABO/OCM	89	25~89	≤30		42 r/min
	159	65~159	≤30		20 r/min
	168	50~168	≤30		18 r/min
	230	80~230	≤30		15 r/min
	275	125~275	≤30		14 r/min
	305	150~305	≤30	≤110	13 r/min
	325	168~325	≤30	≤110	13 r/min
	377	219~377	≤30	≤110	12 r/min
	426	273~426	≤30	≤110	12 r/min
	457	300~457	≤30	≤110	12 r/min
	508	355~508	≤30	≤110	12 r/min
	560	400~560	≤30	≤110	12 r/min
	610	457~610	≤30	≤110	11 r/min
	630	480~630	≤30	≤110	11 r/min
	660	508~660	≤30	≤110	11 r/min
	715	560~715	≤30	≤110	11 r/min
	762	600~762	≤30	≤110	11 r/min
	830	660~830	≤30	≤110	10 r/min
	914	762~914	≤30	≤110	10 r/min
	1066	914~1066	≤30	≤110	10 r/min
	1230	1066~1230	≤30	≤110	10 r/min
	1430	1230~1430	≤30	≤110	8 r/min

External Clamp Electric Hydraulic CNC Pipe Beveling and Cutting Machine Equipment 1

External Clamp Electric Hydraulic CNC Pipe Beveling and Cutting Machine Equipment 2

External Clamp Electric Hydraulic CNC Pipe Beveling and Cutting Machine Equipment 3

External Clamp Electric Hydraulic CNC Pipe Beveling and Cutting Machine Equipment 4

External Clamp Electric Hydraulic CNC Pipe Beveling and Cutting Machine Equipment 6

External Clamp Electric Hydraulic CNC Pipe Beveling and Cutting Machine Equipment 7

External Clamp Electric Hydraulic CNC Pipe Beveling and Cutting Machine Equipment 8
