High Speed Hydraulic Pipe Groove Machine on Field Pipeline Construction Equipment

Name: High Speed Hydraulic Pipe Groove Machine on Field Pipeline Construction Equipment
Brand: Wincoo Engineering Co., Ltd.
SKU: HGK Series
Price: 40,800.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: WINCOO

Certification: CE

Model Number: HGK Series

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD+24800~56800+set

Packaging Details: Export package

Delivery Time: 30 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 10 set/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                High Speed Hydraulic Pipe Groove Machine, Hydraulic Pipe Groove Machine


After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Warranty:	1 Year
Voltage:	380V,110V/220v,220V/240V	Condition:	New
Type:	Pipe Type Beveling	Application:	Pipe Cutting&beveling Machine

After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Warranty:	1 Year
Voltage:	380V,110V/220v,220V/240V
Condition:	New
Type:	Pipe Type Beveling
Application:	Pipe Cutting&beveling Machine

High Speed Hydraulic Pipe Groove Machine on Field Pipeline Construction Equipment

Facing/Beveling machine is a special pipe end processing equipment for long distance pipeline construction. It can process any kinds of bevels quickly to meet different welding craft demands, instead of manual beveling to get higher efficiency. It is also a necessary matching tool for internal welding or fully automatic welding.
Electrical engine power unit is also special designed for offshore pipeline construction, which can reduce pollution for vessel cabin.

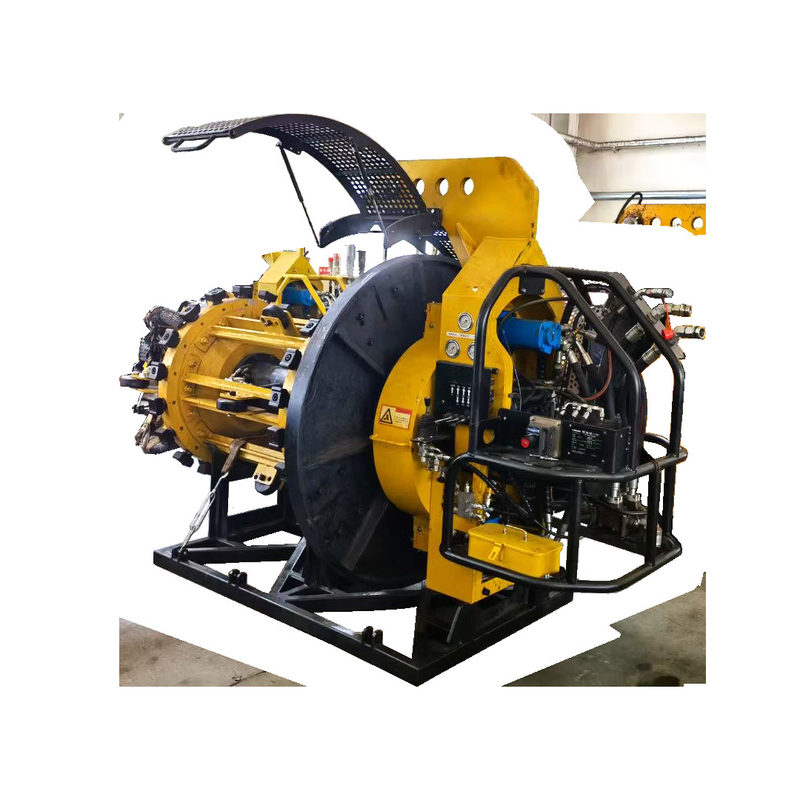

High Speed Hydraulic Pipe Groove Machine on Field Pipeline Construction Equipment 0

General Information

1, 8" to 56" pipe diameter facing machine can be available.

2, Machining any kinds of bevels accurately.

3, High speed beveling, high efficiency and energy saving

4, Big cutting volume, average using time for each pipe end is 1 to 2 min.

5, Hydraulic unit driving by diesel engine be used for onshore pipeline construction/Hydraulic unit driving by electrical engine be used for offshore pipeline construction.

Product Parameter

Model	HGK814	HGK2026	HGK2432	HGK3240	HGK3648	HGK4856
Pipe size(in)	8~14	20~26	24~32	32~40	36~48	48~56
Pipe Thickness (mm)	10~22	10~22	14.6~30	14.6~30	14.6~50	14.6~50
Shaft Speed (rpm)	0~40	0~40	0~40	0~40	0~40	0~40
Shaft Feed (mm/min)	0-10	0-10	0-10	0-10	0-10	0-10
Tool apron qty	2~3	3~4	4	4	4	4
Cutting Stroke (mm)	90	90	90	90	90	90
Transmission type	Hydraulic motor or electric drive
Feed transmission	Hydraulic Cylinder
Weight (t)	1.2	2.5	3.5	4	4.2	4.5
Dimension (mm)	1900x800x1050	2100x950x1250	2900x1000x1450	3256x1952x1776	3459x2002x2002	3332x1972x2165
Hydraulic Power Station	HPS133	HPS133	HPS133	HPS133	HPS133	HPS133

Product Features

1, Adopt flexible transmitting system to combine hydraulic power plant and machine set to meet moving standard

2, Main driving system adopt hydraulic driving and mechanism transmitting driving rotate plate, which can conquer impacts of load and impact wave. features high rigid, and stable and reliable cutting.

3, Feeding transmitting system adopt hydraulic system. features high feeding precision and big force.

4, Main transmitting and feeding movement adopt closed type feedback system, features high bevel volume and high efficiency.

5, The overall system adopt pilot hydraulic control and plate control components, features simple, high automatics, reliable, easy operation and maintenance.

6, Clean type quick coupler could reduce pollute hydraulic oil.

7, Diesel engine is mounted with throttle automatic adjusting device, except beveling works, diesel engine will be in idle speed situation, could greatly save energy.

8, System own temperature compensating function, with quick response ability.

9, Hydraulic system owns pre-heating and cooling function, which could suitable for very cold or hot, wet area, which could improve work efficiency.

Product Major Component

I. Technical point of machine set

1, Good centralization ability, high speed and big force expansion, could ensure stable clamp during cutting. Through add or reduce connecting rods can make clamp section meet different pipe diameters.

2, Tools adopt imitation technology, could cut against pipe end according to pipe roundness, ensure bevels shape and accuracy. Compound blade rod have been adopted which could finish any kinds of compound bevels according to different match. See Illustration 9 and 10.

3, Adopt famous brand alloy blade, features high cutting efficiency and long lifetime. See Illustration 11

4, Adopt unique invented rotating plate driving and feeding driving, form a definite mechanical and hydraulic feedback system, use small flow oil pump, could offer stable cutting, avoid blade crash and engine stuffy.

High Speed Hydraulic Pipe Groove Machine on Field Pipeline Construction Equipment 4

II. Key point for operating

1, Lift the facing machine in front of pipe end by hoisting equipment, insert the clamp section into the pipe, operate tension joystick, putting all clamp shoes supporting against the internal of pipe, make sure clamp section is fixed in the center of the pipe.

2, Operate quick feeding joystick, making rotate plate near the pipe end quickly. Operate main shaft rotate plate joystick, main shaft rotate plate will take bevel tools to rotate as per set speed, then operate main shaft rotate plant feeding joystick to start the bevel works.

3, After beveling work, operate main shaft rotate plate joystick to stop feeding, put the rotate plate turning 2 to 4 circles in idle speed to accurate the pipe end, stop rotate plate, speed up return rotate speed, and stop, release the clamp section, and move to the next joint.

III. Power unit

Power plant is consist of engine, hydraulic pump, hydraulic oil tank, diesel tank, radiator, filter system, hydraulic hose, operating panel, etc. Power plant connect with machine set by quick coupler, which is reliable and easy for operating.
