70 Ton Capacity Pipeline Construction Side Arm Lifting Pipelayer
Product Description
As an expert in pipeline construction equipment manufacturing in China, our company can provide you with a variety of pipelayer ranging from 25 tons to 90 tons.Our company's pipelayer in the design of safe and reliable, excellent performance, easy to operate as the goal.This series of equipment can operate in heavy dust environment as well as rain, snow, fog and other weather.The machine design is reasonable, compact structure, easy to dispatch, transfer and transportation, and adapt to the construction site and general road operations.
Product Parameter
| Model |
HGY20 |
HGY40 |
HGY70 |
HGY90 |
| Max.lifting capacity |
25t |
45.7t |
70t |
90t |
| Rated lifting capacity |
21.25t |
38.25t |
59.5t |
76.5t |
| Operating weight(approx) |
22t |
35t |
49t |
55t |
| Shipping outline dimension for main equipment(L*W*H) |
4150×3050×3250 (mm) |
4855×3384×3270 (mm) |
5630×3400×3540 (mm) |
5630×3436×3540 (mm) |
| Shipping weight for main equipment |
21.5t |
26t |
37.5t |
38.9t |
| Average ground pressure |
76.4KPa |
85.2KPa |
87.3KPa |
86.6KPa |
| Min.ground clearance |
480mm |
490mm |
550mm |
550mm |
| Max.gradeability |
25° |
25° |
25° |
25° |
| Applicable environment |
-50ºC ~+65ºC |
-50ºC ~+65ºC |
-50ºC ~+65ºC |
-50ºC ~+65ºC |
| Engine |
Model |
SHANGCHAI SV11CB |
CUMMINS NT855-C280 |
CUMMINS NT855-C280 |
CUMMINS NT855-C280 |
| Rated power |
120KW |
169KW |
239KW |
257KW1850rpm |
| Rated rotary speed |
1850rpm |
2000rpm |
2000rpm |
2000rpm |
| Walking system |
Operation mode |
Joystick |
Joystick |
Joystick |
Joystick |
| Theoretical speed |
Forward(shift2) |
3.29/5.28 km/h |
3.6/6.6 km/h |
3.6/6.6 km/h |
3.6/6.6 km/h |
| Backward(shift2) |
4.28/7.59 km/h |
4.3/7.7 km/h |
4.4/7.8 km/h |
4.4/7.8 km/h |
| Length of track on ground |
2635mm |
3050mm |
3620mm |
3620mm |
| Track width |
560mm |
660mm |
760mm |
760mm |
| Number of track rollers |
7×2 |
7×2 |
9×2 |
9×2 |
| Crane system |
Range form |
The wire rope luffing form |
The wire rope luffing form |
The wire rope luffing form |
The wire rope luffing form |
| Operating mode |
The hydraulic control handle |
The hydraulic control handle |
The hydraulic control handle |
The hydraulic control handle |
| crane link |
The length of the crane link |
6000mm |
7500/8500mm |
7600/8600mm |
8600/9600mm |
| Max lifting height |
4909mm |
6100/7050mm |
6100/7050mm |
7050/9600mm |
| The crane link luffing angle |
0~85° |
0~86° |
0~86° |
0~86° |
| Hook speed(six to eight times) |
0~12.0m/min |
0~6.2 m/min |
0~7.0 m/min |
0~7.0 m/min |
| Elevating time(four to five times) |
25s |
20s |
32s |
40s |
Product Features
Equipment safety optimization
1. Special chassis for high-strength pipelayer with large gauge design
2. Normally closed parking brake, automatic parking brake.
3. Steel box type structure lifting arm, strength increased by 50%.
4. Full-function torque limiting system to ensure lifting safety.
5. Lifting system adopts full hydraulic transmission, good transmission performance.
High efficiency energy-saving optimization
1. Modular assembly of transmission system, efficiency improvement.
2. Hydraulic or electronic pilot control, smooth transmission, easy operation.
3. National III emission engine, good fuel economy, environmental standards.
4. Fully closed cab, air conditioning and other comfortable configuration.

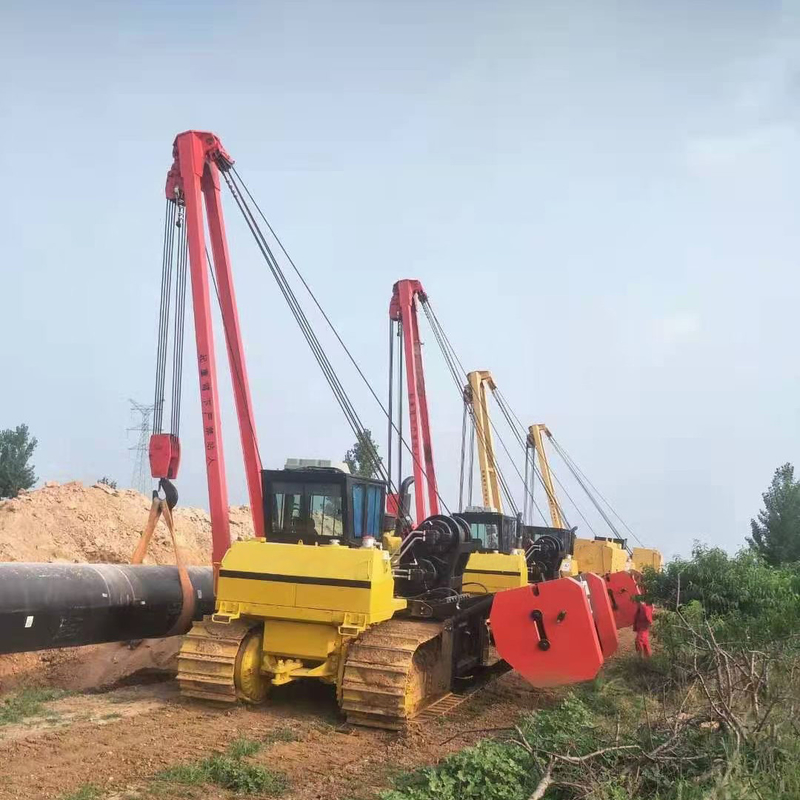

Product Photos
