Advanced hydraulic jacking system for tank lifting construction with PLC control

Product Details

Place of Origin: CHINA

Brand Name: WINCOO

Certification: CE

Model Number: YT Series,YT-C

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD+800~4000+set

Packaging Details: Export package

Delivery Time: 20 days

Payment Terms: L/C, D/P, T/T

Supply Ability: 100 set/month

Get Best Price
Highlight:
Advanced hydraulic jacking system for tank lifting construction with PLC control

Advanced hydraulic jacking system for tank lifting construction with PLC control 0

YT-C type hydraulic storage tank lifting equipment is a set of large hydraulic lifting equipment specially developed by our company for national crude oil reserve project in 1994.As long as the number of hydraulic cylinder and pump station system is increased or decreased, this type of equipment can be applied to the inverted construction of large storage tanks with different volumes ranging from thousands of cubic meters to hundreds of thousands of cubic meters.
The control part adopts Siemens PLC modular design concept, simple operation, reliable quality.The hydraulic cylinder can be used for single or multiple lifting height adjustment, and can also be used for centralized control of multiple groups.Through more than ten years of practice summary, we continue to optimize the equipment, improve the production process, so that the product quality and performance greatly improved, the majority of users praise.

The overall structure of the equipment

1, The equipment is evenly placed inside the jacked tank. The overall force and lateral force of the equipment are calculated strictly and successfully applied.

2, The structure is rigorous and compact, the output force is adjustable, the jacking speed meets the jacking requirements, and the synchronization accuracy is high.

Working principle of the equipment

The transfer of force: output force of hydraulic cylinder → steel wire rope → rising ring (welded with lifting lug) → rib plate for transferring force → tank wall jacking

Jacking control process:

1, Pump station control box (rotating selection button) → Centralized control operation box (Figure 1-3) → hydraulic jacking pump station (solenoid of valve group) →PLC devices → centralized control operation box → hydraulic jacking pump station → integral or partial lifting or lowering of hydraulic cylinder.

2, Pump station control box (rotating selection button) → control handle → hydraulic cylinder (single or multiple) fine adjustment up and down.

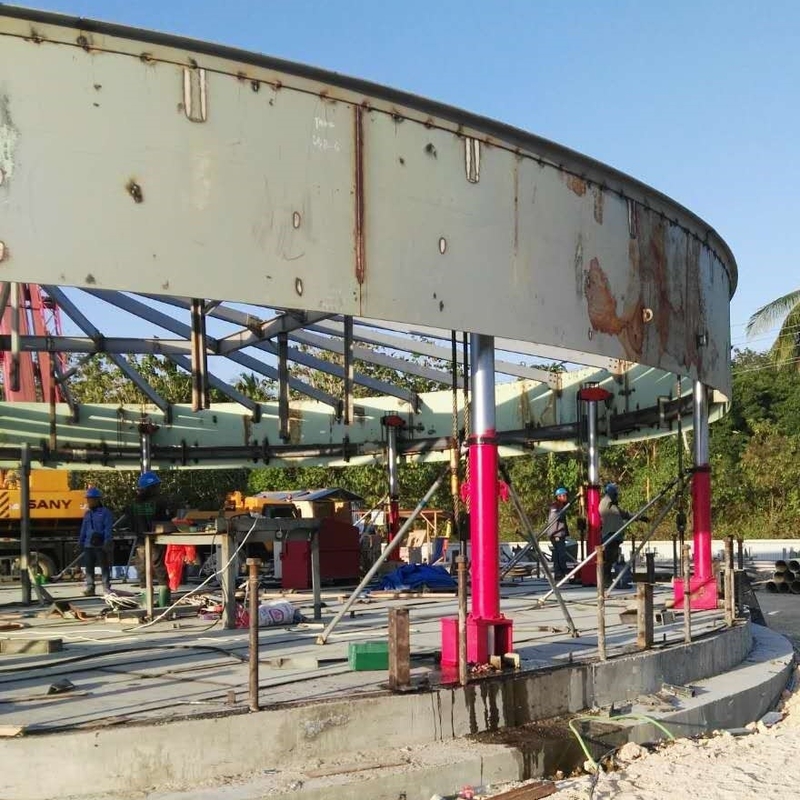

Advanced hydraulic jacking system for tank lifting construction with PLC control 1

Technical Parameter

Model/Parameter Max service pressure Max output force of single hydraulic cylinder Max stroke of hydraulic cylinder Hydraulic cylinder lifting speed
YT10-2200C 24Mpa 10T 1250mm 190mm/min
YT10-2700C 31Mpa 10T 1400mm 270mm/min
YT12-2700C 31Mpa 12T 1400mm 250mm/min
YT18-1700C 24Mpa 18T 1240mm 175mm/min
YT18-2000C 24Mpa 10T 1240mm 175mm/min
YT18-3000C 25Mpa 18T 1600mm 187mm/min
YT25-2700C 31.5Mpa 25T 1650mm 175mm/min
YT25-3000C 29Mpa 25T 3200mm 160mm/min
YT30-2700C 29Mpa 30T 2050mm 130mm/min
Model/Parameter Motor speed Motor voltage Motor power Working environment temperature
YT10-2200C 1440r/min ~380V 5.5kw -15~50 ºC
YT10-2700C 1440r/min ~380V 5.5kw -15~50 ºC
YT12-2700C 1440r/min ~380V 5.5kw -15~50 ºC
YT18-1700C 1440r/min ~380V 4kw 0~50ºC
YT18-2000C 1440r/min ~380V 4kw 0~50ºC
YT18-3000C 1440r/min ~380V 5.5kw -10~60ºC
YT25-2700C 1440r/min ~380V 5.5kw -10~60ºC
YT25-3000C 1440r/min ~380V 4kw -10~60ºC
YT30-2700C 1440r/min ~415V 4kw -10~60ºC

Notes:Customized

Advanced hydraulic jacking system for tank lifting construction with PLC control 2

Advanced hydraulic jacking system for tank lifting construction with PLC control 3

We will:

1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor.
