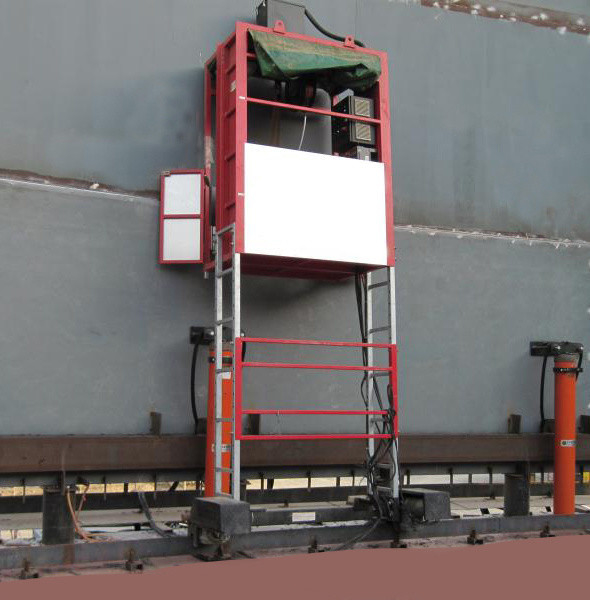

120t Capacity Hydraulic Tank Jacking Equipment For Customizable

Product Details

Certification: ISO 9001:2000

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                120t Capacity Tank Jacking Equipment, Hydraulic Tank Jacking Equipment, 120t Capacity Hydraulic Jacking System


Model NO.:	YT Series	Max Height:	0-4600mm
Condition:	New	Keywords:	Advanced Hydraulic Jacking System
Capacity:	More Than 50t	Stroke:	More Than 5m
Color:	Red Or Customized	Engineer Oversea Service Is Available:	More Than 5 Meter Tank
Transport Package:	Container	Specification:	Customized
Trademark:	WINCOO	Origin:	China
HS Code:	8425421000	Supply Ability:	5000
After-sales Service:	Quality Assurance	Warranty:	1 Year
Type:	Hydraulic Jack	Structure:	Hydraulic Jack
Capacity (Load):	12-120t	Power Source:	Hydraulic
Customization:	Available \| Customized Request

Model NO.:	YT Series
Max Height:	0-4600mm
Condition:	New
Keywords:	Advanced Hydraulic Jacking System
Capacity:	More Than 50t
Stroke:	More Than 5m
Color:	Red Or Customized
Engineer Oversea Service Is Available:	More Than 5 Meter Tank
Transport Package:	Container
Specification:	Customized
Trademark:	WINCOO
Origin:	China
HS Code:	8425421000
Supply Ability:	5000
After-sales Service:	Quality Assurance
Warranty:	1 Year
Type:	Hydraulic Jack
Structure:	Hydraulic Jack
Capacity (Load):	12-120t
Power Source:	Hydraulic
Customization:	Available \| Customized Request

120t Capacity Hydraulic Tank Jacking Equipment For Customizable

Model	YT10-1650	YT10-1700	YT12-2700	YT18-1700	YT25-3200
Maximum service pressure	28 MPa	28 MPa	13Mpa	30Mpa	20Mpa
Maximum output force of single hydraulic cylinder	10 t	10 t	12 t	18 t	25 t
Maximum stroke of hydraulic cylinder	1700 mm	1700 mm	2700mm	1650mm	3200mm
Hydraulic cylinder lifting speed	90mm/min	90mm/min	160mm/min	95mm/min	180mm/min
Oil pump flow	2×14.4L/min	2×14.4L/min	50L/min	7.2L/min	14.4L/min
Motor speed	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min
Motor voltage	~380V	~380V	~380V	~380V	~380V
Motor power	2×5.5KW	2×5.5KW	15kw	4kw	5.5kw
Operating voltage of electromagnetic reversing valve	~220V	~220V	~220V	~220V	~220V
Working environment temperature for equipment	-15~50 ºC	-15~50 ºC	10-50 ºC	10-50 ºC	-10~60 ºC
Suitable width	1500mm	1500mm	1500mm	1500mm	3000mm

Model	YT25-2700	YT30-2700	YT30-3200	YT40-3400	YT50-2700
Maximum service pressure	25Mpa	24Mpa	30Mpa	20Mpa	10Mpa
Maximum output force of single hydraulic cylinder	25 t	30 t	30 t	40 t	51 t
Maximum stroke of hydraulic cylinder	2700mm	2700mm	3200mm	3400mm	2620mm
Hydraulic cylinder lifting speed	180mm/min	110mm/min	50mm/min	80mm/min	140mm/min
Oil pump flow	14.4L/min	7.2L/min	7.2L/min	7.2L/min	14.6L/min
Motor speed	1440 r/min	1440 r/min	1440 r/min	1440 r/min	1440 r/min
Motor voltage	~380V	~415V	~380V	~380V	~380V
Motor power	5.5kw	4kw	4kw	4kw	5.5kw
Operating voltage of electromagnetic reversing valve	~220V	~220V	~220V	~220V	~220V
Working environment temperature for equipment	10~50 ºC	-10~50 ºC	0~50 ºC	0~50 ºC	0~50 ºC
Suitable width	2500mm	2500mm	2500mm	3050mm	2500mm

Notes: Parameters are for reference only, Custom hydraulic jacks is available. The specific number of hydraulic jacks needs to be calculated according to the site conditions, such as the weight of the tank, diameter, plate width, and so on
Advanced Hydraulic Jacking System for Tank Construction

1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications.
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank.
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor.

Advanced Hydraulic Jacking System for Tank Construction
