Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Customized Automatic Tank Welding Machine, Water Cooling Automatic Tank Welding Machine


Model NO.:	WEGW-I	Keywords:	Tank Vertical Welding Machine
Welding Process:	Electrogas Welding	Plate Thickness:	8~45 Mm
Plate Material:	Carbon Steel	Transport Package:	Standard Export Packing
Specification:	Customized	Trademark:	Wincoo
Origin:	China	HS Code:	851531900
Supply Ability:	230 Set/Year	Cooling Way:	Water Cooling
Control:	Semi-Automatic	Style:	Vertical
Frequency Range:	Intermediate Frequency	Electric Current:	DC
Type:	Continuous Seam Welder	Customization:	Available \| Customized Request

Model NO.:	WEGW-I
Keywords:	Tank Vertical Welding Machine
Welding Process:	Electrogas Welding
Plate Thickness:	8~45 Mm
Plate Material:	Carbon Steel
Transport Package:	Standard Export Packing
Specification:	Customized
Trademark:	Wincoo
Origin:	China
HS Code:	851531900
Supply Ability:	230 Set/Year
Cooling Way:	Water Cooling
Control:	Semi-Automatic
Style:	Vertical
Frequency Range:	Intermediate Frequency
Electric Current:	DC
Type:	Continuous Seam Welder
Customization:	Available \| Customized Request

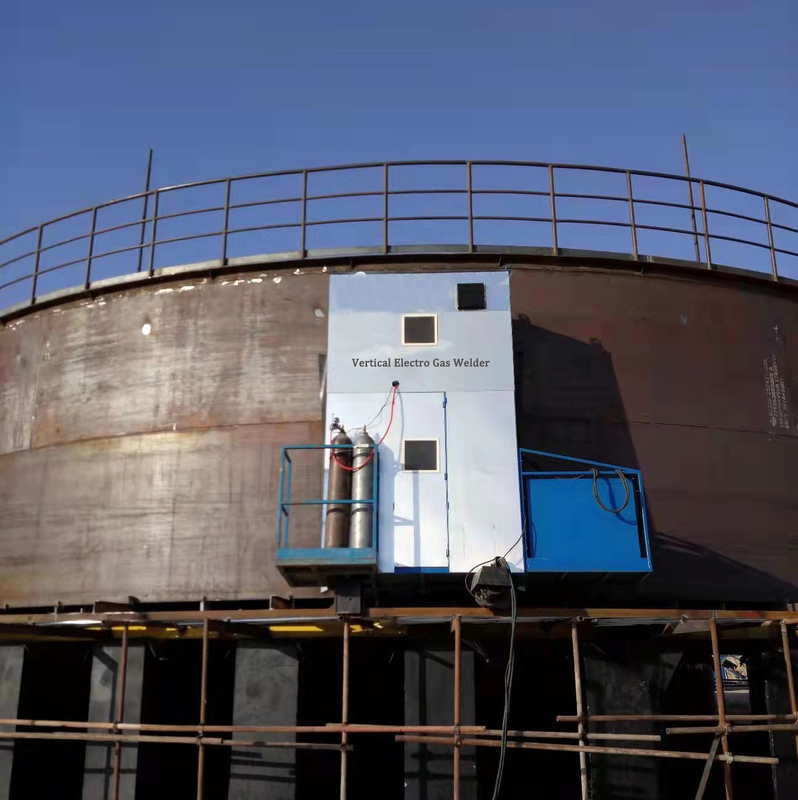

Customized Water Cooling Automatic Tank Welding Machine With High Performance

For the tank welding machine, we has been sold more than 20 countries in more than 1000 projects sites.We have confidence for the machine quality and after sale service. We can provide single side, double side crude oil, LNG tank, fuel tank, water tank horizontal seam, vertical seam and bottom plate/corner welding machine.In Middle East, we have sold to UAE, Saudi Arabia, Oman, Bahrain, Kuwait. In Africa, we have sold machine to Cameron, Sudan, Egypt, Senegal, Nigeria, Zambia, Ethiopia, Senegal, etc. We have sold to vietnam, Indonesia ,Malysia , Philippines ,Singapore,Mexco,Mogulia, Russia,etc

Reference Specification

Welding Process	Electrogas welding
Model	WEGW-I
Plate Thickness	8 - 45mm
Plate Material	Carbon steel
Groove	Single V groove Double V groove
Seam Position	Vertical Weld /3 G welding
Min Tank Diameter	Φ6.0m
Plate Width	1.6 - 3.0m (Can be customized )
Power Input	380V/3PH/50HZ (Can be customized )
Erection Method	Bottom To Top and bottom to top
Dimension(L x W x H)	4000mm x 1900mm x 1100mm
Gross Weight	1200kg

V, What we can bring to you?
1, Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2, We can provide all technical documents and advices to support you for construction procedure clearifications
3, We can support you to calculate the roughly construction time based one welding efficiency, the calculation of manpower needed, welding consumbles quantity
4, We can provide your suitable welding consumbles with much more competetive price from our long time business partner if you need.
5, We can provide site people training service, and operation service or manpower service or as a subcontractor.
Customized Water Cooling Automatic Tank Welding Machine With High Performance 7
