Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Carbon Steel Automatic Girth Welding Machine, Large Automatic Girth Welding Machine


Model NO.:	MSHW-I	Keywords:	Tank Girth Welding Machine
Plate Thickness:	8~45mm	Plate Material:	Carbon Steel, Stainless Steel
Welding Process:	Saw	Transport Package:	Container
Specification:	SGS, ISO9001, CE	Trademark:	WINCOO
Origin:	Nanjing, China	HS Code:	851531900
Supply Ability:	230 Set/Year	Cooling Way:	Water Cooling
Control:	Semi-Automatic	Style:	Hanging
Frequency Range:	Intermediate Frequency	Electric Current:	Inverter
Type:	Continuous Seam Welder	Customization:	Available \| Customized Request

Model NO.:	MSHW-I
Keywords:	Tank Girth Welding Machine
Plate Thickness:	8~45mm
Plate Material:	Carbon Steel, Stainless Steel
Welding Process:	Saw
Transport Package:	Container
Specification:	SGS, ISO9001, CE
Trademark:	WINCOO
Origin:	Nanjing, China
HS Code:	851531900
Supply Ability:	230 Set/Year
Cooling Way:	Water Cooling
Control:	Semi-Automatic
Style:	Hanging
Frequency Range:	Intermediate Frequency
Electric Current:	Inverter
Type:	Continuous Seam Welder
Customization:	Available \| Customized Request

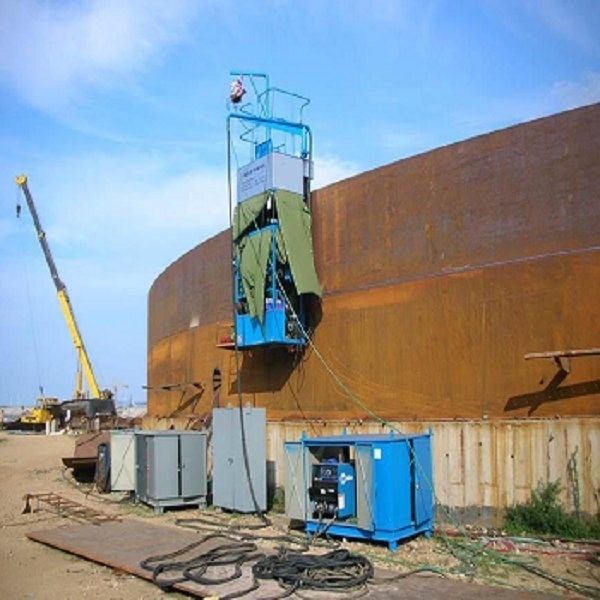

Carbon Steel Large Automatic Girth Welding Machine For Intermediate Frequency Range

For the tank welding machine, we has been sold more than 20 countries in more than 1000 projects sites.We have confidence for the machine quality and after sale service. We can provide single side, double side crude oil, LNG tank, fuel tank, water tank horizontal seam, vertical seam and bottom plate/corner welding machine.In Middle East, we have sold to UAE, Saudi Arabia, Oman, Bahrain, Kuwait. In Africa, we have sold machine to Cameron, Sudan, Egypt, Senegal, Nigeria,Zambia,Ethiopia,Senegal,etc. We have sold to vietnam, Indonesia , Malysia,Philippines,Singapore, Mexco,Mogulia, Russia,etc

Reference Parameter

Welding Process	SAW
Model	WSHW-I
Plate Thickness	8 - 45mm
Plate Material	Carbon steel, Stainless Steel
Groove	K groove
Seam Position	Girth weld/2G welding
Min Tank Diameter	Φ5.0m
Plate Width	1.5 - 2.5m (Can be customized )
Power Input	380V/3PH/50HZ (Can be customized )
Erection Method	Bottom To Top and top to bottom
Dimension(L x W x H)	1460mm x 988mm x 2760mm(if design change, will as per new design)
Gross Weight	800kg

What we can bring to you?

1, Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2, We can provide all technical documents and advices to support you for construction procedure clearifications
3, We can support you to calculate the roughly construction time based one welding efficiency, the calculation of manpower needed, welding consumbles quantity
4, We can provide your suitable welding consumbles with much more competetive price from our long time business partner if you need.
5, We can provide site people training service, and operation service or manpower service or as a subcontractor.
