Product Details
Certification: ISO 9001:2000
Payment & Shipping Terms
Model NO.: |
SQD-XXX-100S. F |
Max Height: |
>400mm |
Condition: |
New |
Keywords: |
Tank Jacks |
Engineer Oversea Service Is Available: |
More Than 5 Meter Tank |
Theory Lifting Capacity: |
123kn |
Total Height: |
3460 Mm |
Transport Package: |
Container |
Specification: |
SGS, ISO9001, CE |
Trademark: |
WINCOO |
Origin: |
China |
HS Code: |
8425421000 |
Supply Ability: |
5000 |
After-sales Service: |
Remote Instruction |
Warranty: |
90 Days |
Type: |
Hydraulic Jack |
Structure: |
Hydraulic Jack |
Capacity (Load): |
21-30T |
Power Source: |
Hydraulic |
Customization: |
Available | Customized Request |
Model NO.: |
SQD-XXX-100S. F |
Max Height: |
>400mm |
Condition: |
New |
Keywords: |
Tank Jacks |
Engineer Oversea Service Is Available: |
More Than 5 Meter Tank |
Theory Lifting Capacity: |
123kn |
Total Height: |
3460 Mm |
Transport Package: |
Container |
Specification: |
SGS, ISO9001, CE |
Trademark: |
WINCOO |
Origin: |
China |
HS Code: |
8425421000 |
Supply Ability: |
5000 |
After-sales Service: |
Remote Instruction |
Warranty: |
90 Days |
Type: |
Hydraulic Jack |
Structure: |
Hydraulic Jack |
Capacity (Load): |
21-30T |
Power Source: |
Hydraulic |
Customization: |
Available | Customized Request |

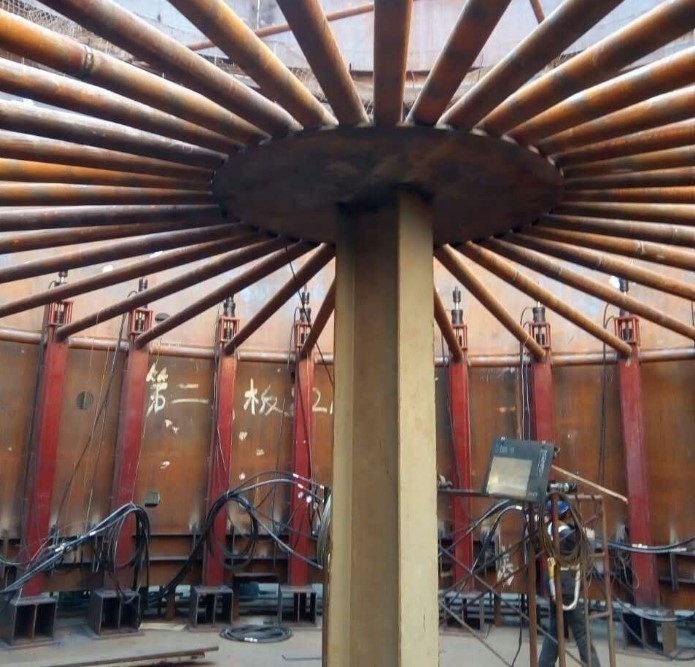

Hydraulic jacking equipment is a new and special lifting equipment powered by hydraulic oil. By pushing the reciprocating movement of the hydraulic cylinder piston, load conversion is carried out between the upper clamping mechanism connected with the upper end of the piston and the lower clamping mechanism connected with the lower part of the cylinder, so as to realize lifting.The hydraulic jacking equipment is a single-acting two-stage hydraulic cylinder, used for vertical take-off and landing work, return need external force or self-weight back.The equipment is compact, stable, easy to operate, adjustable load, fast installation, high synchronization accuracy.
Reference Parameter
| Maximum pressure | 25MPa |
| Power | 11KW |
| Rated oil flow | 40L/min |
| Motor rotate speed | 1470r/min |
| Oil tank capacity | 240L |
| System temperature | 20-60ºC |
| Oil filter precision | 20υm |
| Voltage | Main power supply 220V, 3 phase) |
| System oil type | L-HM46# antiwear hydraulic oil |
| Total weight | 370Kg |
| Outsize(mm) | 950*850*820 |
| Theory lifting capacity | 123KN |
| Rated lift capacity | 120KN |
| Rated oil pressure | 18MPa |
| Hydraulic stroke | 100±0.5mm |
| Glissade capacity | ≤5mm |
| Weight | ≤30Kg |
| Oil outlet | M16*1.5 |
| Installation size for jack base | Settle 4-M16 on the circumference of a φ120 circle |
| Installation size for up and down chuck | Settle 3 *16U hole on the circumference of a φ110 circle |
| Size(mm) | 138*138*500 |
| Suitable lifting rod | φ32round steel(45#) |
| Chuck device | Screw mechanism |
| Total height | 3460mm |
| Lifting rod height: | 3900mm |
| Slider stroke | 2630mm |
| Sliding block guide wheel quantity | 4 pcs |
| Lifting rod diameter | φ32mm |
| distance between expansion loop support to ground | 310mm |
| Size(mm) | 3900*300*300 |
