Model NO.: |
WQ-III |
Keywords: |
Tank Welding Tractor |
External Power Source: |
AC 220V 50/60 Hz |
Working Power Source: |
AC 20V |
Welding Speed: |
0~1650 Mm/Min |
Plate Thickness: |
3 Mm |
Transport Package: |
Export Package |
Specification: |
Stainless Steel |
Trademark: |
WINCOO |
Origin: |
China |
Supply Ability: |
3000 Sets/Month |
Cooling Way: |
Air Cooling |
Style: |
Portable |
Frequency Range: |
Intermediate Frequency |
Electric Current: |
DC |
Work Form: |
One-Body |
Type: |
Submerged-Arc Welder |
Customization: |
Available | Customized Request |
Model NO.: |
WQ-III |
Keywords: |
Tank Welding Tractor |
External Power Source: |
AC 220V 50/60 Hz |
Working Power Source: |
AC 20V |
Welding Speed: |
0~1650 Mm/Min |
Plate Thickness: |
3 Mm |
Transport Package: |
Export Package |
Specification: |
Stainless Steel |
Trademark: |
WINCOO |
Origin: |
China |
Supply Ability: |
3000 Sets/Month |
Cooling Way: |
Air Cooling |
Style: |
Portable |
Frequency Range: |
Intermediate Frequency |
Electric Current: |
DC |
Work Form: |
One-Body |
Type: |
Submerged-Arc Welder |
Customization: |
Available | Customized Request |

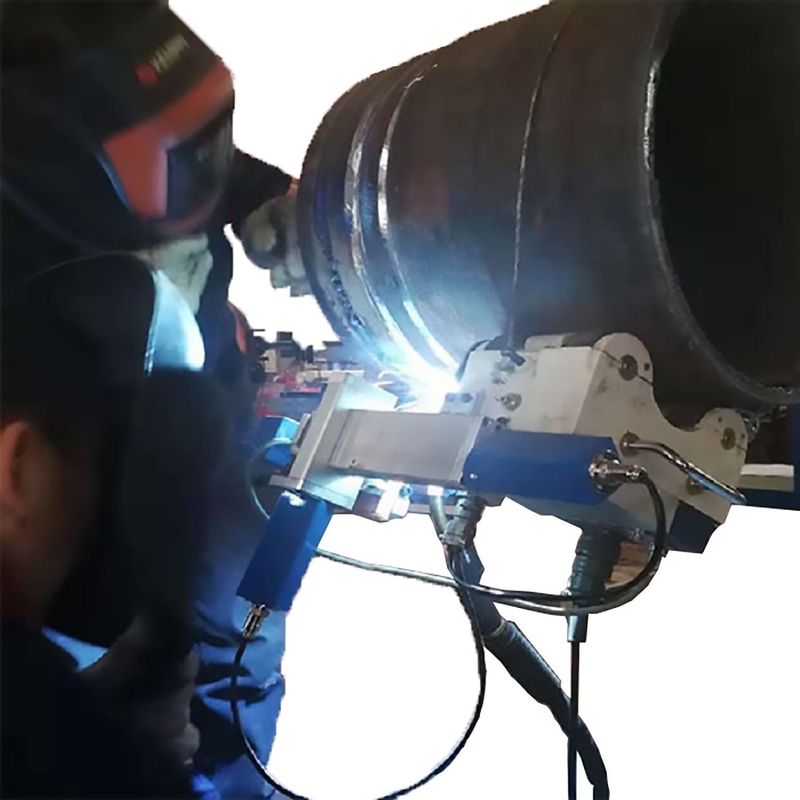

WQ-III is suitable for welding internal and external walls of pipelines. No rails are required and welding can be carried out along the arc surface of the workpiece.
1, WQ-III is swing automatic welding device, one welding can get a wider weld.
Suitable for pipe welding of various steel structures.
Components: welding gun swing device, slider, welding gun handle, control box, control panel and other accessories:
1, Knob for adjusting current and voltage: Turn the knob clockwise to increase the value (The tractor has two power plugs of 3P and 8P, when using 3P plug, the current and voltage adjustment knob is invalid, and then the current and voltage of the wire feeder must be adjusted; Current and voltage control knob is effective when using 8P plug)
Items | Parameter | Note | |
Tractor | Power supply | AC 220V | |
Size | 240×330×310 | W×L×H | |
Weight | 16Kg | Including swinger | |
Moving mode | Four-wheel drive | Magnet-wheel | |
Walking speed | 0∼700mm/min | ||
Swing motor | DC24V 18RPM | ||
Adjustable range of welding gun | Up and down | ||
Before and after | 85mm | ||
Operating Angle adjustment range | 360° | ||
Carry out Angle adjustment range | 0° | ||
Control | Operating function | Swing mode | ![]() |
Swing speed | 0-10RPM(Show with scale) | ||
Swing scope | 0-±10°(Show with scale) | ||
Left and right residence time adjustment | 0-2S(Show with scale) | ||
Central range of movement | 0-±8° | ||
Inching wire feeding | |||
Walking starts/stops | |||
Welding current/voltage control | |||
Choice of walking direction | |||
Walking speed regulation | 0∼1000mm/min(Show with scale) | ||
Welding/non-welding options |
A. Preparation for welding
Parts name | Qty | Unit | Note |
Walking welding tractor | 1 | set | |
Swinging nose | 1 | set | |
Power line | 1 | pcs | About 10-15m |
Welding torch signal cable | 1 | pcs | About 0.5m |
Swing signal line | 1 | pcs | About 0.5m |
Specification | 1 | pcs | |
Inner hexagon tool | 1 | set |
