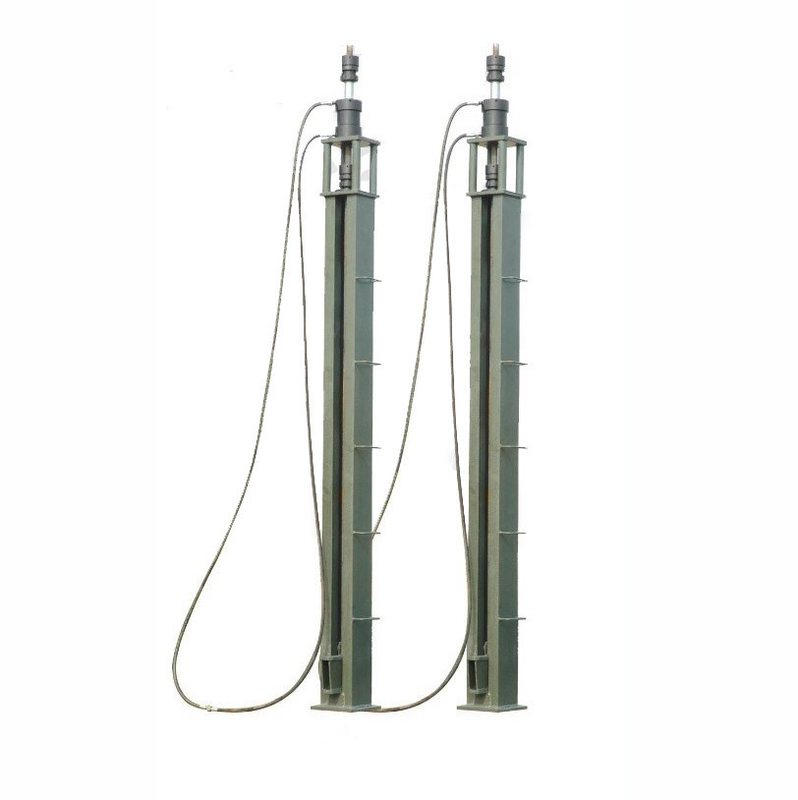

Remote Instruction Hydraulic Jacking System for Tank Construction Lifting Height 2.6m

Certification:CE, ISO 9001:2000
Product Details
Highlight:

Remote Instruction Hydraulic Jacking System

,

Lifting Height 2.6m Hydraulic Jacking System
Model NO.: SQD-XXX-100S. F
Max Height: >400mm
Condition: New
Engineer Oversea Service Is Available: More Than 5 Meter Tank
Key Words: Hydraulic Jack
Lifting Weight: 12t-100t
Lifting Height: 2.6m
Oil Pressure: 18-25MPa
Transport Package: Container
Specification: Steel
Trademark: WINCOO
Origin: China
HS Code: 8425421000
Supply Ability: 5000
After-Sales Service: Remote Instruction
Warranty: 2 Year
Type: Hydraulic Jack
Structure: Hydraulic Jack
Capacity (Load): 12 Tons To 100 Tons
Power Source: Hydraulic
Customization: Available | Customized Request
Product Description
Remote Instruction Hydraulic Jacking System for Tank Construction Lifting Height 2.6m 0
Hydraulic jacking equipment is a new and special lifting equipment powered by hydraulic oil. By pushing the reciprocating movement of the hydraulic cylinder piston, load conversion is carried out between the upper clamping mechanism connected with the upper end of the piston and the lower clamping mechanism connected with the lower part of the cylinder, so as to realize lifting.The hydraulic jacking equipment is a single-acting two-stage hydraulic cylinder, used for vertical take-off and landing work, return need external force or self-weight back.The equipment is compact, stable, easy to operate, adjustable load, fast installation, high synchronization accuracy.
Remote Instruction Hydraulic Jacking System for Tank Construction Lifting Height 2.6m 1

Reference Parameter


I. PUMP STATION(YB-40)
Maximum pressure 25MPa
Power 11KW
Rated oil flow 40L/min
Motor rotate speed 1470r/min
Oil tank capacity 240L
System temperature 20-60ºC
Oil filter precision 20υm
Voltage Main power supply 220V, 3 phase)
System oil type L-HM46# antiwear hydraulic oil
Total weight 370Kg
Outsize(mm) 950*850*820
II. SQD-120-100S.F JACKS
Theory lifting capacity 123KN
Rated lift capacity 120KN
Rated oil pressure 18MPa
Hydraulic stroke 100±0.5mm
Glissade capacity ≤5mm
Weight ≤30Kg
Oil outlet M16*1.5
Installation size for jack base Settle 4-M16 on the circumference of a φ120 circle
Installation size for up and down chuck Settle 3 *16U hole on the circumference of a φ110 circle
Size(mm) 138*138*500
Suitable lifting rod φ32round steel(45#)
Chuck device Screw mechanism
III. JACK SUPPORT(TSJ-120-2600L)
Total height 3460mm
Lifting rod height: 3900mm
Slider stroke 2630mm
Sliding block guide wheel quantity 4 pcs
Lifting rod diameter φ32mm
distance  between  expansion  loop  support  to  ground 310mm
Size(mm) 3900*300*300

Remote Instruction Hydraulic Jacking System for Tank Construction Lifting Height 2.6m 2
Remote Instruction Hydraulic Jacking System for Tank Construction Lifting Height 2.6m 3
Remote Instruction Hydraulic Jacking System for Tank Construction Lifting Height 2.6m 4
Remote Instruction Hydraulic Jacking System for Tank Construction Lifting Height 2.6m 5
VI. WHAT WE CAN BRING TO YOU?
1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor.
