28 Rollers Pipe Roller Cradle and Construction Basket for Pipeline Construction Machinery

Product Details

Place of Origin: Jiangsu, China

Brand Name: WINCOO

Payment & Shipping Terms

Minimum Order Quantity: 2 sets

Price: $8,900.00/sets 2-99 sets

Packaging Details: Export package

Supply Ability: 3000 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Condition:	New	Warranty:	1 Year
Applicable Industries:	Manufacturing Plant, Construction Works	Weight (KG):	100
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Motor
UNIQUE SELLING POINT:	High Load Moment	Product Name:	Pipeline Roller Cradle
Max Lifting Capacity:	55000 Kg	Total Rollers:	28
Color:	Optional

Condition:	New
Warranty:	1 Year
Applicable Industries:	Manufacturing Plant, Construction Works
Weight (KG):	100
Showroom Location:	None
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	Motor
UNIQUE SELLING POINT:	High Load Moment
Product Name:	Pipeline Roller Cradle
Max Lifting Capacity:	55000 Kg
Total Rollers:	28
Color:	Optional

28 Rollers Pipe Roller Cradle and Construction Basket for Pipeline Construction Machinery

WINCOO ENGINEERING CO.,LTD

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

Pipeline Roller Cradle is a special hoisting and auxiliary walking equipment used in the lower ditch operation after the completion of pipeline welding.

Product Features

1. Reasonable design, light weight, strong lifting capacity, safe and reliable

2. The pipe weight isevenly distributed on the circumference of the wire rope roller

3. Roller bearing adopts bearings with large radial and axial bearing capacity, with sealing, waterproof and sand control functions

4. The roller can move flexibly and freely to ensure the smooth lower groove of the pipeline

5. Outside the roller is a special polyurethane hanging wheel with good adhesion and high abrasion resistance, which can effectively protect the anti-corrosion layer of the pipeline.

Product Parameters

Model	Applicable pipe range(mm)	Temperature of surroundings (℃)	Total rollers	Wire rope diameter (mm)	Max lifting capacity	Dimension(m)	Weight (kg)
HG6-12	Φ152~305	-30~+70	28	18	8000	0.50.50.5	450
HG12-24	Φ305~610	-30~+70	28	22	13000	0.70.70.8	590
HG24-36	Φ610~914	-30~+70	28	22	35000	1.01.00.8	1500
HG36-48	Φ914~1219	-30~+70	28	30	45000	1.41.41.0	2200
HG48-60	Φ1219~1524	-30~+70	28	30	55000	1.61.41.0	2900

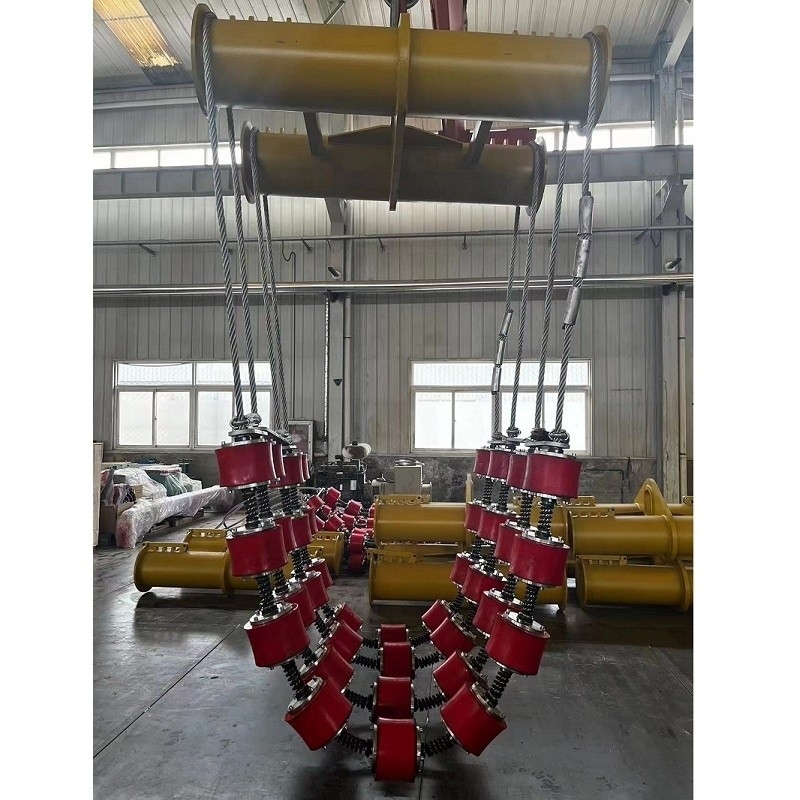

Product Photos

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
