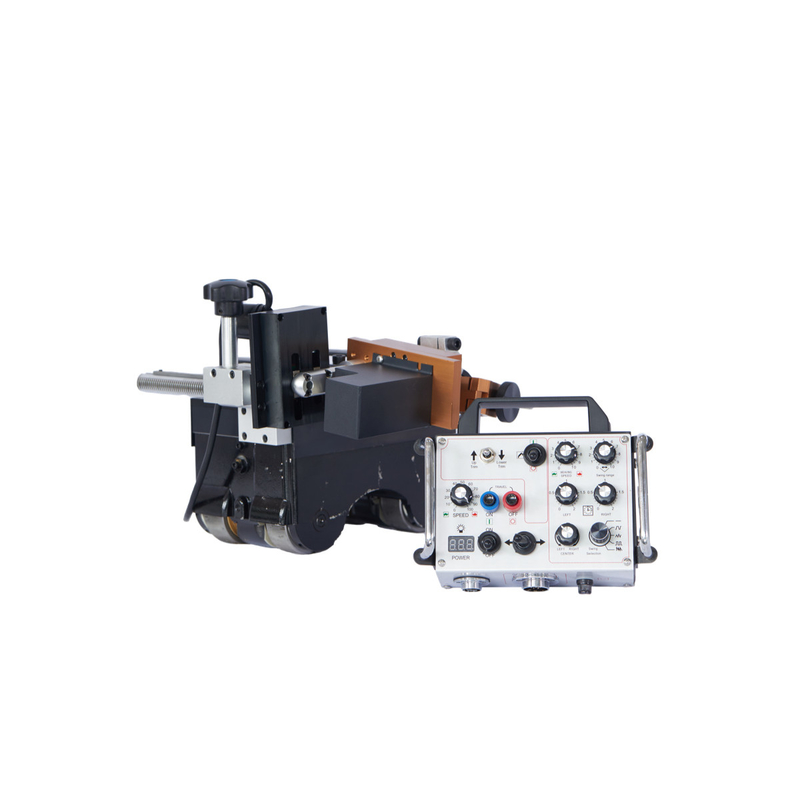

Automation Accurate Control TIG Orbital Welding System With Magnetic Trolley
Place of Origin:Jiangsu, China
Brand Name:WINCOO
Price:$6,150.00/sets 1-999 sets
Product Details
Highlight:
Automation Orbital Welding System
,Accurate Control Orbital Welding System
,Magnetic Trolley Automatic Orbital Welding
Applicable Industries:
Manufacturing Plant, Construction Works
Showroom Location:
None
Video Outgoing-Inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
Motor
Condition:
New
Dimensions:
24*33*31 Cm
Weight:
16
Use:
Pipe Welding Machine
Voltage:
220V
Warranty:
1 Year
Key Selling Points:
Long Service Life
Weight (KG):
16 KG
Product Name:
Orbital Pipe Welding Machine
Welding Method:
Automation TIG Welding
Application:
Pipe Construction
Shape Of Tube:
Round
After-Sales Service:
Video Technical Support
Moving Mode:
Four-wheel Drive
Walking Speed:
0-700mm/min
Swing Motor:
DC24V 18RPM
Product Description
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.
WQ-III magnetic type orbital pipeline welding machine is suitable for welding internal and external walls of pipelines. No rails are required and welding can be carried out along the arc surface of the workpiece.
CO2 automatic welding tractor is widely used in ships, bridges, locomotives, steel structure, petrochemical industry and other industries, suitable for a variety of welding structures, such as: reinforcement plate, rib plate, cross parts of the welding, box beam welding, etc.
|
Reference Product Parameter
|
|
|
|
|||
|
Items
|
|
Parameter
|
Note
|
|||
|
Tractor
|
Power supply
|
AC 220V
|
|
|||
|
|
Size
|
240×330×310 mm
|
W×L×H
|
|||
|
|
Weight
|
16 Kg
|
Including swinger
|
|||
|
|
Moving mode
|
Four-wheel drive
|
Magnet-wheel
|
|||
|
|
Walking speed
|
0∼700mm/min
|
|
|||
|
Control
|
Swing motor
|
DC24V 18RPM
|
|
|||
|
|
Adjustable range of welding gun
|
Up and down
|
|
|||
|
|
|
Before and after
|
85mm
|
|||
|
|
|
Operating Angle adjustment range
|
360°
|
|||
|
|
|
Carry out Angle adjustment range
|
0°
|
|||
|
|
Operating function
|
Swing mode
|
|
|||
|
|
|
Swing speed
|
0-10RPM(Show with scale)
|
|||
|
|
|
Swing scope
|
0-±10°(Show with scale)
|
|||
|
|
|
Left and right residence time adjustment
|
0-2S(Show with scale)
|
|||
|
|
|
Central range of movement
|
0-±8°
|
|||
|
|
|
Inching wire feeding
|
|
|||
|
|
|
Walking starts/stops
|
|
|||
|
|
|
Welding current/voltage control
|
|
|||
|
|
|
Choice of walking direction
|
|
|||
|
|
|
Walking speed regulation
|
0∼1000mm/min(Show with scale)
|
|||
|
|
|
Welding/non-welding options
|
|
|||
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
