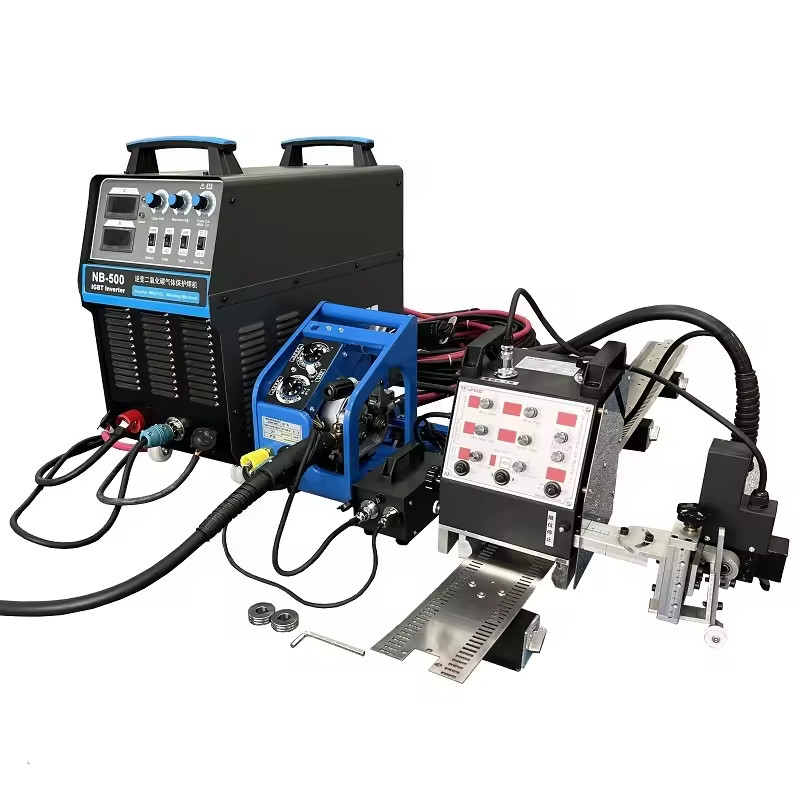

Tank Vertical Welding Machine for Tank Construction Tig/Mig/MAG/SAW Options

Product Details

Place of Origin: Jiangsu, China

Brand Name: WINCOO

Payment & Shipping Terms

Price: $4,200.00/sets 1-99 sets

Get Best Price

Product Details

Product Description

Highlight:

Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Construction Works	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Motor	Condition:	New
Forming Time:	Standard	Welding Mode:	Tig/Mig/MAG/SAW(optional)
Welding Diameter:	80mm	Dimensions:	245520290mm
Use:	Tank Seam Welding	Voltage:	220V
Warranty:	1 Year	Key Selling Points:	Automatic
Weight (KG):	10.4 KG	Power (kW):	4
Product Name:	Tank Welding Carriage	Application:	Tank Construction
Working Mode:	Auto Seam Welder	Welding Method:	MAG Welding
COLOR:	CUSTOMER	Welding Material:	Carbon Steel Stainless Steel Aluminum

Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Construction Works
Showroom Location:	None
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	Motor
Condition:	New
Forming Time:	Standard
Welding Mode:	Tig/Mig/MAG/SAW(optional)
Welding Diameter:	80mm
Dimensions:	245520290mm
Use:	Tank Seam Welding
Voltage:	220V
Warranty:	1 Year
Key Selling Points:	Automatic
Weight (KG):	10.4 KG
Power (kW):	4
Product Name:	Tank Welding Carriage
Application:	Tank Construction
Working Mode:	Auto Seam Welder
Welding Method:	MAG Welding
COLOR:	CUSTOMER
Welding Material:	Carbon Steel Stainless Steel Aluminum

Tank Vertical Welding Machine for Tank Construction Tig/Mig/MAG/SAW Options

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

A simple, inexpensive and easy to use straight or flexible rail welder for tank welding.

Reference Product Parameter
Items	Parameter			Notes
Items		Straight rail type	Soft rail type	Notes
External power source	AC 220V 50/60 Hz			Three-hole
Working power source	AC 20V			Use of each driver
Dimensions	*245520280cm*	*245520290cm*	*Lengthwidthheight*
Weight	8.6 kg	10.4 kg	Main host
Track type	Linear motion guide	Self-aligning flexible slide rails
Drive mode	Gear drive	Sprocket drive
Welding speed	0~1650mm/min			Fastest
The thinnest adsorption plate thickness	3mm			Magnetically attractive metal
Welding gun adjustment range	65mm			Inching for up and down
		80mm			Inching for left and right
		+ -60°			Swinging angle
		+ -25°			Marching Angle
		Stop left, stop right			Swinging form
Operating function	0-100mm/min			Swinging speed
		0-2.5s			Left and right residence time
		+-14mm			Swinging width
		+-5mm			Center for compensation

Company Profile

We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipment/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
