Orbital Automatic Pipe Welding Machine GTAW/TIG for Magnetic Welding Applications

Product Details

Place of Origin: Jiangsu, China

Brand Name: wincoo

Payment & Shipping Terms

Price: $4,850.00/sets 1-99 sets

Packaging Details: carton

Supply Ability: 3000 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:

Condition:	New	Type:	Pipe Branching Machine
Video Outgoing-inspection:	Not Available	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	Contact Us
Core Components:	Contact Us	Arc Current:	500A
Motor Type:	AC Motor	Dimensions:	243331 Cm
Use:	Welding Machine	Voltage:	220v, 220V
Power:	9 Kva	Weight (KG):	200 KG
Warranty:	1 Year	Key Selling Points:	High-accuracy
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction Works	Showroom Location:	Egypt, Canada, Italy, France, Japan
Application:	Pipe Construction	Walking Speed:	0-700mm/min
Swing Motor:	DC24V 18RPM	Usage:	Pipe Welding Machine
After-sales Service:	Video Technical Support	Brand:	WINCOO
Function:	Magnetic Welding	Product Name:	Orbital Welding Machine
Efficiency:	90%

Condition:	New
Type:	Pipe Branching Machine
Video Outgoing-inspection:	Not Available
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	Contact Us
Core Components:	Contact Us
Arc Current:	500A
Motor Type:	AC Motor
Dimensions:	243331 Cm
Use:	Welding Machine
Voltage:	220v, 220V
Power:	9 Kva
Weight (KG):	200 KG
Warranty:	1 Year
Key Selling Points:	High-accuracy
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction Works
Showroom Location:	Egypt, Canada, Italy, France, Japan
Application:	Pipe Construction
Walking Speed:	0-700mm/min
Swing Motor:	DC24V 18RPM
Usage:	Pipe Welding Machine
After-sales Service:	Video Technical Support
Brand:	WINCOO
Function:	Magnetic Welding
Product Name:	Orbital Welding Machine
Efficiency:	90%

Orbital Automatic Pipe Welding Machine GTAW/TIG for Magnetic Welding Applications

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

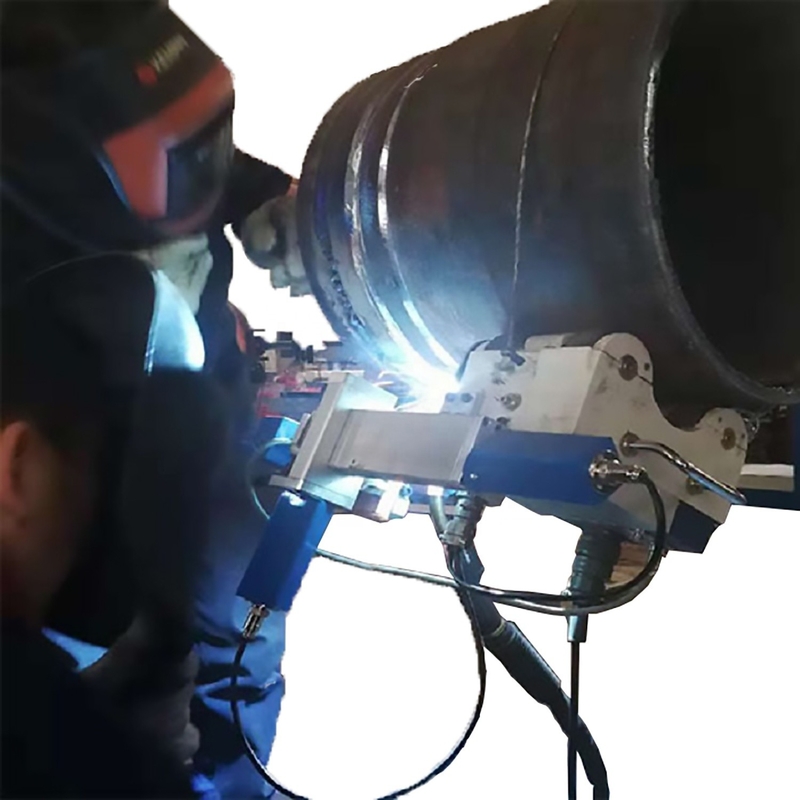

WQ-III magnetic type orbital pipeline welding machine is suitable for welding internal and external walls of pipelines. No rails are required and welding can be carried out along the arc surface of the workpiece.

CO2 automatic welding tractor is widely used in ships, bridges, locomotives, steel structure, petrochemical industry and other industries, suitable for a variety of welding structures, such as: reinforcement plate, rib plate, cross parts of the welding, box beam welding, etc.

Reference Product Parameter
Items			Parameter	Note
Tractor	Power supply	AC 220V
		Size	240×330×310 mm	W×L×H
		Weight	16 Kg	Including swinger
		Moving mode	Four-wheel drive	Magnet-wheel
		Walking speed	0∼700mm/min
Control	Swing motor	DC24V 18RPM
		Adjustable range of welding gun	Up and down
				Before and after	85mm
				Operating Angle adjustment range	360°
				Carry out Angle adjustment range	0°
		Operating function	Swing mode
				Swing speed	0-10RPM(Show with scale)
				Swing scope	0-±10°(Show with scale)
				Left and right residence time adjustment	0-2S(Show with scale)
				Central range of movement	0-±8°
				Inching wire feeding
				Walking starts/stops
				Welding current/voltage control
				Choice of walking direction
				Walking speed regulation	0∼1000mm/min(Show with scale)
				Welding/non-welding options

We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
