200 KG Weight Pipe Construction Automatic Magnetic Pipeline/pipe Orbital Welding Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: wincoo

Payment & Shipping Terms

Price: $6,150.00/sets 1-999 sets

Packaging Details: carton

Supply Ability: 3000 Set/Sets per Month

Get Best Price

Chat now

Product Details

Product Description

Highlight:

Condition:	New	Type:	Pipe Branching Machine
Video Outgoing-inspection:	Not Available	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	Contact Us
Core Components:	Contact Us	Arc Current:	500A
Motor Type:	AC Motor	Dimensions:	243331 Cm
Use:	Welding Machine	Voltage:	220v, 220V
Power:	9 Kva	Weight (KG):	200 KG
Warranty:	1 Year	Key Selling Points:	High-accuracy
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction Works	Showroom Location:	Egypt, Canada, Italy, France, Japan
Application:	Pipe Construction	Walking Speed:	0-700mm/min
Swing Motor:	DC24V 18RPM	Usage:	Pipe Welding Machine
After-sales Service:	Video Technical Support	Brand:	WINCOO
Function:	Magnetic Welding	Product Name:	Orbital Welding Machine
Efficiency:	90%

Condition:	New
Type:	Pipe Branching Machine
Video Outgoing-inspection:	Not Available
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	Contact Us
Core Components:	Contact Us
Arc Current:	500A
Motor Type:	AC Motor
Dimensions:	243331 Cm
Use:	Welding Machine
Voltage:	220v, 220V
Power:	9 Kva
Weight (KG):	200 KG
Warranty:	1 Year
Key Selling Points:	High-accuracy
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction Works
Showroom Location:	Egypt, Canada, Italy, France, Japan
Application:	Pipe Construction
Walking Speed:	0-700mm/min
Swing Motor:	DC24V 18RPM
Usage:	Pipe Welding Machine
After-sales Service:	Video Technical Support
Brand:	WINCOO
Function:	Magnetic Welding
Product Name:	Orbital Welding Machine
Efficiency:	90%

200 KG Weight Pipe Construction Automatic Magnetic Pipeline/pipe Orbital Welding Machine

WINCOO ENGINEERING CO.,LTD

Electric type

Manual type

Product Introduction

WQ-III is suitable for welding internal and external walls of pipelines. No rails are required and welding can be carried out along the arc surface of the workpiece.

CO2 automatic welding tractor is widely used in ships, bridges, locomotives, steel structure, petrochemical industry and other industries, suitable for a variety of welding structures, such as: reinforcement plate, rib plate, cross parts of the welding, box beam welding, etc.. Its main advantages are:

1, Reduce labor intensity and improve working environment;

2, To improve the working efficiency, it is 1.5 times of manual welding;

3, Avoid the poor quality of welding seam caused by human factors, the defect rate of manual welding is about 20%, and the automatic welding tractor will not produce welding defect rate because of artificial welding. Therefore, its comprehensive benefit is nearly 200% higher than that of manual welding;

4, High degree of automation to ensure the stability of welding quality;

5, Simple and convenient operation, do not need very skilled technical workers.

Product Features

1, WQ-III is swing automatic welding device, one welding can get a wider weld.

2, Swing speed, swing range, center position and left and right residence time can be adjusted, suitable for various specifications of the weld.

3, Small size, light weight, easy to install and move, unskilled workers can also carry out welding.

4, Permanent magnet is installed to avoid welding line disconnection during welding.

Application Environment

Suitable for pipe welding of various steel structures.

Major Components

Components: welding gun swing device, slider, welding gun handle, control box, control panel and other accessories:

1, Swing device: used to drive the welding gun for pendulum swing welding

2. Driving part: the driving device of the trolley is composed of four magnetic wheels, helical gears, chains and sprockets

3, Slider part: used to adjust the position of the welding gun, you can fine-tune the position before and after when welding.

4, welding gun fixture: welding gun clamping device, it can adjust the Angle of the welding gun.

5, control box: All movements of the tractor can be adjusted. For details, refer to the operation method of the control panel

Control Panel Introduction

1, Knob for adjusting current and voltage: Turn the knob clockwise to increase the value (The tractor has two power plugs of 3P and 8P, when using 3P plug, the current and voltage adjustment knob is invalid, and then the current and voltage of the wire feeder must be adjusted; Current and voltage control knob is effective when using 8P plug);

2, Selection knob for welding/non-welding: the knob must be in the welding position to weld;

3, Point feed: manual wire feed device;

4, Walking switch: control the car walking and stopping, if the "welding/non-welding" switch is placed in the "non-welding" position, open the walking switch, the tractor only walking without welding;

5, Walking speed adjustment: the adjusting knob of tractor walking speed. It is recommended to adjust the tractor walking speed after turning on the walking switch;

6, Choice of walking direction: choose to walk left or right;

7, Power switch and indicator light: the indicator light is on after the power is energized;

8, Swing control part: it can adjust swing speed, swing range, left and right stay time, center position and swing mode;

Product Parameters

Items			Parameter	Note
Tractor	Power supply	AC 220V
		Size	240×330×310 mm	W×L×H
		Weight	16 Kg	Including swinger
		Moving mode	Four-wheel drive	Magnet-wheel
		Walking speed	0∼700mm/min
Control	Swing motor	DC24V 18RPM
		Adjustable range of welding gun	Up and down
				Before and after	85mm
				Operating Angle adjustment range	360°
				Carry out Angle adjustment range	0°
		Operating function	Swing mode
				Swing speed	0-10RPM(Show with scale)
				Swing scope	0-±10°(Show with scale)
				Left and right residence time adjustment	0-2S(Show with scale)
				Central range of movement	0-±8°
				Inching wire feeding
				Walking starts/stops
				Welding current/voltage control
				Choice of walking direction
				Walking speed regulation	0∼1000mm/min(Show with scale)
				Welding/non-welding options

Installation and Packing List

A. Preparation for welding

1, The necessary tools for welding are welding machines and wire feeding devices;

2, Special control cables (AC 220V) are required. Different welding power supplies require different cables;

3, CO2 tanks for welding are required;

4, CO2 automatic welding torch;

5, Other necessary tools;

B. Tractor connection method

1, Install the tractor and place the tractor on the working surface;

2, Install the wire on the wire feed tray and pull the wire to the end of the torch;

3, The end of the torch is connected to the wire feeder;

4, The control power supply is connected to the 8P port of the control panel of the tractor;

5, Control power cable is connected to AC 220;

6, The special control cable has four joints, one is connected to 220V power supply, the other is connected to welding car, and the other two are respectively welding machine and wire transfer machine.

C. Packing List
Parts name	Qty	Unit	Note
Walking welding tractor	1	Set
Swinging nose	1	Set
Power line	1	Pcs	About 10-15 m
Welding torch signal cable	1	Pcs	About 0.5 m
Swing signal line	1	Pcs	About 0.5 m
Specification	1	Pcs
Inner hexagon tool	1	Set

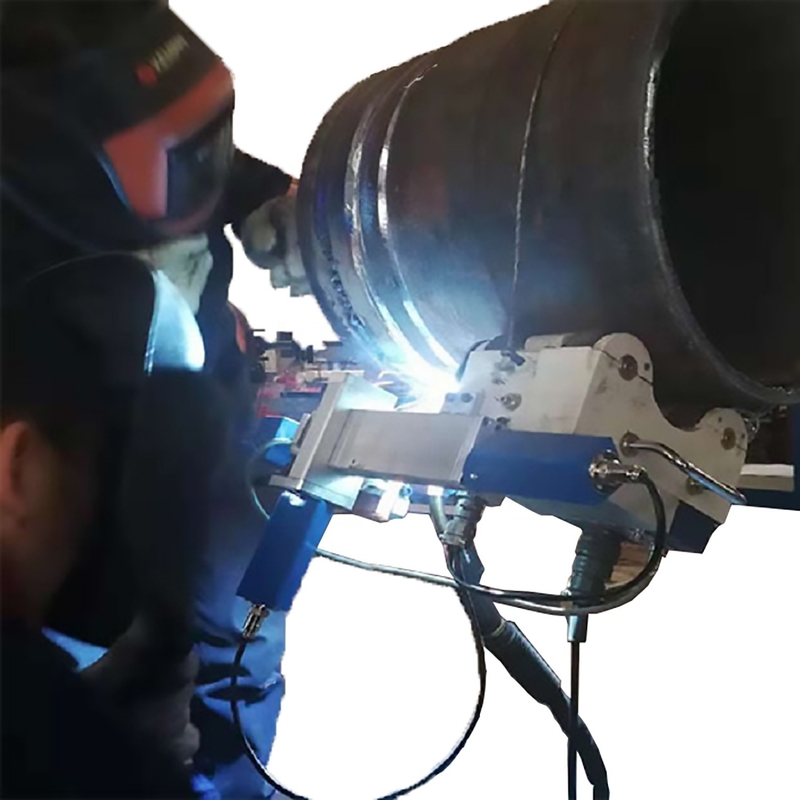

Product Photos

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
