Customized Stainless Steel Pipeline Beveling Machine Perfect for Pipeline Projects
Place of Origin:Jiangsu, China
Brand Name:WINCOO
Price:$56,890.00/sets >=1 sets
Supply Ability:3000 Set/Sets per Month
Product Details
Condition:
New
Video Outgoing-Inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC, Motor, Gear
Power (KW):
133
Weight (KG):
4500
Key Selling Points:
Competitive Price
Warranty:
1 Year
Applicable Industries:
Manufacturing Plant, Construction Works
Showroom Location:
None
Product Name:
Pipe Beveling Machine
After-Sales Service Provided:
Online Support
Cutting Material:
Metal Stainless Steel Carbon Steel
Cutting Mode:
Plasma Cutting+ Flame Cutting
Color:
Customized
Product Description
WINCOO ENGINEERING CO.,LTD
WINCOO Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.
Facing/Beveling machine is a special pipe end processing equipment for long distance pipeline construction. It can process any kinds of bevels quickly to meet different welding craft demands, instead of manual beveling to get higher efficiency. It is also a necessary matching tool for internal welding or fully automatic welding.
Electrical engine power unit is also special designed for offshore pipeline construction, which can reduce pollution for vessel cabin.
Electrical engine power unit is also special designed for offshore pipeline construction, which can reduce pollution for vessel cabin.
General Information
1, 8" to 56" pipe diameter facing machine can be available.
2, Machining any kinds of bevels accurately.
3, High speed beveling, high efficiency and energy saving
4, Big cutting volume, average using time for each pipe end is 1 to 2 min.
5, Hydraulic unit driving by diesel engine be used for onshore pipeline construction/Hydraulic unit driving by electrical engine be used for offshore pipeline construction.
Product Parameters
Model | HGK814 | HGK2026 | HGK2432 | HGK3240 | HGK3648 | HGK4856 | |||||
Pipe size(in) | 8~14 | 20~26 | 24~32 | 32~40 | 36~48 | 48~56 | |||||
Pipe Thickness (mm) | 10~22 | 10~22 | 14.6~30 | 14.6~30 | 14.6~50 | 14.6~50 | |||||
Shaft Speed (rpm) | 0~40 | 0~40 | 0~40 | 0~40 | 0~40 | 0~40 | |||||
Shaft Feed (mm/min) | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | |||||
Tool apron qty | 2~3 | 3~4 | 4 | 4 | 4 | 4 | |||||
Cutting Stroke (mm) | 90 | 90 | 90 | 90 | 90 | 90 | |||||
Transmission type | Hydraulic motor or electric drive | ||||||||||
Feed transmission | Hydraulic Cylinder | ||||||||||
Weight (t) | 1.2 | 2.5 | 3.5 | 4 | 4.2 | 4.5 | |||||
Dimension (mm) | 1900x800x1050 | 2100x950x1250 | 2900x1000x1450 | 3256x1952x1776 | 3459x2002x2002 | 3332x1972x2165 | |||||
Hydraulic Power Station | HPS133 | HPS133 | HPS133 | HPS133 | HPS133 | HPS133 | |||||
Product Features
1, Adopt flexible transmitting system to combine hydraulic power plant and machine set to meet moving standard
2, Main driving system adopt hydraulic driving and mechanism transmitting driving rotate plate, which can conquer impacts of load and impact wave. features high rigid, and stable and reliable cutting.
3, Feeding transmitting system adopt hydraulic system. features high feeding precision and big force.
4, Main transmitting and feeding movement adopt closed type feedback system, features high bevel volume and high efficiency.
5, The overall system adopt pilot hydraulic control and plate control components, features simple, high automatics, reliable, easy operation and maintenance.
6, Clean type quick coupler could reduce pollute hydraulic oil.
7, Diesel engine is mounted with throttle automatic adjusting device, except beveling works, diesel engine will be in idle speed situation, could greatly save energy.
8, System own temperature compensating function, with quick response ability.
9, Hydraulic system owns pre-heating and cooling function, which could suitable for very cold or hot, wet area, which could improve work efficiency.
Product Major Component
I. Technical point of machine set
1, Good centralization ability, high speed and big force expansion, could ensure stable clamp during cutting. Through add or reduce connecting rods can make clamp section meet different pipe diameters.
2, Tools adopt imitation technology, could cut against pipe end according to pipe roundness, ensure bevels shape and accuracy. Compound blade rod have been adopted which could finish any kinds of compound bevels according to different match. See Illustration 9 and 10.
3, Adopt famous brand alloy blade, features high cutting efficiency and long lifetime. See Illustration 11
4, Adopt unique invented rotating plate driving and feeding driving, form a definite mechanical and hydraulic feedback system, use small flow oil pump, could offer stable cutting, avoid blade crash and engine stuffy.
II. Key point for operating
1, Lift the facing machine in front of pipe end by hoisting equipment, insert the clamp section into the pipe, operate tension joystick, putting all clamp shoes supporting against the internal of pipe, make sure clamp section is fixed in the center of the pipe.
2, Operate quick feeding joystick, making rotate plate near the pipe end quickly. Operate main shaft rotate plate joystick, main shaft rotate plate will take bevel tools to rotate as per set speed, then operate main shaft rotate plant feeding joystick to start the bevel works.
3, After beveling work, operate main shaft rotate plate joystick to stop feeding, put the rotate plate turning 2 to 4 circles in idle speed to accurate the pipe end, stop rotate plate, speed up return rotate speed, and stop, release the clamp section, and move to the next joint.
III. Power unit
Power plant is consist of engine, hydraulic pump, hydraulic oil tank, diesel tank, radiator, filter system, hydraulic hose, operating panel, etc. Power plant connect with machine set by quick coupler, which is reliable and easy for operating.

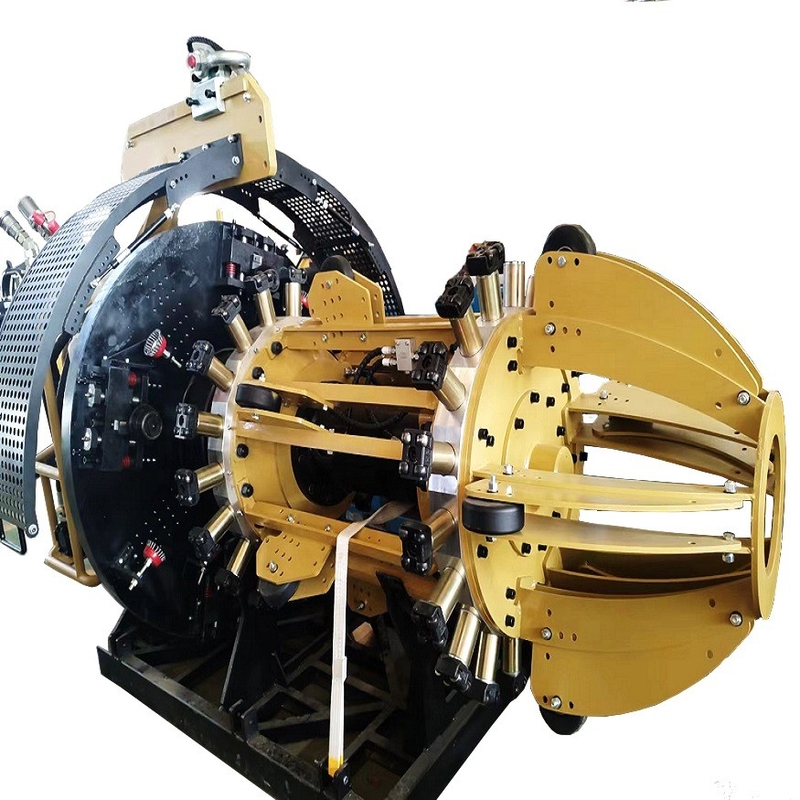

Product Photos
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
