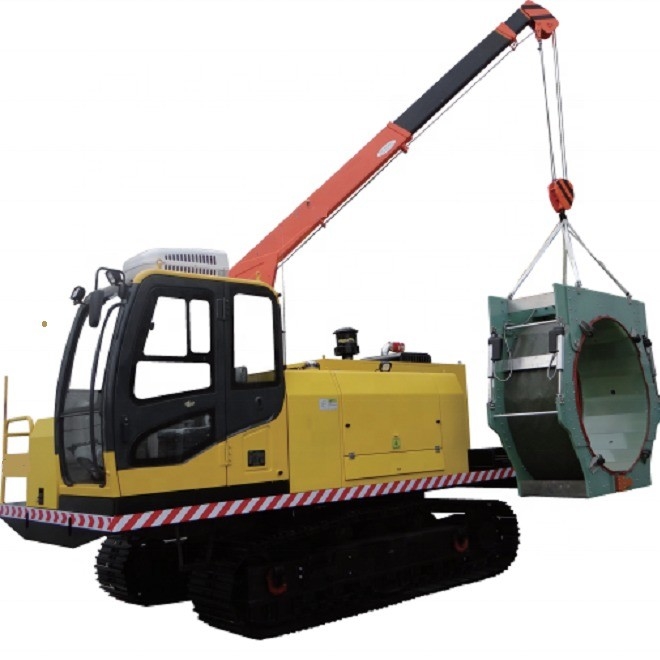

Medium Frequency Pipeline Preheat Tractor with Power Source Working Station

Product Details

Place of Origin: Jiangsu, China

Brand Name: WINCOO

Payment & Shipping Terms

Price: $116,800.00/sets 1-99 sets

Packaging Details: Export package

Supply Ability: 3000 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Medium Frequency Pipeline Preheat Tractor, Power Source Pipeline Preheat Tractor, Medium Frequency Pipeline Heating Equipment


Condition:	New	Warranty:	1 Year
Applicable Industries:	Manufacturing Plant, Construction Works	Weight (KG):	13000
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year	Core Components:	Engine, Gearbox, Motor, Pump
UNIQUE SELLING POINT:	High Operating Efficiency	Product Name:	Medium Frequency Heating Tractor
Application:	Pipeline Constructure	After-sales Service Provided:	VIDEO SUPPORT
Keywords:	Pipeline Heating Machine

Condition:	New
Warranty:	1 Year
Applicable Industries:	Manufacturing Plant, Construction Works
Weight (KG):	13000
Showroom Location:	None
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year
Core Components:	Engine, Gearbox, Motor, Pump
UNIQUE SELLING POINT:	High Operating Efficiency
Product Name:	Medium Frequency Heating Tractor
Application:	Pipeline Constructure
After-sales Service Provided:	VIDEO SUPPORT
Keywords:	Pipeline Heating Machine

Medium Frequency Pipeline Preheat Tractor with Power Source Working Station

WINCOO ENGINEERING CO.,LTD

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

Medium Frequency Heating Tractor is Pipe heating before pipe welding. It has the ability to work in the wild (plateau, mountain, desert, loose soil, water network and cold zone). Walking ability, power generation capacity, pipeline heating capacity, crane working ability, all are excellent.

The machine is an addition to the HG series of mobile power stations with medium frequency heating machine.

Product Features

Crawler walking Tractor,Using hydraulic drive,Max climb capability 25°；The brake system uses the world's most advanced controls.

Medium Frequency Heating power supply use IGBT Inverter power supply, Air cooling. Inverter power supply: work and power, temperature co-movement is very well. Accurate and stable control of heating temperature through automatic power and temperature control system. The variable frequency power supply has the function of variable frequency/load change adaptation, which can maintain the best matching state between the power supply and the workpiece, including no-load operation. The built-in intelligent control system and external thermocouple or infrared thermometer feedback excellent cooperation, can easily adjust the temperature or power-time parameters, rapid temperature rise and uniform heating, can also flexibly adjust the temperature curve temperature control, can accurately control the heating process, the heat preservation process (It can be kept for a long time).

The intelligent protection system intelligently protects people and equipment. The industrial touch screen display displays and maintains a communication interface in real time. The power factor is always maintained at 0.95 regardless of the power. The power supply is automatically adjustable and the startup success rate is 100%.

Product Parameters

Model			HGZ160
Operating weight			11.5T
Dimensions((L×W×H)			4950x2680x3340 mm
Engine	Model	Cummins
Engine		Rated power	153 kW/2200 rpm
Generator	Model	UCI274F STF
Generator		Kilo Volt-Ampere	160 kVA
Power supply	Rated power	80 kW(100KW,120KW,160KW Optional)
Power supply		Power scope	10%—100%
Walking system	Model	Track, Automatic hydraulic working mode
		Max. Walking speed	Two-speed, continuously variable CVT 1.9/3km/h
		Max. climbing angle	25°
		Minimum ground clearance	490 mm
		Track width	600 mm
Crane system	Model	Rotary, Automatic arm
		Max. lift weight	3.2t
		Moment of lifting	6t.m
		Rotary	360°

Product Major Component

Medium Frequency Heating Tractor include: Crawler walking Tractor; Medium Frequency Heating power supply; Medium Frequency inductorium; Thermostat; Generator； Crane and Engine.

Product Photos

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
