Fully Automated Crawler Pipeline Heating Equipment With High Speed Heating Tractor

Product Details

Place of Origin: Jiangsu, China

Brand Name: WINCOO

Payment & Shipping Terms

Price: $116,800.00/sets 1-99 sets

Packaging Details: Export package

Supply Ability: 3000 Set/Sets per Month

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            Crawler Pipeline Heating Equipment, Fully Automated Pipeline Heating Equipment, High Speed Pipeline Preheat Treatment


Condition:	New	Warranty:	1 Year
Applicable Industries:	Manufacturing Plant, Construction Works	Weight (KG):	13000
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year	Core Components:	Engine, Gearbox, Motor, Pump
UNIQUE SELLING POINT:	High Operating Efficiency	Product Name:	Sandblasting And Medium Frequency Heating Tractor
Application:	Pipeline Construction	After-sales Service Provided:	VIDEO SUPPORT
Keywords:	Sandblasting And Heating Machine

Condition:	New
Warranty:	1 Year
Applicable Industries:	Manufacturing Plant, Construction Works
Weight (KG):	13000
Showroom Location:	None
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year
Core Components:	Engine, Gearbox, Motor, Pump
UNIQUE SELLING POINT:	High Operating Efficiency
Product Name:	Sandblasting And Medium Frequency Heating Tractor
Application:	Pipeline Construction
After-sales Service Provided:	VIDEO SUPPORT
Keywords:	Sandblasting And Heating Machine

Fully Automated Crawler Pipeline Heating Equipment With High Speed Heating Tractor

WINCOO ENGINEERING CO.,LTD

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

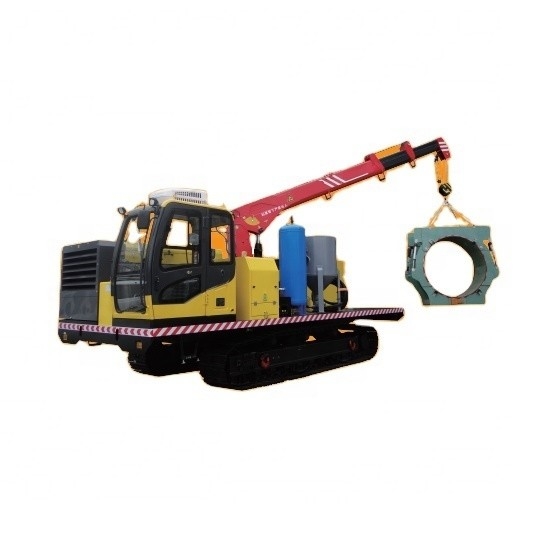

HGFT Series Sandblasting and Medium Frequency Heating Tractor is a special equipment for on-site pipeline anti-corrosion patching construction, which is used for pipeline anti-corrosion patching and automatic rust removal. The machine is suitable for the field (plateau, mountain, desert, scarification, canals and elevations, etc.) work has the ability to walk, spontaneous electric vehicle working ability, provide the compressed air needed for their own operations, have person and compressed air storage function, hand since the integration ability of sand blasting derusting operation parameters can be preset and real-time adjustment.

The machine is an addition to the HG series of mobile power stations with sand blasting machine and medium frequency heating machine.

Product Features

If part of the heating power supply for DSP+IGBT structure of energy efficient products; This product is IGBT or MOSFET inverter, and USES DSP for full digital precise control, the core control strategy is reactance analysis method, in various working conditions can always ensure IGBT work in ZCS switching state, the ability to adapt to the sensor and field working condition is stronger; Various operation and control modes and function parameters can be set so that the product can meet the requirements of various processes; The all-air cooling structure reduces the system loss and completely eliminates the equipment failure from the water system. Perfect restrictive protection measures enable the equipment to maintain continuous and safe operation under various working conditions. High reliability and high redundancy design make the equipment capable of 24 hours uninterrupted operation, and significantly improve the life of the equipment and safe operation ability; Power supply built-in harmonic control and power factor correction circuit measures; Therefore, the product has the remarkable characteristics of high reliability, high technology, high efficiency and energy saving.

Product Parameters

Model			HGFT160
Operating weight			15T
Whole machine size			7307x2800x3179 mm
Performance parameters	Maximum walking speed	4 km/h
		Maximum traction	110 kN
		Gradeability	≦ 30°
Crane size	Maximum rated lifting weight	5 t
		Max moment	10.5t.m
		Reach distance	9.2m
Engine	Model	6BTA5.9-C180
		Power	132 kW
		Speed	2200
Generator	The output power	10-200 Kva
Intermediate frequency heater	Rated power	1 ～ 200 kw (select)
		Voltage	380 AC/V
		Frequency	50 Hz
		Power range	0~100%
Sand blasting system	Sand level	Sa2.5~3
		Suitable diameter	All mm
		Working materials	Steel emery, quartz sand, regular fused alumina

Product Major Component

Sandblasting derusting part is mainly composed of sand blasting device and control system, due to the impact of the abrasive and cutting function, improved mechanical properties on the surface of the pipe, pipe fatigue resistance increase, increase the adhesion and coating on the surface of the pipeline, to extend the durability of the coating on the surface of the clear, impurity, noise and oxide layer at the same time, the media surface coarsening, reduce the residual stress on the surface of the base material, improve the surface hardness of base material.

Product Photos

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
