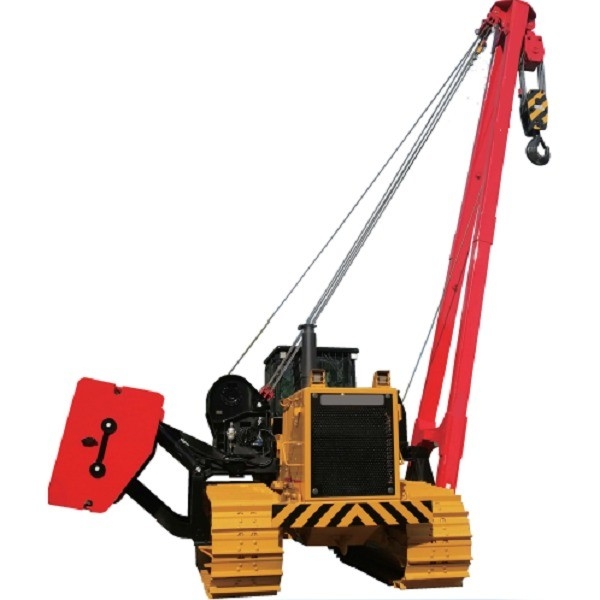

22000KG Weight Professional Pipe Layer Machine For Construction Works

Name: 22000KG Weight Professional Pipe Layer Machine For Construction Works
Brand: WINCOO
SKU: WINCOO
Price: 205 USD
Availability: InStock
Rating: 4.5 (158 reviews)

Product Details

Place of Origin: Jiangsu, China

Brand Name: WINCOO

Payment & Shipping Terms

Price: $205,800.00/sets 1-99 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Professional Crawler Pipe layer, 22000KG Crawler Pipe layer, Construction Pipe Layer Machine


Condition:	New	Warranty:	1 Year
Applicable Industries:	Manufacturing Plant, Construction Works	Weight (KG):	22000
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Motor, Pump
UNIQUE SELLING POINT:	High Operating Efficiency	Product Name:	Pipelayer
Application:	Pipeline Construction Machinery	After-sales Service Provided:	VIDEO SUPPORT

Condition:	New
Warranty:	1 Year
Applicable Industries:	Manufacturing Plant, Construction Works
Weight (KG):	22000
Showroom Location:	None
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Motor, Pump
UNIQUE SELLING POINT:	High Operating Efficiency
Product Name:	Pipelayer
Application:	Pipeline Construction Machinery
After-sales Service Provided:	VIDEO SUPPORT

22000KG Weight Professional Pipe Layer Machine For Construction Works

WINCOO ENGINEERING CO.,LTD

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

HGY pipelayer is mainly used for pipe hoisting operations in pipeline construction, such as pipe transportation, pipe laying, assembly and trenching. The pipelayer chassis is a special hydraulic chassis for developed on the basis of mature excavator chassis technology. The traveling system adopts hydrostatic transmission mode, with small impact on start and stop, and can realize in-situ steering; The lifting system adopts full hydraulic transmission, with stable transmission and good micro motion performance. Compared with the traditional bulldozer chassis pipelayer, it has obvious technical and application advantages.

HGY Pipelayer can adapt to the working environment of - 20 ℃ ~ + 50 ℃, the altitude below 3000m, the environment with less than 5% sand and dust in the air and all kinds of weather such as rain, snow and fog; Be able to operate safely and reliably on a 30 ° ramp.
HGY pipelayer has reasonable design, compact structure, easy dispatch, transfer and transportation, and can meet the
requirements of railway transportation and self-crawling flat trailer transportation. Adapt to the construction site and general road operation.

1, Chassis Ass
2, Lifting Ass
3, Cab Ass
4, Engine Ass
5, Counterweight Ass
6, Hydraulic system Ass

Product Parameters

Model					HGY20	HGY40	HGY70	HGY90
Max.lifting capacity					25t	45.7t	70t	90t
Rated lifting capacity					21.25t	38.25t	59.5t	76.5t
Operating weight(approx)					22t	35t	49t	55t
Shipping outline dimension for main equipment(LWH)					4150×3050×3250 (mm)	4855×3384×3270 (mm)	5630×3400×3540 (mm)	5630×3436×3540 (mm)
Shipping weight for main equipment					21.5t	26t	37.5t	38.9t
Average ground pressure					76.4KPa	85.2KPa	87.3KPa	86.6KPa
Min.ground clearance					480mm	490mm	550mm	550mm
Max.gradeability					25°	25°	25°	25°
Applicable environment					-50ºC ~+65ºC	-50ºC ~+65ºC	-50ºC ~+65ºC	-50ºC ~+65ºC
Engine	Model			SHANGCHAI SV11CB	CUMMINS NT855-C280	CUMMINS NT855-C280	CUMMINS NT855-C280
		Rated power			120KW	169KW	239KW	257KW1850rpm
		Rated rotary speed			1850rpm	2000rpm	2000rpm	2000rpm
Walking system	Operation mode			Joystick	Joystick	Joystick	Joystick
		Theoretical speed	Forward (shift2)	3.29/5.28 km/h	3.6/6.6 km/h	3.6/6.6 km/h	3.6/6.6 km/h
		Theoretical speed		Backward (shift2)	4.28/7.59 km/h	4.3/7.7 km/h	4.4/7.8 km/h	4.4/7.8 km/h
		Length of track on ground			2635mm	3050mm	3620mm	3620mm
		Track width			560mm	660mm	760mm	760mm
		Number of track rollers			7×2	7×2	9×2	9×2
Crane system	Range form			The wire rope luffing form	The wire rope luffing form	The wire rope luffing form	The wire rope luffing form
		Operating mode			The hydraulic control handle	The hydraulic control handle	The hydraulic control handle	The hydraulic control handle
		Crane link	The length of the crane link	6000mm	7500/8500mm	7600/8600mm	8600/9600mm
		Crane link		Max lifting height	4909mm	6100/7050mm	6100/7050mm	7050/9600mm
		The crane link luffing angle			0~85°	0~86°	0~86°	0~86°
		Hook speed(six to eight times)			0~12.0m/min	0~6.2 m/min	0~7.0 m/min	0~7.0 m/min
		Elevating time(four to five times)			25s	20s	32s	40s

Product Features

I. Chassis Assembly Features

1, Adopt hydraulic excavator chassis technology, high-strength pipelayer special chassis, with reliable quality.

2, Three rib or double rib crawler, nine groups of supporting wheels, and the maximum 30° climbing angle.

3, The main pump, slewing motor and traveling motor adopt the German Rexroth brand to ensure the reliable operation of the hydraulic system of the whole vehicle.

4, The main valve adopts full electric control solution, which can operate smoothly and realize accurate optimization.

5, Adopt high-strength connection structure between the walking frame and the vehicle frame to ensure that the whole machine has sufficient stiffness during lifting.

6, With increased gauge design, improving the stability of the whole machine, more suitable for the side loading condition.

7, 9 supporting rollers are distributed on each side, with large bearing capacity, high temperature resistance and adaptability to the harsh working condition.

II. Safe and reliable braking of driving system

1, Adopt hydrostatic transmission mode, with small impact in start and stop, and can realize in-situ steering.
2, When the operator releases the driving lever, the brake of the driving motor is automatically closed to ensure parking safety.
3, Through high-speed and low-speed gear switching, can achieve high-speed movement and low-speed creep.

III. Complete safety devices to ensure lifting safety

1, The electro-hydraulic boom limit device can reliably limit the lifting limit position of the boom, to prevent the accident of pulling and bending the boom.

2, The anti-overwinding device of the hook prevents the hook from rising beyond the limit position, to prevent the hook and steel wire rope from being damaged.

3, The Safe Load Indicator (torque limiter) ensures that the equipment always works within the rated load and ensures the safety of personnel and equipment.

IV. Engine

1, Adopt Cummins engine, equipped with unique PT fuel system and turbocharging.

2, Cummins engine with many obvious advantages,eg. light weight, high power, large torque, low fuel consumption and simple maintenance.

V. Central slewing support mechanism

1, High reliability of central slewing support mechanism.

2, Adopt special reinforced slewing support, which can bear greater torque and load.

VI. Lifting System

1, The lifting system adopts full hydraulic transmission, with stable transmission and good micro motion performance.

2, The luffing winch and winding winch are driven by low-speed high torque motor; the winch is equipped with normally closed brake to ensure reliable self-locking of luffing and winch.

3, The motor oil inlet of luffing winch and winding winch is equipped with high-quality balance valve produced by America SUN company to ensure that there is no free fall under the rated load.

4, Adopt steel wire rope luffing, and the starting and stopping impact can be reduced through the use of multiple rate pulley block, with better micro control.

VII. Simple and convenient operation

1, The whole machine adopts the fully electric control solution to optimize the lifting and rotation from multiple angles, with fast start-up response, light, flexible and reliable operation.

2, The lifting system control the boom extension and hook lifting action through a universal electric control pilot handle, Italy HC brand.

3, The platform rotation is controlled by an electric pilot handle, flexible and reliable.

4, The perfect combination of electronic pilot control and hydraulic transmission, with two control modes of fast and micro motion, makes the lifting operation have superior micro motion, and the micro motion accuracy is 2mm under good condition.

VIII. Strong adapt abilit

Be able to work in the environment of - 20 ℃ ~ + 50 ℃, altitude below 3000m and high dust.

IX. Humanization of operation space

1, Operation cab with spacious space and wide vision; adopt hydraulic shock-absorbing and suspended seats; more comfortable driving.

2, The hydraulic system adopts pilot control mode, stable and reliable.

3, Equipped with air conditioning (Air cooler)

Product Photos

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
