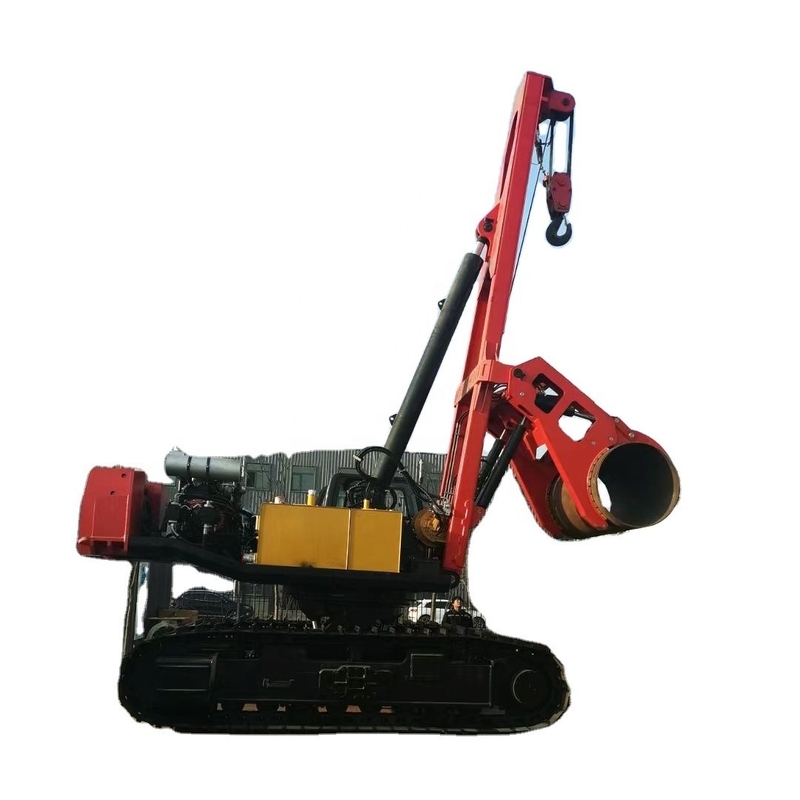

Energy Saving Mountain Pipe Laying Machine For Field Construction

Product Details

Place of Origin: Jiangsu, China

Brand Name: WINCOO

Payment & Shipping Terms

Price: $186,540.00/sets 1-99 sets

Packaging Details: Export package

Supply Ability: 3000 Set/Sets per Month

Get Best Price
Highlight:

Mountain Pipe Laying Machine

Condition:
New
Warranty:
1 Year
Applicable Industries:
Manufacturing Plant, Construction Works
Weight (KG):
22000
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Motor, Pump
UNIQUE SELLING POINT:
High Operating Efficiency
Product Name:
Mountain Pipe Laying Machine
Application:
Pipeline Construction Machinery
After-sales Service Provided:
VIDEO SUPPORT
Condition:
New
Warranty:
1 Year
Applicable Industries:
Manufacturing Plant, Construction Works
Weight (KG):
22000
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Motor, Pump
UNIQUE SELLING POINT:
High Operating Efficiency
Product Name:
Mountain Pipe Laying Machine
Application:
Pipeline Construction Machinery
After-sales Service Provided:
VIDEO SUPPORT
Energy Saving Mountain Pipe Laying Machine For Field Construction



WINCOO ENGINEERING CO.,LTD
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.
Energy Saving Mountain Pipe Laying Machine For Field Construction 0

Mountain Pipelayer adopts 360 ° rotating chassis equipped with adjustable flat, it is mainly used for mountain cloth tube in the pipeline construction and team work.
This equipment can adapt to -50 ℃ ~ 65 ℃ environment temperature, under 3600 m altitude, containing less than 5% of the dust in the air environment, as well as rain, snow, fog and other kinds of weather. In 30 ° slopes of safe and reliable operation. The machine is reasonable in design, compact in structure and easy to dispatch, transfer and transport. Suitable for construction site and general road work.
Energy Saving Mountain Pipe Laying Machine For Field Construction 1
Product Features

1. Power system 360° full rotary hydraulic drive chassis; Imported cummins engine; Double-pump double-loop high pressure variable, cross power regulation, negative flow control; The hydraulic walking motor is usually closed, and the ramp station is more stable. Mountain high tooth crawler, no load maximum climbing Angle of 30 °.
2. Pipe clamping system Two degrees of freedom steel pipe
clamp, patented products mature and stable. Hydraulic lock valve mature application, clamping cylinder zero leakage.
3. Lifting system A-shape high strength steel boom, reasonable structure, durable. Oil cylinder type variable - amplitude mechanism, mountain construction is more safe.
4. Platform leveling system Uniaxial bidirectional leveling mechanism, adjusting range: ±18 °.
5. Electrical system PLC intelligent control, full posture to prevent overloading, tilting. The application of high-tech image and radar system makes the operation more secure.

Product Parameters
Model


BGY60
BGY40
Maximum lifting capacity


60T
40T
Operating weight


43.5t
32t
Dimensions of main engine transportation (length x width x height)


12700×3450×3650mm
11360×3225×3512mm
Main engine transport quality


43.5t
32t
Average ground pressure


82.5kPa
68kPa
Ability to clip pipe


φ813-1219mm
φ508-813mm
Maximum climbing ability


30°

Apply to the environment


Meet to 50 ℃ ~ 65 ℃ ambient temperature, altitude 3600 m below the environment

Engine
Model

M11-C315
C8.3-C

Rated power

235KW
205KW

Rated speed

1800rpm
2000rpm
Walking system
Chassis

Turning a chassis


Mode of operation

A joystick


Speed
Low speed
2.9km/h
3.0km/h


High speed
6.37km/h
5.1km/h

Track ground length

4235mm
3780mm

Track center

2750mm
2580mm

Track width

610mm


Number of supporting wheels

8×2

Lifting system
Range form

Oil cylinder luffing


Mode of operation

The hydraulic control handle


Derrick
Boom length
7821mm
7000mm


Maximum lifting height
7600mm
6750mm

Swing Angle of boom

0~86°


Hook speed (8 times)

0~12m/min
0~15m/min

Variation time (5 times)

26s
16s

Rotary speed

9
11
Product Photos
