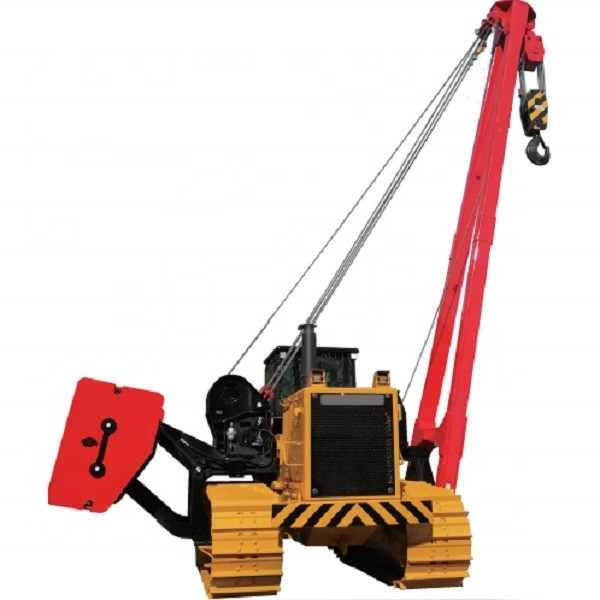

Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction

Product Details

Place of Origin: Jiangsu, China

Brand Name: WINCOO

Payment & Shipping Terms

Price: $126,500.00/sets 1-99 sets

Packaging Details: Export package

Supply Ability: 3000 Set/Sets per Month

Get Best Price
Highlight:

Belt Move Pipe Laying Machine

,

22000 KG Weight Pipe Laying Machine

,

Heavy Duty Pipeline Laying Equipment

Condition:
New
Warranty:
1 Year
Applicable Industries:
Manufacturing Plant, Construction Works
Weight (KG):
22000
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Motor, Pump
UNIQUE SELLING POINT:
High Operating Efficiency
Product Name:
Conveyor Track Shifter
Application:
Pipeline Construction Machinery
After-sales Service Provided:
VIDEO SUPPORT
Key Word:
Belt Move Heavy Machine
Condition:
New
Warranty:
1 Year
Applicable Industries:
Manufacturing Plant, Construction Works
Weight (KG):
22000
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Motor, Pump
UNIQUE SELLING POINT:
High Operating Efficiency
Product Name:
Conveyor Track Shifter
Application:
Pipeline Construction Machinery
After-sales Service Provided:
VIDEO SUPPORT
Key Word:
Belt Move Heavy Machine
Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction



WINCOO ENGINEERING CO.,LTD
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.
Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction 0


HGS70 Belt move heavy machine is designed for shifting belt conveyor on working site of strip mine, it can shift maximum 2500mm belt conveyor, you can shift the belt conveyor by operating the hydraulic shifting head in driver’s cabin, without manual intervention, which can greatly improve belt shifting efficiency.
Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction 1
Product Features


1. Fast moving speed.
2. Strong lifting capacity and stretchable weight.
3. Complete safety devices to ensure the safety of the moving and setting process.
4. 2 cooperative operations can improve efficiency.


Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction 2
Standard Overall size
W1-Caterpillar track
2380mm

W2-Outside edge dimension of track
3140mm

W3-Transport width
3350mm

W4-Shift head distance (optional)
1805mm

L1-Grounding length
3620mm

L2-The whole machine length
5630mm

L3-Boom length (optional)
4500mm

H1-Height (suggested)
150mm

H2-Top bridge height
3540mm

H3-Overall height (standard boom)
4835mm
Product Parameters
Model

PYS70-2
Engine type

 Commins NTA855-C360
Rated engine power/speed

235/2000 kW/rpm
Machine weight

49T
Overall dimensions

5780×6850×3950 mm
Maximum shift weight

16T
Maximum lift

300 mm
Set the maximum shift distance

1000 mm
Suitable for rail specification

50 ~ 75 kg/m(GB 2585)
Walking speed
Forward 1 block
3.6 km/h

Forward 2 block
6.6 km/h

Forward 3 block
11.5 km/h

Back 1 block
4.4 km/h

Back 2 block
7.8 km/h

Back 3 block
13.5 km/h
Mode of operation

Hydraulic shift head, handle operation
Shift head clamp indication

The optional
Moving head surveillance camera

The optional
Switchable dozer

320 horsepower dozer
Product Photos
Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction 3
Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction 4
Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction 5
Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction 6
Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction 7
Belt Move 22000 KG Weight Pipe Laying Machine For Heavy Duty Construction 8
