High Efficiency Pipe Layer Equipment For Mountain Pipeline Construction
Basic Properties
Place of Origin:
Jiangsu, China
Brand Name:
WINCOO
Trading Properties
Price:
$186,540.00/sets 1-99 sets
Supply Ability:
3000 Set/Sets per Month
Product Summary
WINCOO ENGINEERING CO.,LTD Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial ...
Product Details
Highlight:
High Efficiency Pipe Layer Equipment
,Construction Pipe Layer Equipment
,Mountain Pipeline Construction Crawler Pipe layer
Condition:
New
Warranty:
1 Year
Applicable Industries:
Manufacturing Plant, Construction Works
Weight (KG):
22000
Showroom Location:
None
Video Outgoing-Inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Motor, Pump
UNIQUE SELLING POINT:
High Operating Efficiency
Product Name:
Mountain Pipe Laying Machine
Application:
Pipeline Construction Machinery
After-Sales Service Provided:
VIDEO SUPPORT
Product Description
WINCOO ENGINEERING CO.,LTD
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

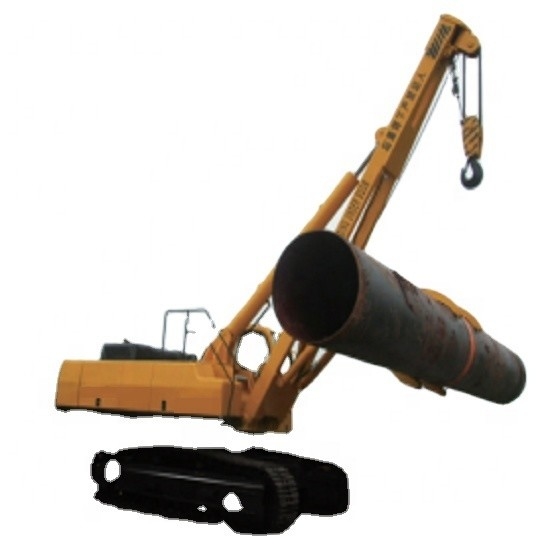

Mountain Pipelayer adopts 360 ° rotating chassis equipped with adjustable flat, it is mainly used for mountain cloth tube in the pipeline construction and team work.
This equipment can adapt to -50 ℃ ~ 65 ℃ environment temperature, under 3600 m altitude, containing less than 5% of the dust in the air environment, as well as rain, snow, fog and other kinds of weather. In 30 ° slopes of safe and reliable operation. The machine is reasonable in design, compact in structure and easy to dispatch, transfer and transport. Suitable for construction site and general road work.
Product Features
1. Power system 360° full rotary hydraulic drive chassis; Imported cummins engine; Double-pump double-loop high pressure variable, cross power regulation, negative flow control; The hydraulic walking motor is usually closed, and the ramp station is more stable. Mountain high tooth crawler, no load maximum climbing Angle of 30 °.
2. Pipe clamping system Two degrees of freedom steel pipe
clamp, patented products mature and stable. Hydraulic lock valve mature application, clamping cylinder zero leakage.
clamp, patented products mature and stable. Hydraulic lock valve mature application, clamping cylinder zero leakage.
3. Lifting system A-shape high strength steel boom, reasonable structure, durable. Oil cylinder type variable - amplitude mechanism, mountain construction is more safe.
4. Platform leveling system Uniaxial bidirectional leveling mechanism, adjusting range: ±18 °.
5. Electrical system PLC intelligent control, full posture to prevent overloading, tilting. The application of high-tech image and radar system makes the operation more secure.
Product Parameters
|
Model
|
|
|
BGY60
|
BGY40
|
|||
|
Maximum lifting capacity
|
|
|
60T
|
40T
|
|||
|
Operating weight
|
|
|
43.5t
|
32t
|
|||
|
Dimensions of main engine transportation (length x width x height)
|
|
|
12700×3450×3650mm
|
11360×3225×3512mm
|
|||
|
Main engine transport quality
|
|
|
43.5t
|
32t
|
|||
|
Average ground pressure
|
|
|
82.5kPa
|
68kPa
|
|||
|
Ability to clip pipe
|
|
|
φ813-1219mm
|
φ508-813mm
|
|||
|
Maximum climbing ability
|
|
|
30°
|
|
|||
|
Apply to the environment
|
|
|
Meet to 50 ℃ ~ 65 ℃ ambient temperature, altitude 3600 m below the environment
|
|
|||
|
Engine
|
Model
|
|
M11-C315
|
C8.3-C
|
|||
|
|
Rated power
|
|
235KW
|
205KW
|
|||
|
|
Rated speed
|
|
1800rpm
|
2000rpm
|
|||
|
Walking system
|
Chassis
|
|
Turning a chassis
|
|
|||
|
|
Mode of operation
|
|
A joystick
|
|
|||
|
|
Speed
|
Low speed
|
2.9km/h
|
3.0km/h
|
|||
|
|
|
High speed
|
6.37km/h
|
5.1km/h
|
|||
|
|
Track ground length
|
|
4235mm
|
3780mm
|
|||
|
|
Track center
|
|
2750mm
|
2580mm
|
|||
|
|
Track width
|
|
610mm
|
|
|||
|
|
Number of supporting wheels
|
|
8×2
|
|
|||
|
Lifting system
|
Range form
|
|
Oil cylinder luffing
|
|
|||
|
|
Mode of operation
|
|
The hydraulic control handle
|
|
|||
|
|
Derrick
|
Boom length
|
7821mm
|
7000mm
|
|||
|
|
|
Maximum lifting height
|
7600mm
|
6750mm
|
|||
|
|
Swing Angle of boom
|
|
0~86°
|
|
|||
|
|
Hook speed (8 times)
|
|
0~12m/min
|
0~15m/min
|
|||
|
|
Variation time (5 times)
|
|
26s
|
16s
|
|||
|
|
Rotary speed
|
|
9
|
11
|
|||
Product Photos
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
